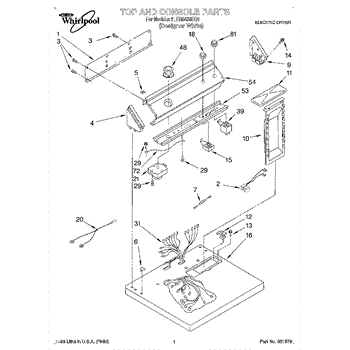

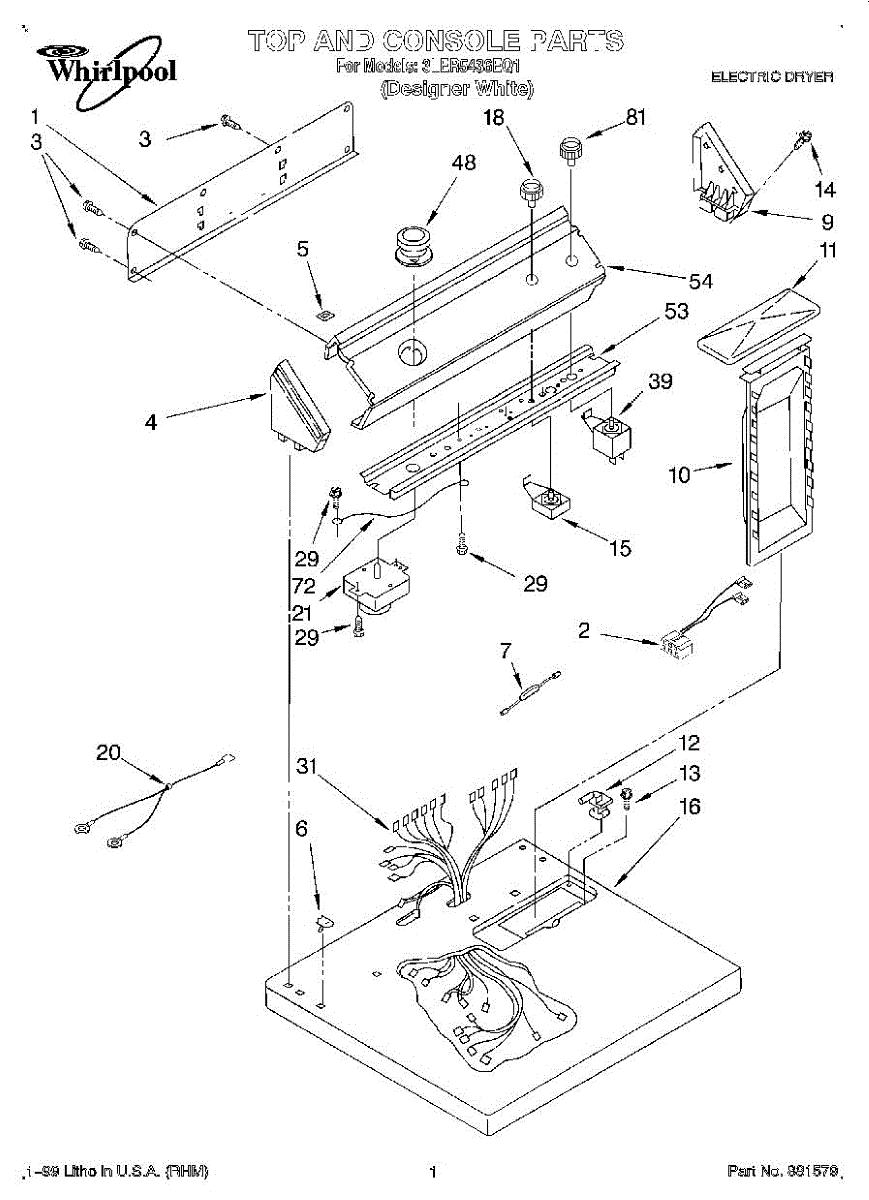

Parts for Whirlpool 3LER5436EQ1: 01 - Section Parts

Temperature jumper wire for dryers. Connects temperature sensors and controls. Replace if wire is damaged, frayed, corroded, or has broken connectors.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

White. Includes both left and right hand side.

The dryer grounding clip is a small metal fastener that maintains a secure electrical ground connection between components inside your dryer. A proper ground is essential for safe operation and helps protect against electrical shock or appliance damage. Replace this part if it is bent, corroded, or missing, especially if you are experiencing intermittent electrical issues or completing a repair that requires re-grounding internal parts.

Push-in.

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

White. Includes both left and right hand side.

Captures lint and debris during drying to prevent clogs and fire hazards. Replace when torn, worn, or no longer catching lint effectively. Verify fit.

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Right handed Hinge

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the control console/control panel to the cabinet or top panel
• Helps maintain alignment and reduces vibration and rattling
• Replaces a missing, stripped, or rusty original screw
• Common fix for a loose or lifting console/panel

• 1 screw

• Disconnect power before service; if applicable, shut off gas/water
• Support the console to avoid straining wiring harnesses
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Use the correct driver style for your model's hardware

Fix an unresponsive dryer button with this push-button switch replacement. Restores reliable front-panel operation when buttons don't register commands.

White

Dryer won't advance through cycles or stops mid-cycle? This mechanical timer restores timed control and cycle advancement for proper load completion.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

The Start Switch is an OEM replacement part for Whirlpool dryers. It is an electronic component responsible for initiating the heating elements and tumble cycles upon user command from the control panel.

Causes of a bad start switch involve general wear over extended use. Failure of the internal conducting surfaces interrupts circuit activation as well.

Symptoms of a bad start switch include:

• Heating elements or tumble cycles that will not engage properly
• Dryer fails to operate or stops mid-cycle unexpectedly
• Control panel appears non-responsive to selections
• Error codes related to ignition or power delivery faults

Note: This dryer push-to-start switch has 2 terminals.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

White timer knob that fits onto your dryer's timer shaft. Replace if yours is cracked, broken, worn, or missing to restore cycle selection control.

Color: White.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
