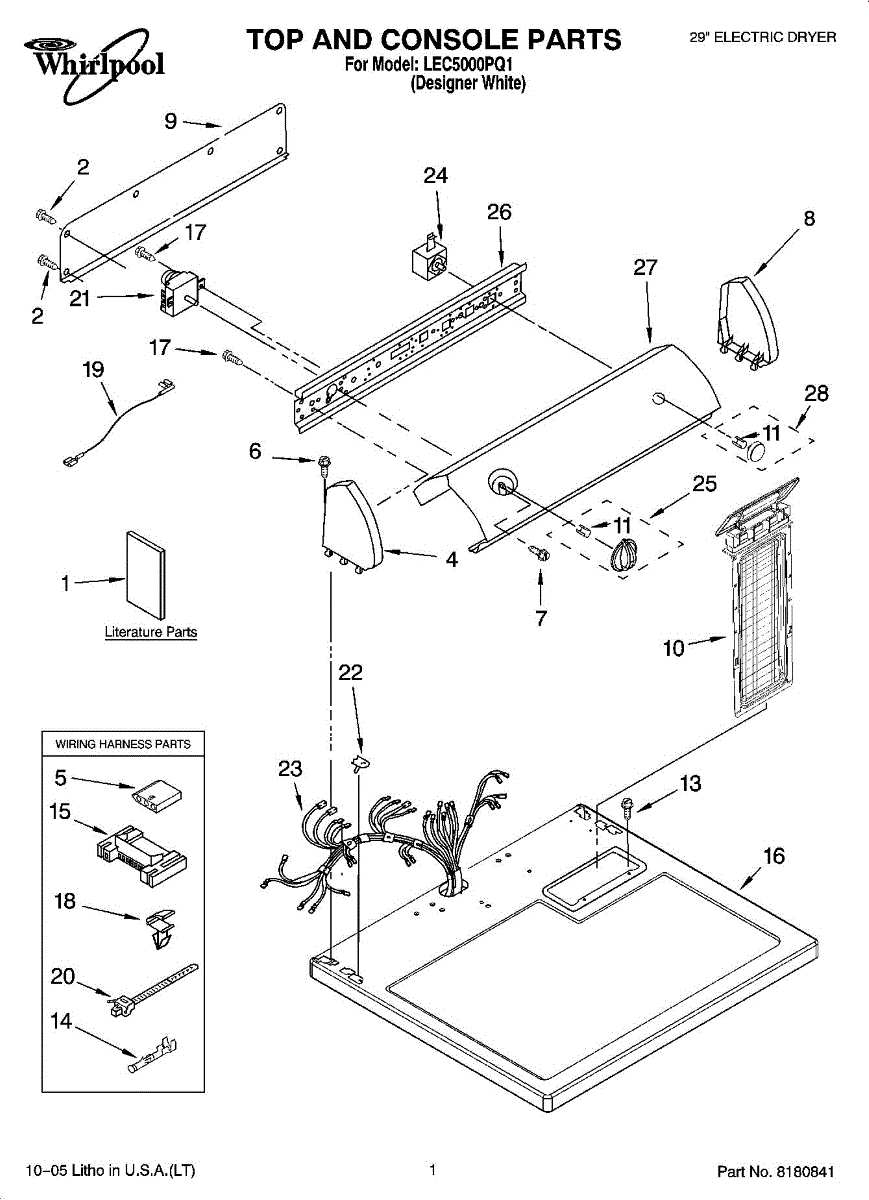

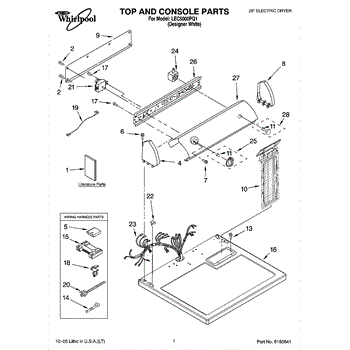

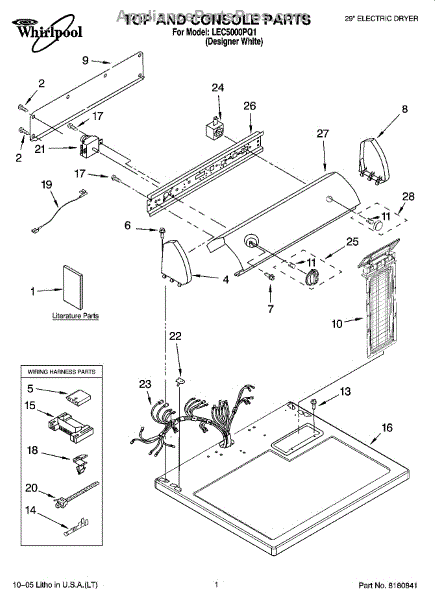

Parts for Whirlpool LEC5000PQ1: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This console screw secures the control console to the appliance cabinet or top, keeping the panel tight and aligned. Replace a missing or damaged screw to stop panel wobble and rattling and maintain a snug, stable fit. What it does:

• Fastens the

This is a replacement 8-18 x 7/32 machine screw used to secure panels and small components in compatible Whirlpool appliances. It restores proper fastening where a screw is missing, stripped, or damaged. What it does:

• Secures panels, trim pieces

Rear panel for dryers. Covers the back of the cabinet. Replace if cracked, damaged, or missing to restore the outer appearance and structure.

Dryer lint screen captures lint and debris to protect the blower system. Replace when torn, damaged, or handle breaks. Confirm fit by model number.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

For mating terminal use [AP31136300].

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• O

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts o

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Dryer won't shut off or advance through cycles? A faulty timer prevents automatic shutoff and cycle progression. Moderate DIY repair restores normal operation.

Push-in.

Dryer not starting or controls unresponsive? This wire harness connects electrical components. Moderate DIY repair—requires panel removal.

Dryer won't start when button pressed? The push to start switch sends the signal to begin the cycle. Simple 10-minute fix with basic tools.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit i

This control panel is the user interface assembly that lets you select cycles, adjust settings, and view status. Replacing a damaged or unresponsive panel restores normal control and display feedback for your appliance. What it does:

• Houses the touchpads/buttons and display used to enter programs and settings
• Sends user commands to the appliance control board so cycles start and run
• Restores visible status indicators and error codes when the display or LEDs are blank or garbled
• Replaces cracked, worn, or unresponsive keypads that no longer register presses

• Disconnect power to the appliance before servicing to avoid shock
• Handle the panel and display carefully to avoid damaging the lens or ribbon cables
• Reconnect ribbon cables securely before restoring power

White push-to-start control knob for dryers. Replaces worn, cracked, faded, or missing knobs to restore easy push-button cycle activation.
