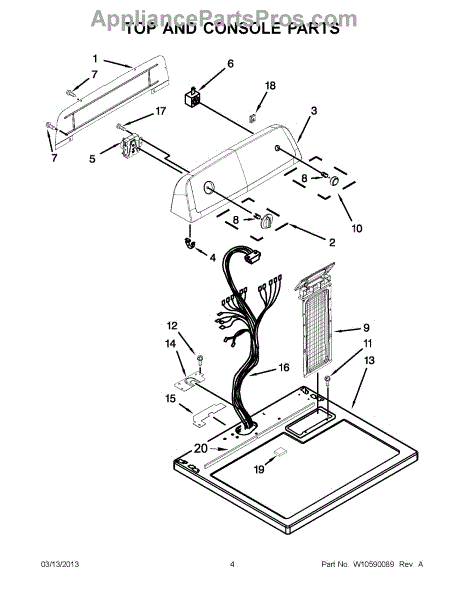

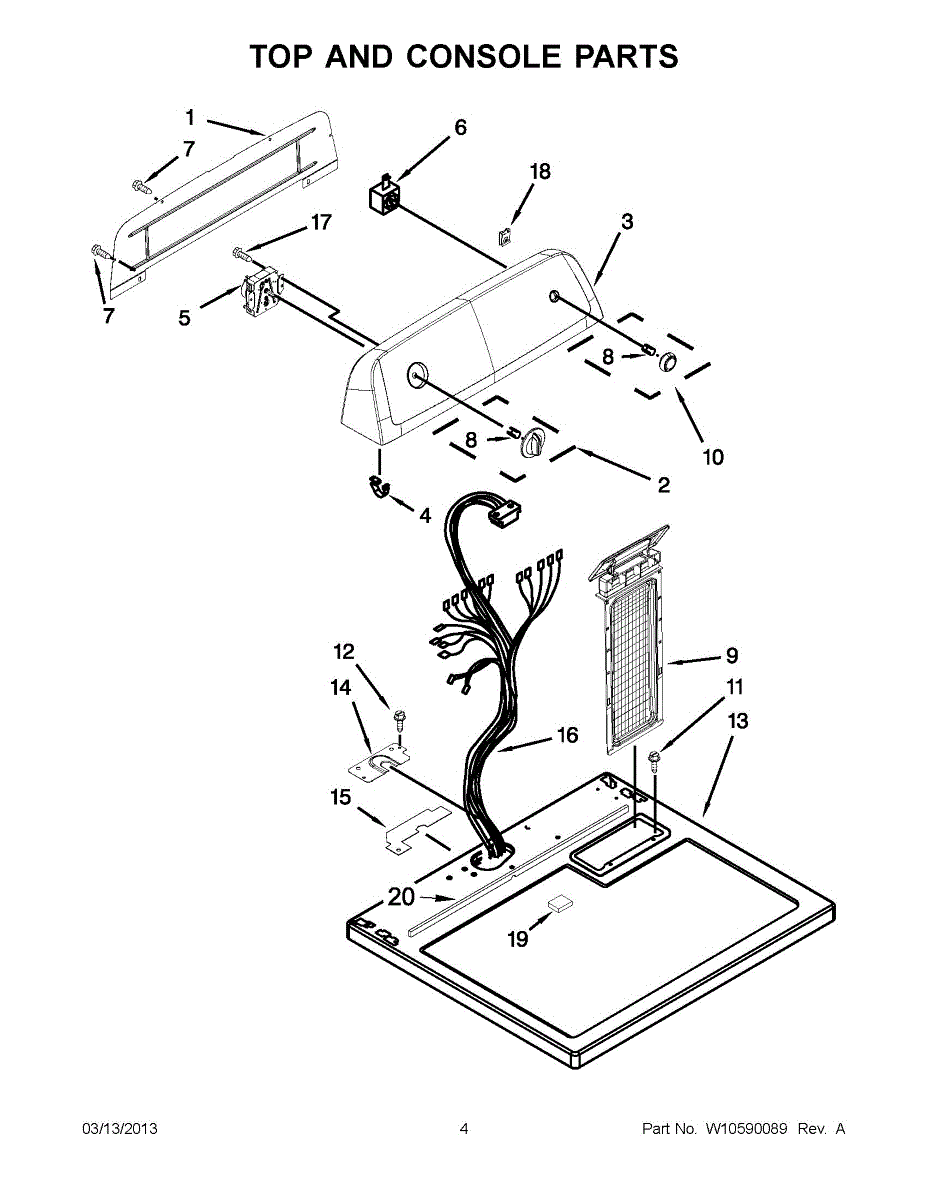

Parts for Whirlpool RED4640YQ1: 02 - Top And Console Parts

This rear panel replaces the dryer's back bulkhead to restore the appliance's structural enclosure and help protect internal components from dust and debris. It provides a clean mounting surface for internal parts and improves cabinet integrity. What it does:

• Replaces a damaged, dented, or corroded rear cabinet panel
• Protects internal wiring, ducts, and components from external debris
• Restores proper mounting surfaces for internal assemblies and fasteners
• Helps maintain correct airflow paths by sealing the dryer cabinet

• One rear panel/back bulkhead

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires removing the dryer cabinet and several fasteners; keep hardware for reuse unless damaged
• Inspect and replace any worn gaskets, seals, or mounting clips while cabinet is open

The Knob is an OEM replacement part for Whirlpool washers and dryers. The control knob lets you control cycle settings. Remove the knob by pulling it straight off its post.

Causes of a bad knob can include wear and tear over time resulting in loose or unstable function, cracks or chips in the plastic housing, or damage due to impact or abuse during removal from the post.

Symptoms of a bad knob include:

• Difficulty rotating or selecting settings
• Settings that do not stay in place after selection
• Cracked or broken knob housing
• Knob constantly moving out of the desired setting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

If your dryer won't start or cycle buttons don't respond, the control panel may need replacement. This part houses the interface controls for models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Dryer not heating or won't stop running? A faulty timer may be the cause. This control switch manages cycle timing and functions. DIY repair.

The Push to Start Switch is an OEM replacement part for Whirlpool dryers. Located on the control panel, it allows the user to initiate the drying cycle with the push of a button. This switch is designed to withstand the repetitive motions of starting countless loads over the dryer's lifespan.

Causes can be gradual wear of internal components like contact pads from activations, or moisture intrusion corroding circuit pathways over time.

Symptoms of a faulty push-to-start switch include:

• The dryer failing to start even when powered on
• Inconsistent or intermittent operation of the start button
• The dryer starting unintentionally without input

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Secures control knobs to the panel on washers and dryers. Replace if the clip is broken, missing, or worn, causing knobs to fall off or sit loose.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

Push-to-turn control knob for dryer settings. Replaces cracked, stripped, or missing knobs. Restores secure grip and accurate selection on control shaft.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Main top panel assembly that forms the finished top surface of your dryer. Replace if cracked, discolored, damaged, or worn to restore appearance.

Wire harness for dryers. Connects electrical components throughout the dryer cabinet. Replace if wires are frayed, connections are damaged, or harness is broken.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.

This replacement refrigerator door gasket seals the door to help keep cold air in and improve temperature stability. It restores the sealing surface so the appliance can cool more efficiently and reduce moisture buildup. What it does

• Replaces a worn, torn, or warped door seal to restore an airtight fit
• Helps prevent warm air leaks that can cause temperature fluctuations
• Reduces frost and condensation buildup around the door opening
• Can improve energy efficiency when the door closes properly

• Disconnect power to the appliance or unplug the refrigerator before beginning work
• Remove the old gasket by loosening retainer screws or pulling out the retainer track as applicable; compare new gasket to ensure correct orientation
• Seat the new gasket evenly into the retainer channel, starting at the top corners and working around; tighten retainers if used
• Allow the gasket to form to the door edge; avoid sharp bends or creases during installation
