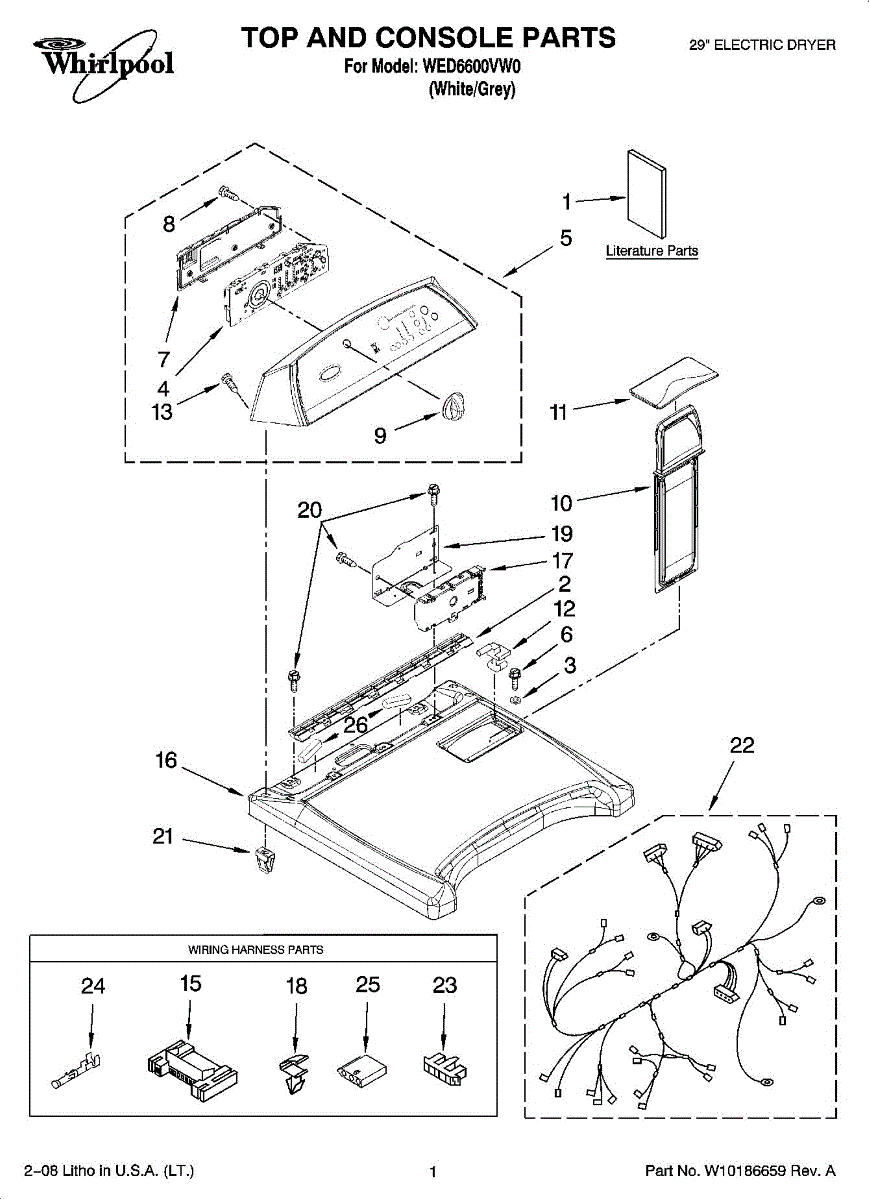

Parts for Whirlpool WED6600VW0: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Screw for control panel.

Traps lint and debris during drying to maintain airflow and prevent clogs. Replace when handle breaks or screen tears. Verify fit with your model number.

Right handed Hinge

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Replacement mounting screw for dryer assembly. Used to secure internal components and panels. Order a new screw if original is stripped, lost, or damaged.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Secures dryer drum components and prevents rattling. Replace if broken or missing to restore quiet operation. Verify fit with your model number.

Wire harness assembly for dryers. Connects electrical components within the control panel or cabinet. Replace if wires are frayed, damaged, or connectors are broken.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use [AP31136300].
