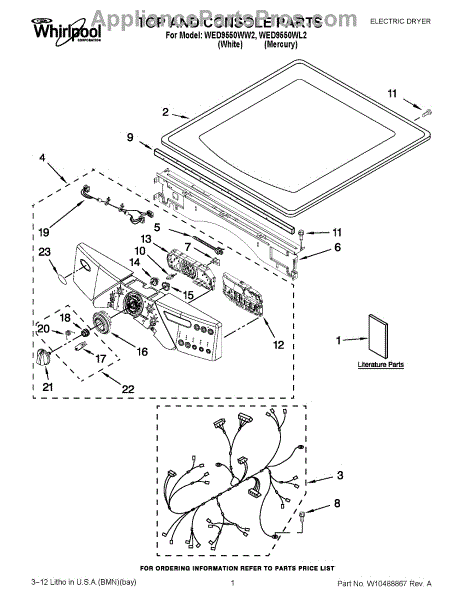

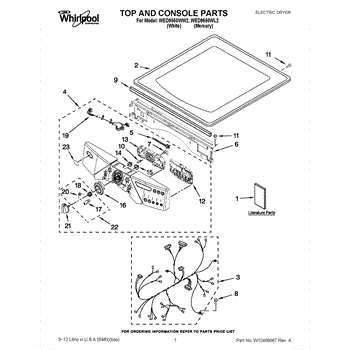

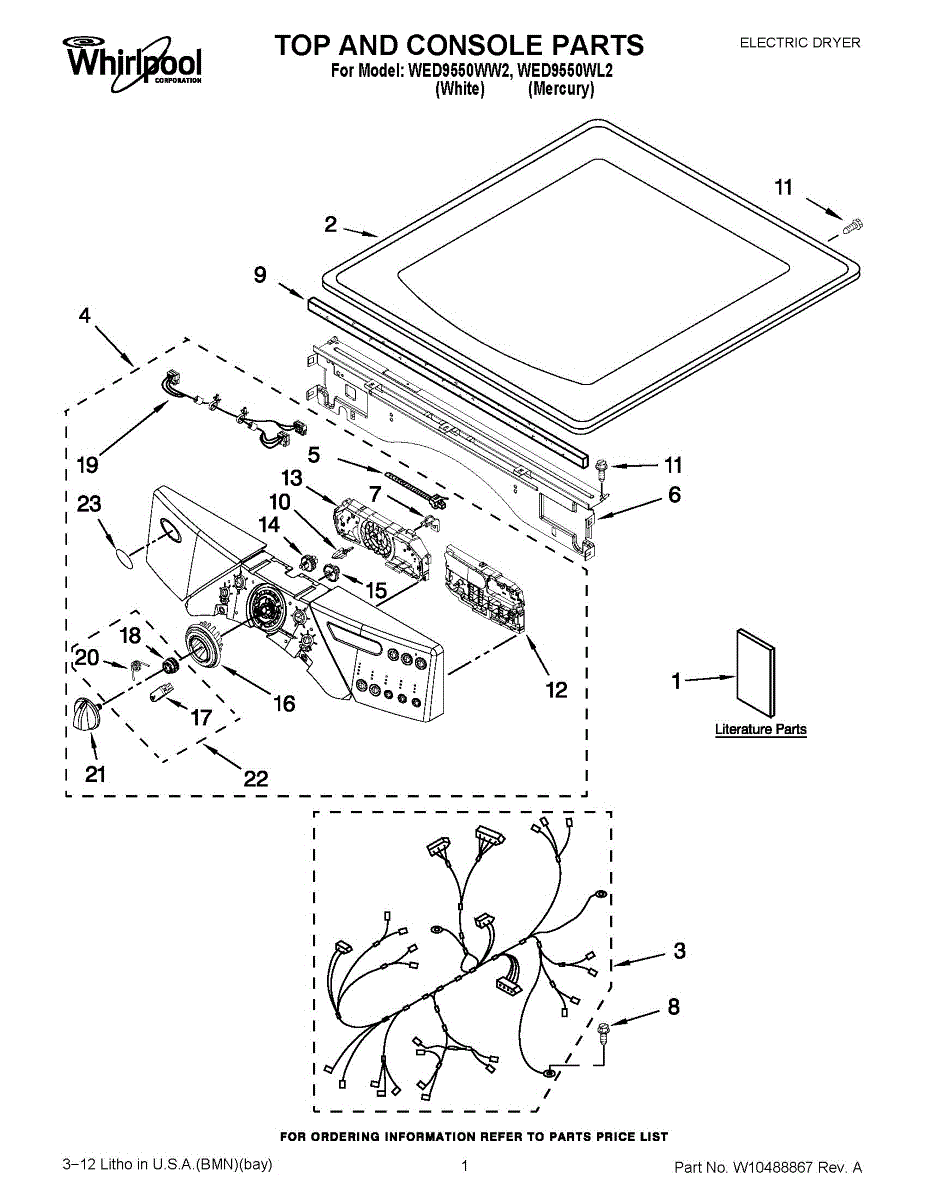

Parts for Whirlpool WED9550WL2: 01 - Top And Console Parts

A factory-style wire harness assembly that routes power and signals between components to restore reliable electrical connections. Replaces damaged or frayed wiring to help fix intermittent operation, no-power issues, or control faults. What it does

• Delivers power and control signals between major components so circuits function as designed.
• Replaces broken, melted, or corroded wiring that can cause intermittent operation or component failure.
• Helps resolve symptoms such as no power to modules, controls that don't respond, or appliances that start and stop unexpectedly.
• Provides factory-style connectors for a direct-fit replacement when the original harness is defective.

• One complete wire harness assembly as shown.

• Disconnect power (unplug appliance or shut off breaker) before starting any repair.
• Route wires and secure connectors exactly as the original to avoid pinching or heat exposure.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This electronic control board replaces the appliance's primary control module to restore responsive controls and reliable cycle operation. It provides the logic and connections that manage functions, timers and user inputs. What it does:

• Interprets user commands and sends signals to drive motors, valves, heaters and other components.
• Restores normal operation when the appliance is unresponsive, shows a blank or blinking display, or fails to start cycles.
• Helps resolve intermittent or incorrect cycle behavior caused by a failed control board.
• Stops error codes or lockouts that originate from a faulty electronic control.

• One electronic control board

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle the board by the edges and avoid static discharge; consider ESD protection.
• Verify the part number on the old board matches before installation.

This small retaining ring secures internal components in place to maintain proper alignment and motion. It helps prevent parts from slipping or shifting, reducing noise and wear for reliable appliance operation. What it does:

• Holds shafts, bearings or assemblies in position to prevent movement
• Stops components from slipping under load or vibration
• Helps reduce rubbing, grinding or rattling noises caused by loose parts
• Maintains proper clearances for smooth mechanical operation

• One retaining ring

• Disconnect power (and water, if applicable) before starting repairs
• Use proper snap-ring/retaining tools to remove and install without damage
• Inspect mating components for wear or damage and replace if necessary

This wire harness routes electrical power and signals between components so the appliance's controls and motors operate correctly. It replaces a damaged or worn connector set to restore reliable electrical connections. What it does:

• Provides the factory wiring connection between control, motor, switches and sensors
• Delivers power and signal paths so control boards and components operate
• Can fix symptoms such as intermittent operation, components that won't receive power, or appliances that fail to start
• Prevents shorting or poor contacts caused by frayed or corroded wires

• Disconnect all power before starting any repair to avoid shock or injury
• Take photos of existing routing and connector positions to ensure correct reinstallation
• Route and secure the harness away from moving parts and heat sources; use existing clips and ties
• If connectors are damaged or sockets are corroded, replace or repair those components rather than forcing connections

This control knob replaces a worn or broken range/dryer control knob to restore reliable selection and adjustment of settings. It provides a firm grip and clear pointer for accurate control of the appliance functions. What it does

• Turns control shafts to select temperature, cycle, or power settings
• Restores a secure grip when the original knob is cracked or loose
• Helps eliminate intermittent or inaccurate user input caused by damaged controls
• Works with the matching splined shaft style for a snug fit

• One control knob

• Pull the old knob straight off the control shaft; align the knob's splines and push the new knob on until fully seated
• If the knob is tight, use steady pressure—do not hammer or force, which can damage the shaft
• Disconnect power to the appliance before servicing electronic control areas and follow all safety guidelines

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.
