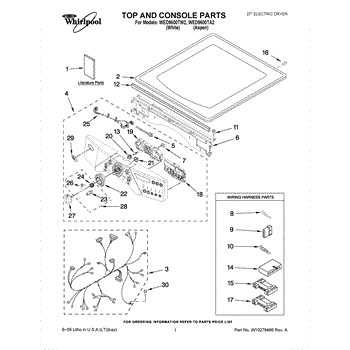

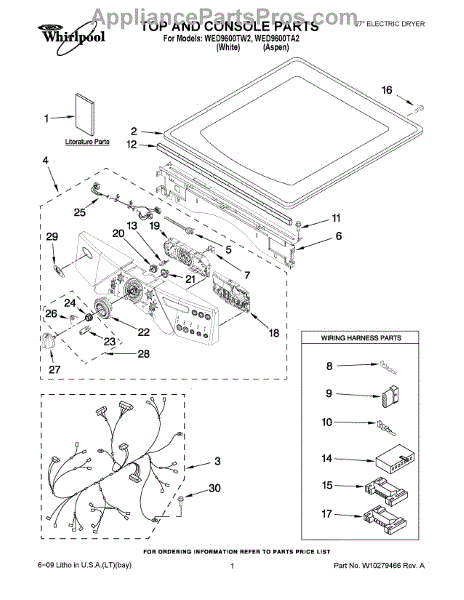

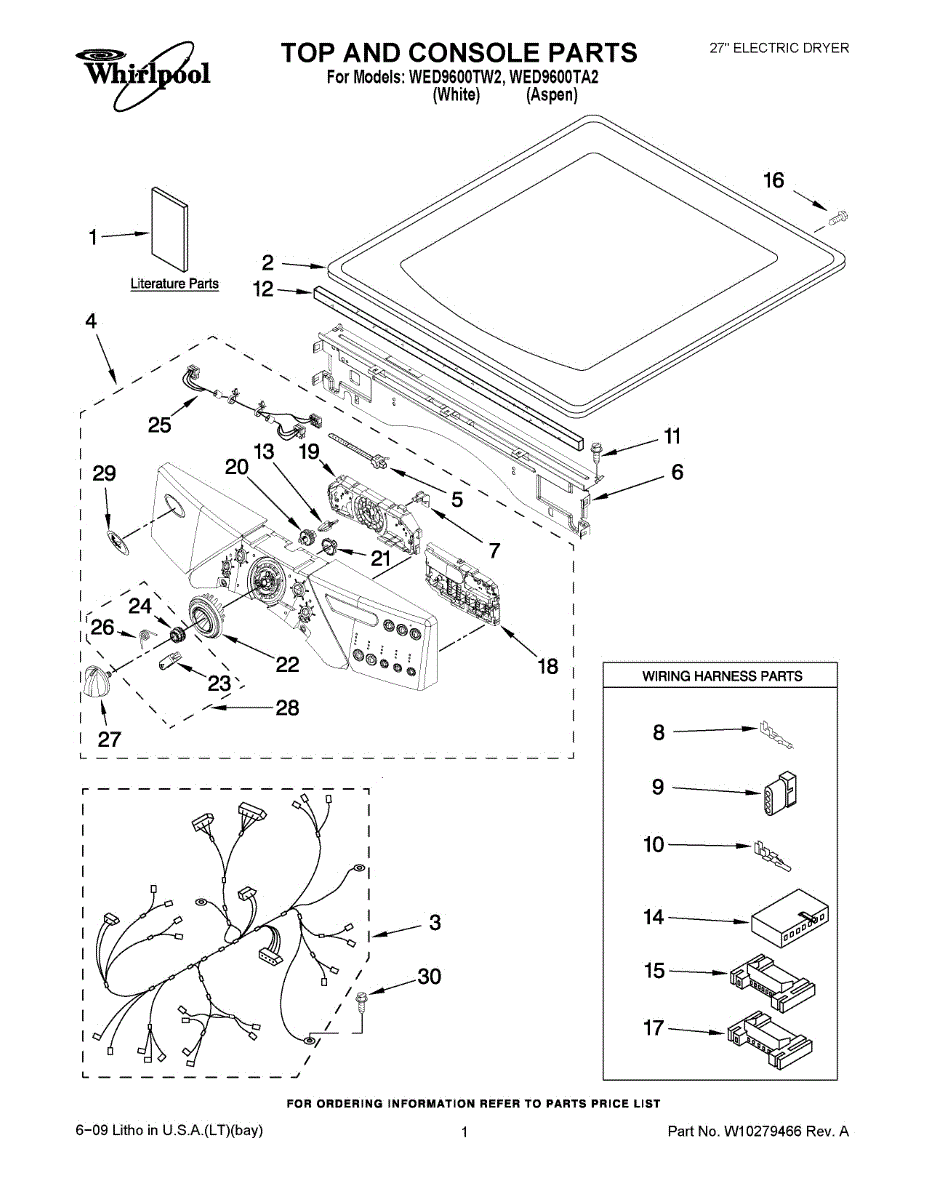

Parts for Whirlpool WED9600TW2: 01 - Top And Console Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

This wire harness routes electrical power and signals between components so the appliance's controls and motors operate correctly. It replaces a damaged or worn connector set to restore reliable electrical connections. What it does:

• Provides the factory wiring connection between control, motor, switches and sensors
• Delivers power and signal paths so control boards and components operate
• Can fix symptoms such as intermittent operation, components that won't receive power, or appliances that fail to start
• Prevents shorting or poor contacts caused by frayed or corroded wires

• Disconnect all power before starting any repair to avoid shock or injury
• Take photos of existing routing and connector positions to ensure correct reinstallation
• Route and secure the harness away from moving parts and heat sources; use existing clips and ties
• If connectors are damaged or sockets are corroded, replace or repair those components rather than forcing connections

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed
