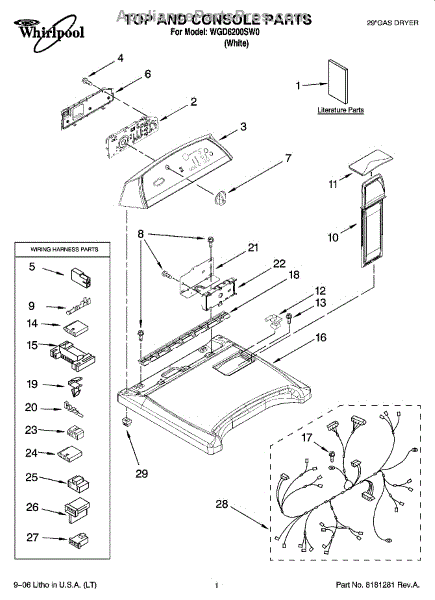

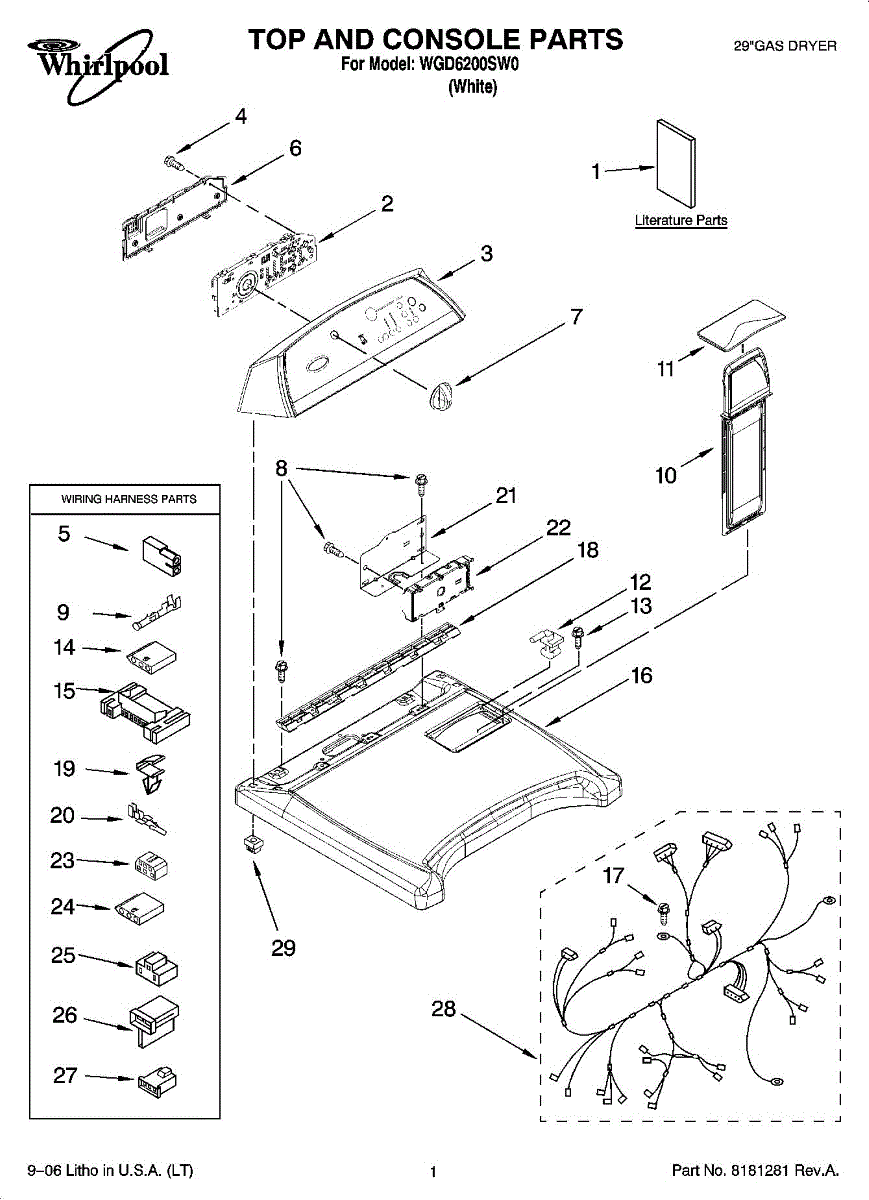

Parts for Whirlpool WGD6200SW0: 01 - Top And Console Parts

Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Screw for control panel.

This is a plastic rear cover that protects the user interface and control actuator assembly on the dryer's control panel. It shields the wiring and electronic components behind the control board from dust and damage. Replace this cover if it is cracked, broken, or missing, which can leave sensitive control wiring exposed.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

For mating terminal use [AP31136300].

Traps lint and debris during drying to maintain airflow and prevent clogs. Replace when handle breaks or screen tears. Verify fit with your model number.

Right handed Hinge

Connects lint screen lid to dryer, enabling smooth opening and secure closing. Replace when bent, cracked, or broken to restore proper lid operation.

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

Specs: 10-16 x 1/2 inch.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

For mating terminal use WP94614.

This replacement dryer control board is made by Whirlpool. The control board manages the various different functions of the appliance, such as the temperature and drying time. As the appliance ages or is used regularly, this part may begin to grow faulty, causing the user to be unable to use the dryer as intended. If the error code F-01 is visible on the display or the display fails to light up despite being connected to power, it's an indication the control board needs to be replaced. Wear work gloves for safety whenever replacing or repairing any parts. This is a genuine OEM part and has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable materials and is sold individually. This control board can be used with various different models of dryers that have been manufactured Whirlpool, Maytag, Jenn-Air, Amana, and some other brands.

For mating plug use 691707.

Wire harness connector that links the control to the buzzer for audible alerts. Replace if damaged, corroded, or missing to restore cycle completion tones.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.
