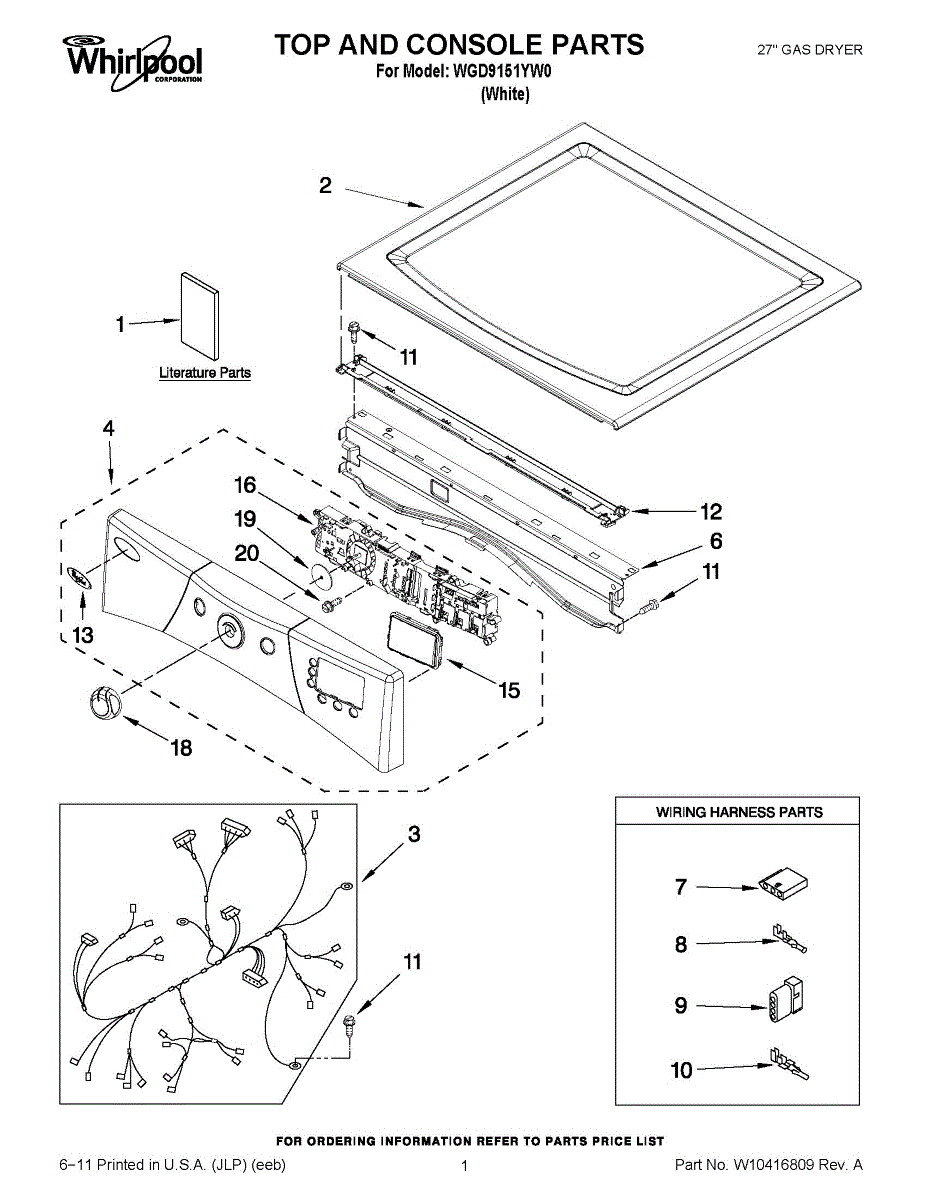

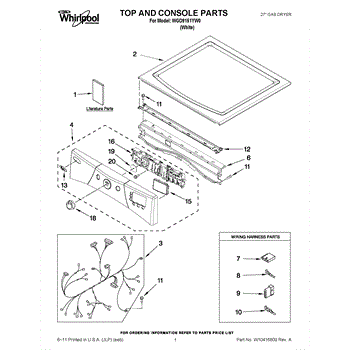

Parts for Whirlpool WGD9151YW0: 01 - Top And Console Parts

Color: White

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A replacement knob assembly that restores secure, easy control of the appliance control shaft. Replaces worn, cracked, or missing knobs so settings can be selected reliably and with a positive grip. What it does:

• Replaces a damaged or missing control knob to restore user control over settings and cycles.
• Provides a solid, shaped grip for precise selection and adjustment.
• Addresses symptoms such as a cracked or broken knob, a knob that spins on the shaft, or a knob that will not engage or change settings.
• Matches the OEM-style interface so the knob fits and operates like the original.

• Disconnect power (unplug or shut off circuit) before starting any repair.
• Verify the control shaft style (splined, smooth, D-shaft, etc.) before installing to ensure proper fit.
• Many knobs are push-on; others secure with a set screw—use appropriate tools and avoid overtightening.

This is a single replacement screw used to secure appliance panels and components. It restores proper fastening to help eliminate looseness and rattling and keep parts aligned for safe operation. What it does:

• Secures trim, panels or internal components to maintain proper alignment
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or stripped screws for safe, reliable fit
• Works wherever the OEM screw specification and fit match the original

• One screw as shown

• Disconnect power and/or gas before accessing internal components
• Use the proper driver size and avoid over-tightening to prevent thread damage
• Verify correct screw placement against the appliance's service diagram
