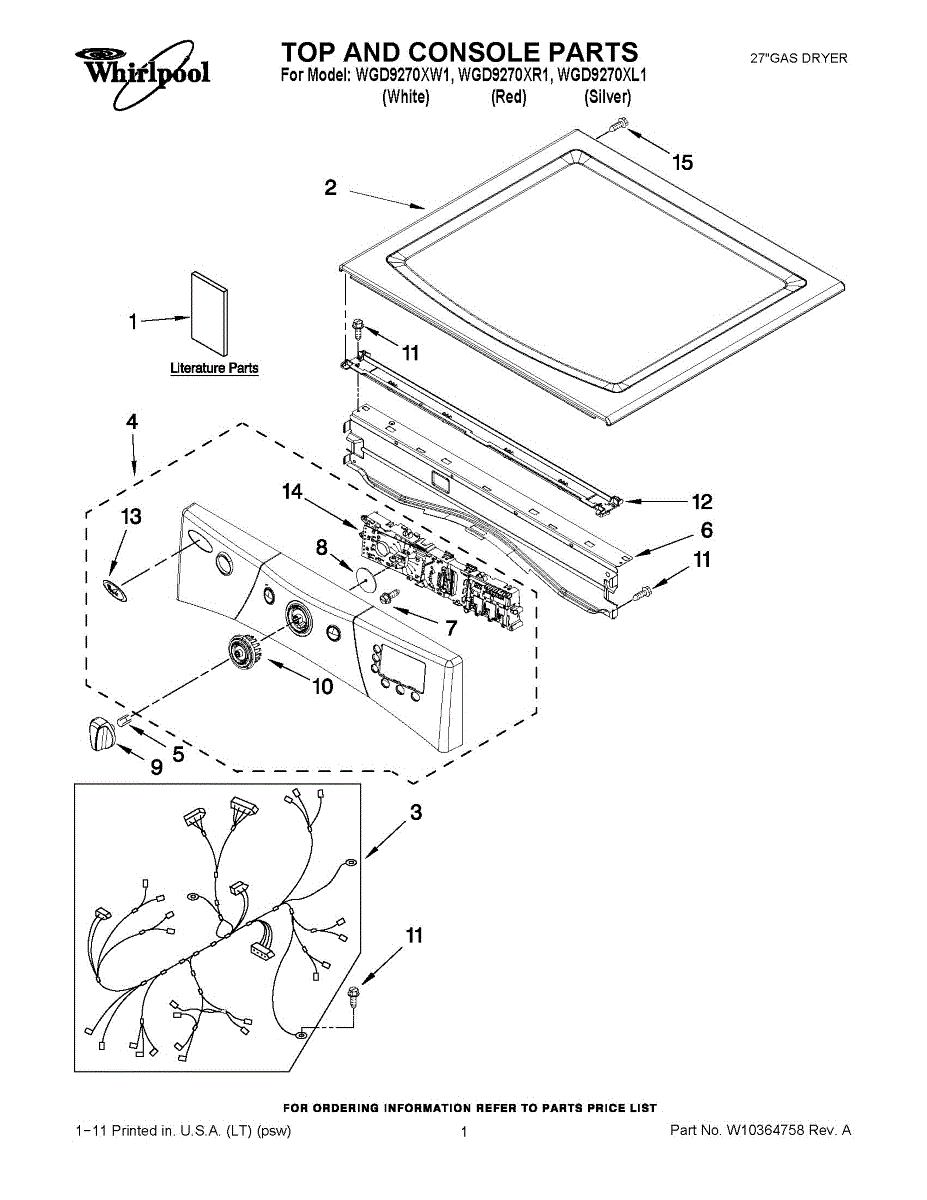

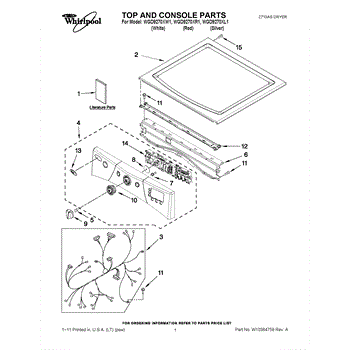

Parts for Whirlpool WGD9270XL1: 01 - Top And Console Parts

White dryer top panel that covers the drum and internal components. Replace if cracked, damaged, rusty, or worn from heavy use or chemical spills.

Replaces a worn, broken, or missing control knob spring for your dryer. This small spring installs behind the control knob to provide tension.

Structural bracket that secures components inside your dryer. Replace if bracket is rusty, bent, broken, or missing to restore proper support and alignment.

This is a single replacement screw used to secure appliance panels and components. It restores proper fastening to help eliminate looseness and rattling and keep parts aligned for safe operation. What it does:

• Secures trim, panels or internal components to maintain proper alignment
• Prevents rattling or vibration caused by loose fasteners
• Replaces missing or stripped screws for safe, reliable fit
• Works wherever the OEM screw specification and fit match the original

• One screw as shown

• Disconnect power and/or gas before accessing internal components
• Use the proper driver size and avoid over-tightening to prevent thread damage
• Verify correct screw placement against the appliance's service diagram

This is a translucent ring that acts as a light guide around the cycle selector knob on the dryer control panel. It channels light from an indicator LED to illuminate the selected cycle position. Replace this ring if the backlight around the knob no longer illuminates evenly or appears dim despite the LED functioning properly.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This is the main electronic control board that manages dryer operations including cycle selection, temperature regulation, and timing. It processes input from the user interface and sensors to run the dryer through its programmed cycles. Replace this board if the dryer fails to start, stops mid-cycle, displays error codes, or if buttons and settings no longer respond correctly.
