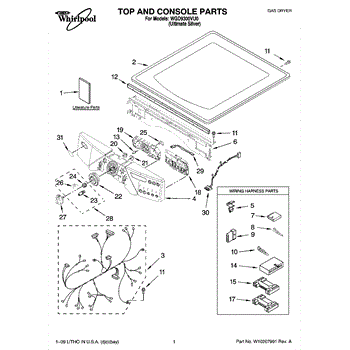

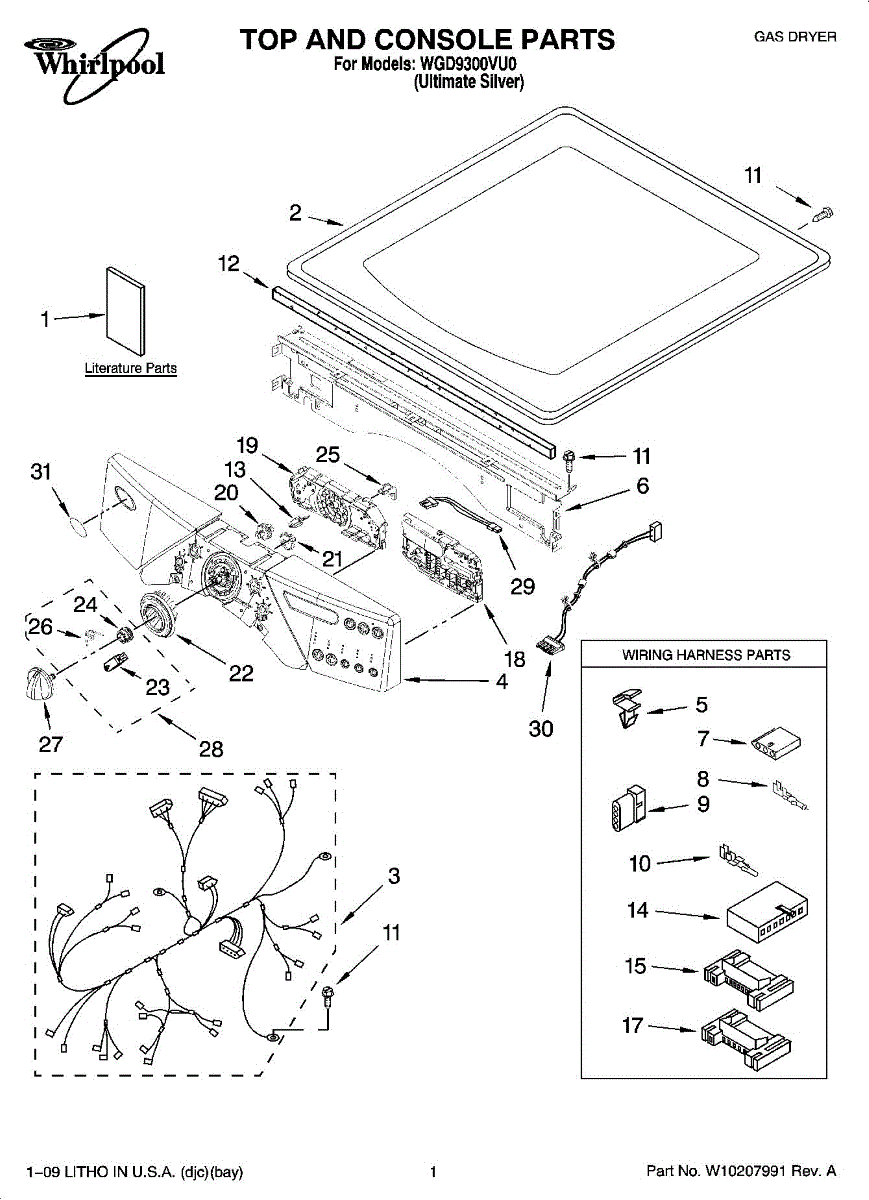

Parts for Whirlpool WGD9300VU0: 01 - Top And Console Parts

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

For mating plug use 691707.

For mating terminal use [AP31136300].

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test
