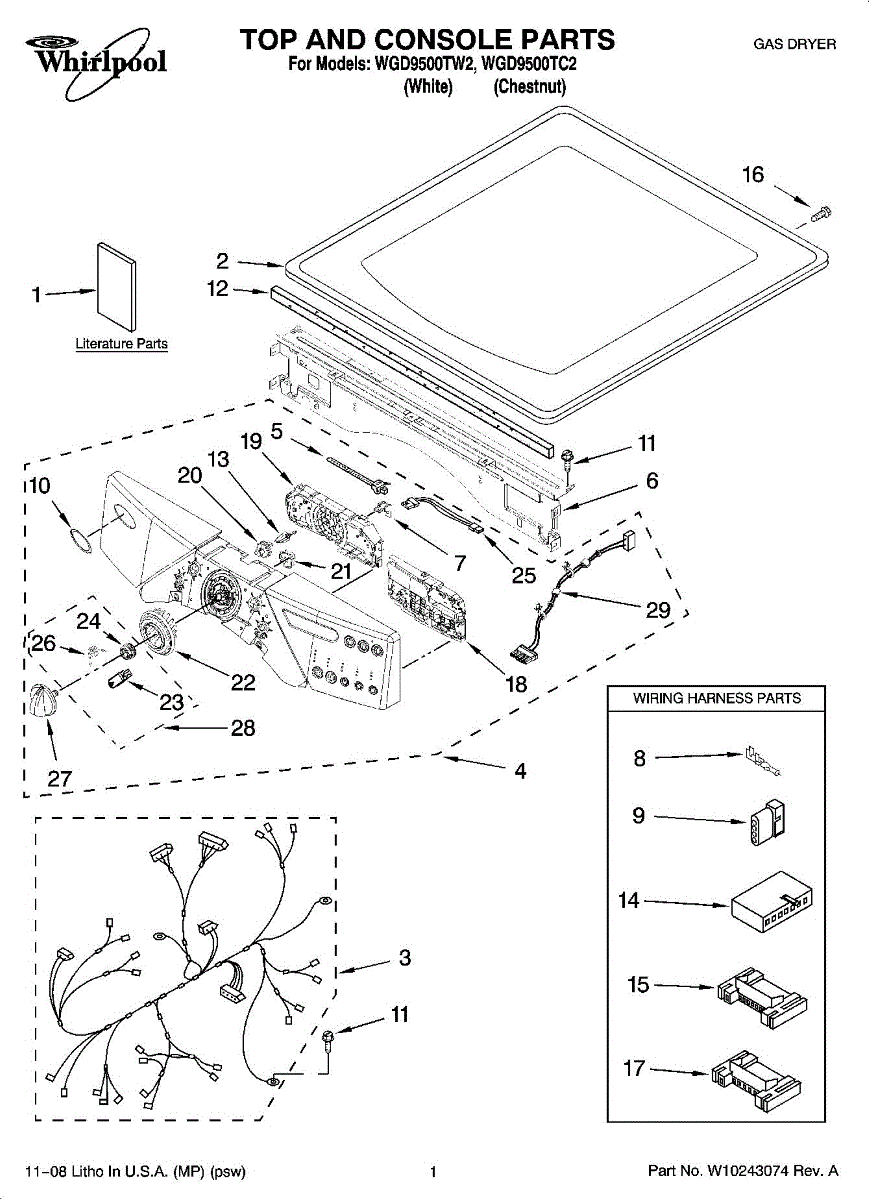

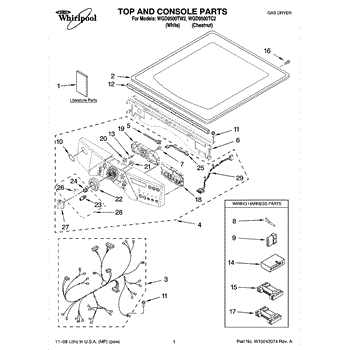

Parts for Whirlpool WGD9500TW2: 01 - Top And Console Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

This small adapter wheel connects to the dryer's encoder mechanism, which helps the control board track drum position and cycle progress. It links the encoder to the drive system, translating mechanical rotation into signals the electronic control can read. Replace this part if your dryer displays error codes related to cycle sensing, fails to advance through cycles properly, or the control board cannot detect drum movement.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

5-circuit wire harness connector for dryers. Connects wiring harness to control board. Replace if cracked, damaged, or pins are bent or corroded.

Fix a dryer that won't start, stops mid-cycle, or shows error codes with this control board. Direct replacement for electronic control failures.

This is a small encoder wheel that attaches to the control knob shaft on the dryer. It works with the electronic control board to register the rotation of the selector knob, allowing you to choose cycle settings and options. Replace this wheel if the control knob spins freely without changing settings, clicks inconsistently, or if the dryer no longer responds to knob adjustments.
