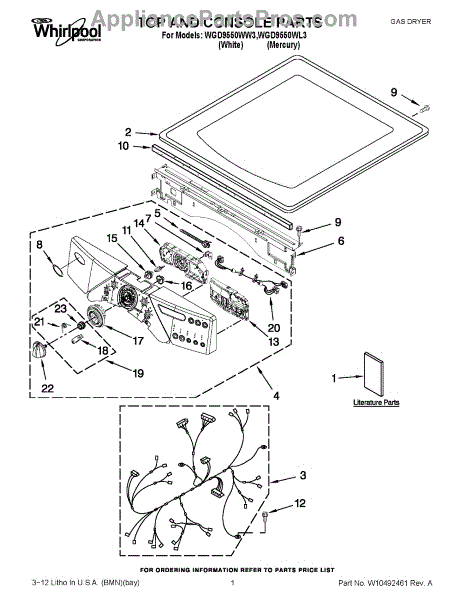

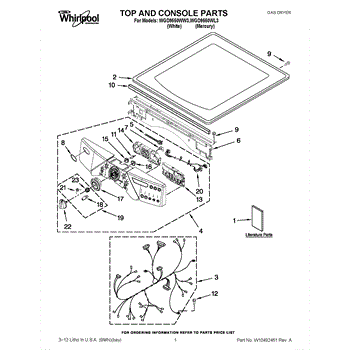

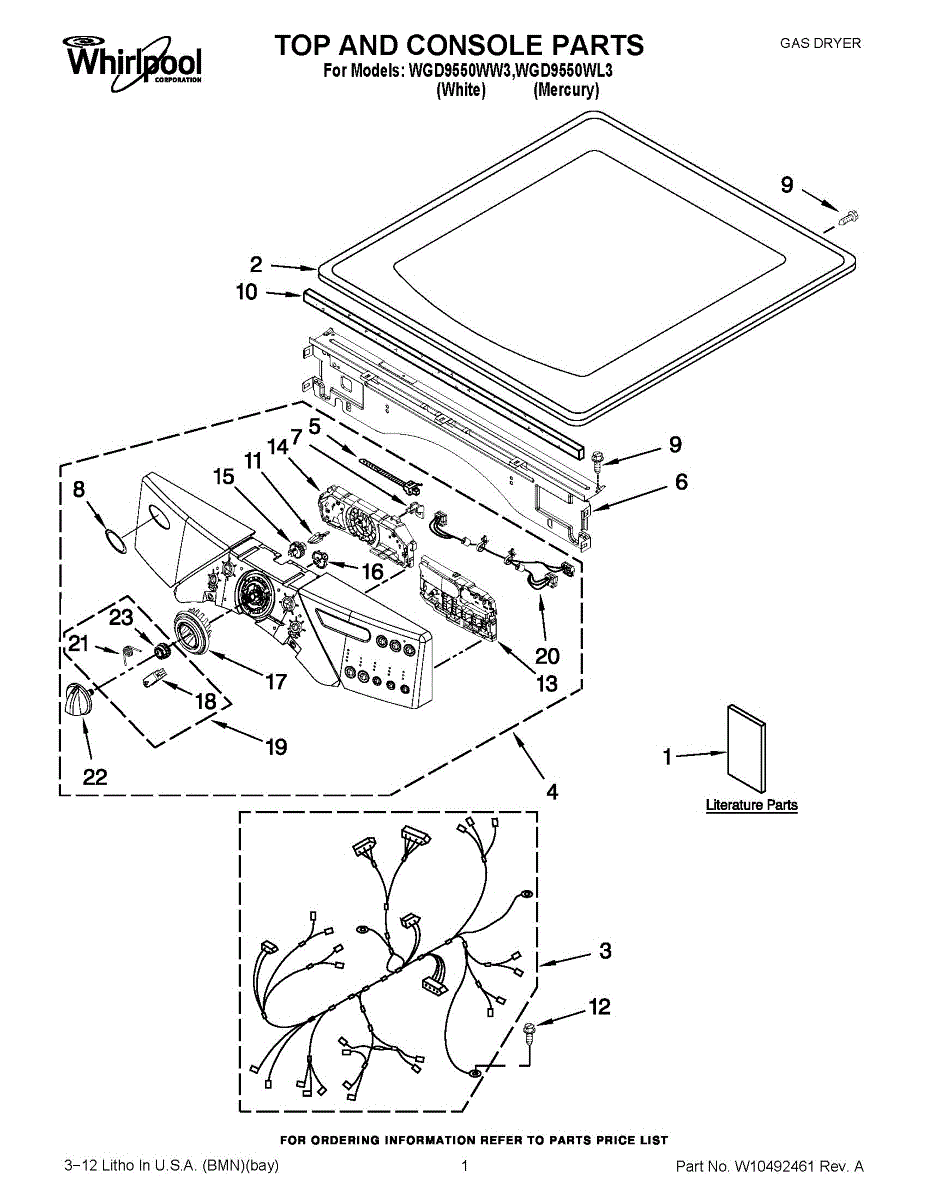

Parts for Whirlpool WGD9550WL3: 01 - Top And Console Parts

Wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connections are loose or burnt.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secu

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This electronic control board replaces the appliance's primary control module to restore responsive controls and reliable cycle operation. It provides the logic and connections that manage functions, timers and user inputs. What it does:

• Interprets user commands and sends signals to drive motors, valves, heaters and other components.
• Restores normal operation when the appliance is unresponsive, shows a blank or blinking display, or fails to start cycles.
• Helps resolve intermittent or incorrect cycle behavior caused by a failed control board.
• Stops error codes or lockouts that originate from a faulty electronic control.

• One electronic control board

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle the board by the edges and avoid static discharge; consider ESD protection.
• Verify the part number on the old board matches before installation.

Secures internal dryer components in proper position. Replace this retaining ring if cracked, broken, or missing to prevent parts from shifting or slipping.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secu

Wire harness that routes electrical power between dryer components. Replace if wiring is damaged, connectors are worn, or harness is broken or missing.

This control knob replaces a worn or broken range/dryer control knob to restore reliable selection and adjustment of settings. It provides a firm grip and clear pointer for accurate control of the appliance functions. What it does

• Turns control
