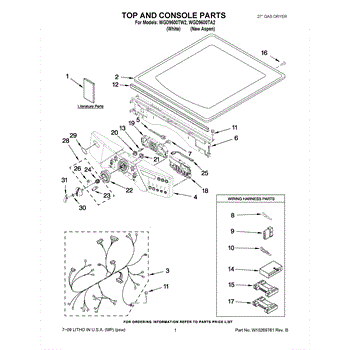

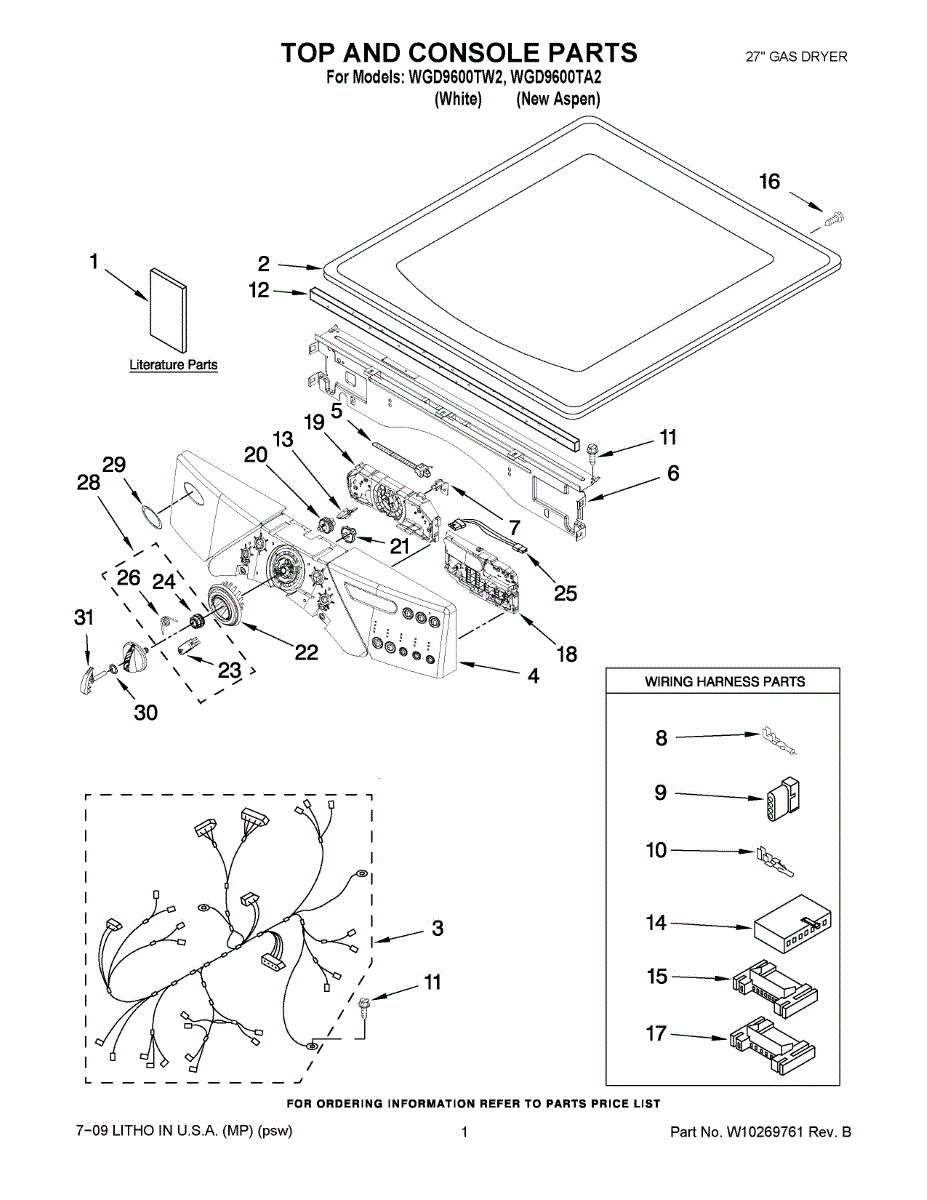

Parts for Whirlpool WGD9600TW2: 01 - Top And Console Parts

Wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connections are loose or burnt.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses

For mating terminal use [AP31136300].

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use WP94614.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secu

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• O

5-circuit wire harness connector for dryers. Connects wiring harness to control board. Replace if cracked, damaged, or pins are bent or corroded.

This electronic control board replaces the appliance's primary control module to restore responsive controls and reliable cycle operation. It provides the logic and connections that manage functions, timers and user inputs. What it does:

• Interprets user commands and sends signals to drive motors, valves, heaters and other components.
• Restores normal operation when the appliance is unresponsive, shows a blank or blinking display, or fails to start cycles.
• Helps resolve intermittent or incorrect cycle behavior caused by a failed control board.
• Stops error codes or lockouts that originate from a faulty electronic control.

• One electronic control board

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle the board by the edges and avoid static discharge; consider ESD protection.
• Verify the part number on the old board matches before installation.

Wire harness that routes electrical power between dryer components. Replace if wiring is damaged, connectors are worn, or harness is broken or missing.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secu
