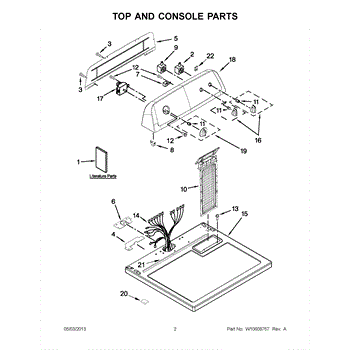

Parts for Whirlpool YIED4700YQ1: 01 - Top And Console Parts

Parts for Whirlpool YIED4700YQ1: 01 - Top And Console Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: W10185986
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPW10446920

Dryer won't start when you press the button? A faulty push-to-start switch prevents the motor signal. Simple DIY fix in under 30 minutes.

More
$64.70

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP693995

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
4
By: Whirlpool
Part Number: W10112603
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo
By: Whirlpool
Part Number: WPW10416486

This rear panel replaces the dryer's back bulkhead to restore the appliance's structural enclosure and help protect internal components from dust and debris. It provides a clean mounting surface for internal parts and improves cabinet integrity. What it does:

  • Replaces a damaged, dented, or corroded rear cabinet panel
  • Protects internal wiring, ducts, and components from external debris
  • Restores proper mounting surfaces for internal assemblies and fasteners
  • Helps maintain correct airflow paths by sealing the dryer cabinet
What's included:
  • One rear panel/back bulkhead
Install notes:
  • Disconnect power (and gas if applicable) before beginning any repair
  • Installation typically requires removing the dryer cabinet and several fasteners; keep hardware for reuse unless damaged
  • Inspect and replace any worn gaskets, seals, or mounting clips while cabinet is open

More
$60.52

IN STOCK
Ships Today Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: W10112578
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP694419

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

  • Produces audible tones for cycle end, timers and other appliance notifications
  • Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
  • Helps you hear and identify completed cycles and timed alerts
  • Small, mountable unit that fits behind the control panel and connects to the control board
What's included:
  • One adjustable buzzer kit
Install notes:
  • Disconnect power before servicing to avoid shock risk
  • Access may require removing the control panel; keep fasteners organized for reassembly
  • Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
  • Test buzzer function with power restored before fully reassembling

More
$71.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Best Seller
Product photo
4.9 (15)
By: Whirlpool
Part Number: WP8312709

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

  • Loose console assembly that is not securely fastened
  • Misaligned or dangling controls that do not sit flush
  • Dislodged console at risk of detaching from housing
  • Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$20.38

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Product photo
By: Whirlpool
Part Number: W11661755

This replacement switch restores reliable electrical switching for the circuit it controls in your appliance, so the connected feature responds consistently when actuated. Worn or heat-damaged contacts can cause intermittent operation, no response, or a function stuck on/off.

  • Opens and closes an electrical circuit to signal a control or provide power to a component
  • Helps ensure the controlled feature turns on/off at the correct time
  • Symptoms can include no response when actuated, intermittent operation, or a function that remains on/off
  • Physical clues may include loose terminals, arcing, or burned contacts on the original switch
What's included: 1 switch
  • Disconnect power before servicing; for gas appliances, also shut off gas supply
  • Access and mounting location vary by model; remove panels as needed to reach the switch
  • Photograph wiring and transfer leads one at a time to matching terminals; avoid pulling on wire insulation
  • Secure the switch, restore power, and test the function for proper operation

More
$20.23

IN STOCK
Ships Today Guaranteed
Add to Cart
10
Best Seller
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11778253

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

More
$38.95

IN STOCK
Ships Today Guaranteed
Add to Cart
11
Best Seller
Product photo
4.9 (22)
By: Whirlpool
Part Number: WP8536939

This is a D-shaped knob insert or spring clip that fits inside a control knob and connects it to the control shaft on the dryer's front panel. It ensures the knob grips the shaft properly so you can turn the timer or selector. Replace this insert if your control knob spins freely without engaging the shaft or if the knob feels loose and won't stay in position.

More
$9.63

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Product photo
4.5 (2)
By: Frigidaire
Part Number: 5303013874
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo
5.0 (5)
By: Whirlpool
Part Number: W11693756

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

More
$12.54

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP8563663

Main top panel assembly that forms the finished top surface of your dryer. Replace if cracked, discolored, damaged, or worn to restore appearance.

More
$146.95

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
By: Whirlpool
Part Number: WPW10453947

This knob assembly replaces the "modifier" control knob on the console so you can adjust settings smoothly and reliably again. Restore a secure, positive-turn feel when the original knob is cracked, stripped, or missing.

  • Attaches to the control shaft to select and adjust options/settings
  • Replaces knobs that are cracked, broken, or missing
  • Fixes a knob that spins freely, slips, or won't turn the control
  • Restores proper selection and tactile feedback during use
What's included: 1 knob assembly Install notes:
  • Disconnect power to the appliance before servicing
  • Pull the old knob straight off the shaft; avoid prying against the panel
  • Align the flat/splines on the new knob with the shaft and press on firmly until fully seated
  • The pointer aligns with the panel markings before use

More
$37.51

IN STOCK
Ships Today Guaranteed
Add to Cart
17
Best Seller
Product photo
5.0 (7)
By: Whirlpool
Part Number: WPW10436303

Fix a dryer that won't start, stops mid-cycle, or runs too long. Replacing a faulty timer is straightforward—snap in the new part after unplugging.

More
$153.65

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10711289

This is a control knob used on dryers, typically for the timer or cycle selector. It attaches to the timer shaft and allows you to select drying cycles and settings. Replace this knob if it is cracked, broken, or if the D-shaped mounting hole has worn out, causing the knob to spin freely without engaging the timer shaft.

More
$9.63

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Product photo
By: Whirlpool
Part Number: 3389682

The dryer toe panel spacer provides proper alignment and spacing for the front bottom panel of the dryer. Replace when the toe panel is loose, misaligned, or there are visible gaps at the bottom of the dryer.

More
$4.96

IN STOCK
Ships Today Guaranteed
Add to Cart
21
By: Whirlpool
Part Number: W10316616

This is a foam seal that fits along the control panel area of a dryer, creating a barrier against moisture, lint, and air leaks. It helps protect internal control components from heat and debris. Replace this seal if it is cracked, compressed, or missing, which can allow lint buildup near controls or cause air leaks that reduce drying efficiency.

More
$17.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
Product photo
By: Whirlpool
Part Number: W11213336

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.

More
$4.95

IN STOCK
Ships Today Guaranteed
Add to Cart
