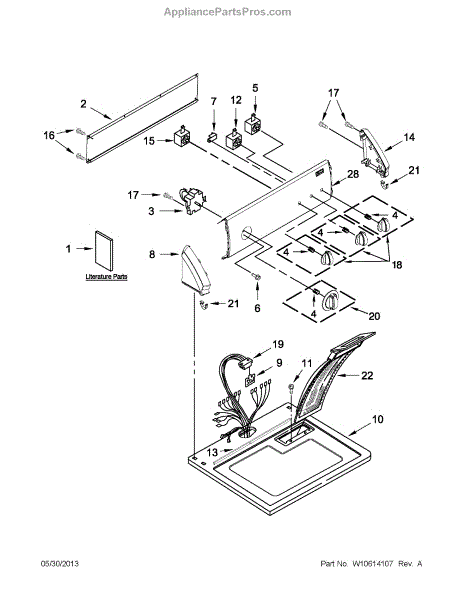

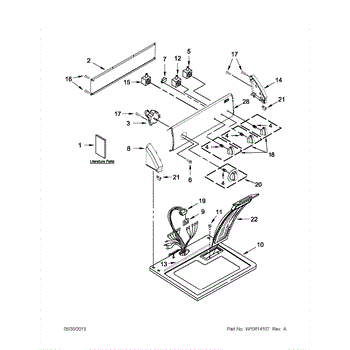

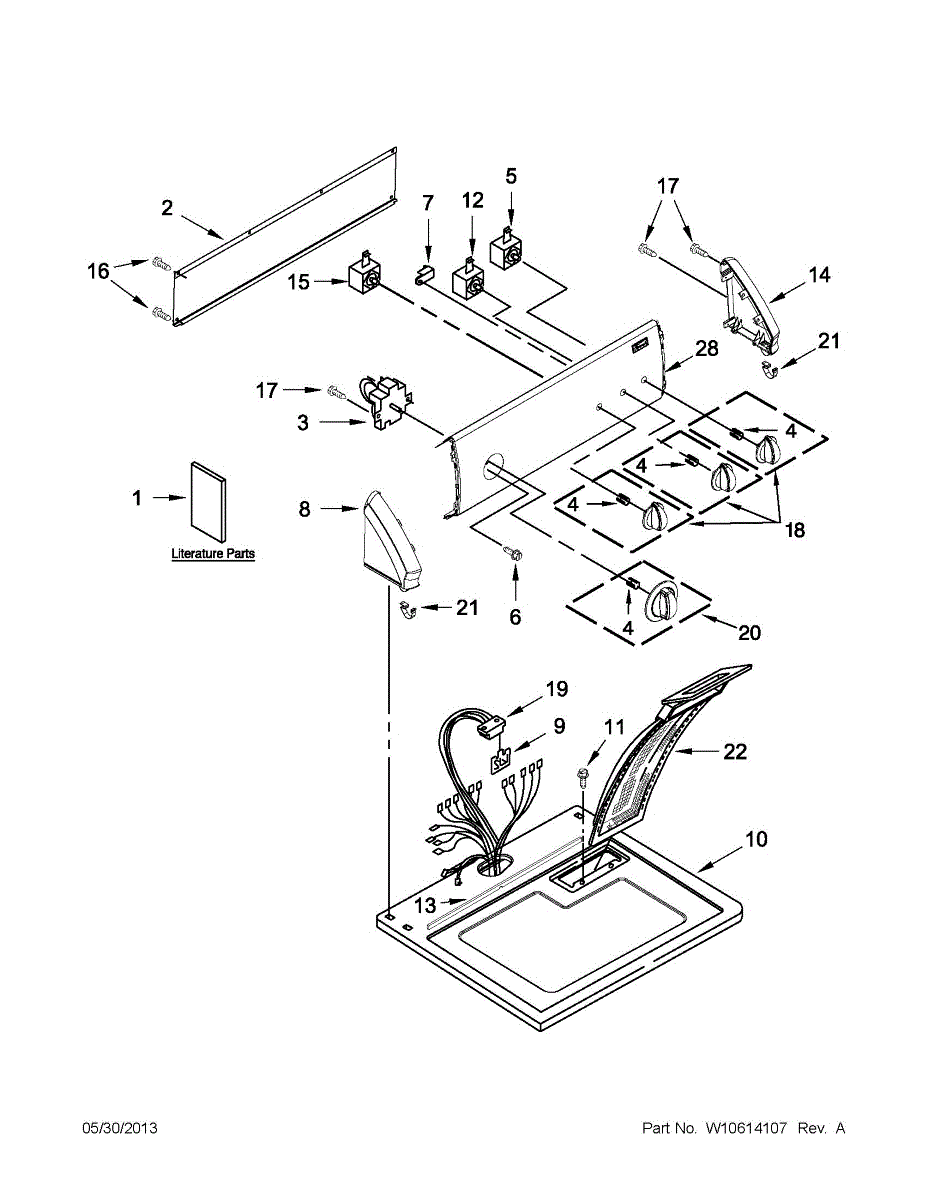

Parts for Kenmore 110.C61292012 (110C61292012, 110 C61292012): Top And Console Parts

The Timer is an OEM replacement part for Whirlpool dryers. It controls the electrical components and the timing of the dryer cycle, ensuring that the dryer operates for the correct amount of time based on the selected settings. The timer helps manage the duration of each drying phase, such as heating, tumbling, and cooling.

Causes of a bad dryer timer can include electrical issues like short circuits, wear and tear from repeated use, or internal mechanical failure within the timer mechanism.

Symptoms of a bad dryer timer include:

• The dryer not advancing through cycles
• The dryer continuing to run even after the set time
• Inconsistent drying times or incomplete drying cycles
• The dryer not starting at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Push To Start Switch is an OEM part for Whirlpool dryers. It is the interface between the user and the dryer, initiating the drying cycle when pressed. This switch is essential for the safe and efficient operation of the dryer, ensuring that it starts only when the button is deliberately pressed, thereby preventing accidental start-ups.

Causes of a bad Push To Start Switch can include electrical failures within the switch mechanism, wear and tear from repeated use, or damage from spills or moisture exposure.

Symptoms of a bad Push To Start Switch include:

• The dryer not starting when the button is pressed
• The need to press the button multiple times to start the dryer
• The dryer starting without the button being pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This adjustable buzzer kit replaces a failed or noisy mini buzzer to restore audible alerts for cycles, timers and notifications. Compact design lets the appliance signal you reliably when cycles finish or need attention. What it does:

• Produces audible tones for cycle end, timers and other appliance notifications
• Replaces buzzers that are silent, intermittent, weak or emitting erratic beeps
• Helps you hear and identify completed cycles and timed alerts
• Small, mountable unit that fits behind the control panel and connects to the control board

• One adjustable buzzer kit

• Disconnect power before servicing to avoid shock risk
• Access may require removing the control panel; keep fasteners organized for reassembly
• Disconnect the buzzer wiring harness or connector before removing the old unit; connect the new buzzer the same way
• Test buzzer function with power restored before fully reassembling

This part is a moisture sensor control board that is used on dryer units. This component monitors the moisture levels within the dryer and adjusts the dry time during the automatic drying cycle. A new moisture sensor control board will be needed if the time is not advancing in the automatic drying cycle, even if it does advance in the timed dry cycle. Another sign is if the dryer continues to run after the clothing inside is dry. Unplug the dryer from its power source prior to replacing this component. The person performing this task may wish to wear work gloves to protect their hands.The moisture sensor control board is compatible with dryers that are manufactured by Kenmore, KitchenAid, Kenmore Elite, Whirlpool, Amana, Crosley, Maytag, Inglis, Sears Canada, Roper, and Sears. This part is sold individually and it is a genuine OEM replacement part that comes straight from the manufacturer.

This is the appliance's main top panel assembly. It restores a clean, sturdy top surface and protects internal components, helping the unit look and function like new after cosmetic or physical damage.

• Forms the finished top surface of the appliance and protects internal wiring/mechanisms
• Provides mounting/attachment points for surface components specific to the model
• Helps maintain proper alignment of surrounding panels and trim
• Common signs it needs replacement: dents, cracks, chips, rust, bowed or loose panel, rattling, or sharp edges

• Disconnect power to the appliance; shut off gas/water if your model requires it.
• Wear cut-resistant gloves and handle carefully to avoid bending or chipping the panel.
• Transfer any reusable brackets, trim, or grommets from the original panel to the new one.
• Reinstall using existing fasteners; avoid overtightening on painted or glass surfaces.

The Temperature Selector Switch is an OEM replacement part for Whirlpool dryers. This electro-mechanical switch allows consumers to choose between heat settings that adequately dry different fabric types.

Causes of a damaged selector switch can include regular wear from hundreds of cycles over the appliance's lifetime. Mineral deposits accumulating inside linkage mechanics may cause rotational movements to stiffen. The physical impacts of shifting internal contact positions could potentially lead to switching issues as well.

Symptoms of a faulty temperature selector involve:

• Inability to change heat level for desired drying performance
• Temperature remaining stuck on highest or lowest settings
• Lint filter or duct cleaning lights failing to illuminate properly

This OEM replacement is compatible with some Kenmore and KitchenAid electric dryer models too.

This replacement refrigerator door gasket seals the door to help keep cold air in and improve temperature stability. It restores the sealing surface so the appliance can cool more efficiently and reduce moisture buildup. What it does

• Replaces a worn, torn, or warped door seal to restore an airtight fit
• Helps prevent warm air leaks that can cause temperature fluctuations
• Reduces frost and condensation buildup around the door opening
• Can improve energy efficiency when the door closes properly

• Disconnect power to the appliance or unplug the refrigerator before beginning work
• Remove the old gasket by loosening retainer screws or pulling out the retainer track as applicable; compare new gasket to ensure correct orientation
• Seat the new gasket evenly into the retainer channel, starting at the top corners and working around; tighten retainers if used
• Allow the gasket to form to the door edge; avoid sharp bends or creases during installation

This rotary on/off switch controls the dryer's Finish Guard (also called Wrinkle Guard/Wrinkle Shield) feature. Replacing it restores proper control of the post-cycle intermittent tumbling that helps reduce wrinkles, preventing the feature from being stuck on or off.

• Provides 2-position on/off selection for the Finish Guard/Wrinkle Guard function
• Failure can cause the feature not to engage or to stay on after the cycle ends
• Knob may feel loose or fail to click when the switch is worn
• Mounts in the control console and interfaces with the external selector knob

• Disconnect power before servicing
• Access through the control console; remove paneling as needed
• Transfer wires one at a time or photograph connections for reference
• Reinstall using the existing knob and mounting hardware

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

A replacement selector knob selection assembly that restores a secure, easy-to-turn control for cycle or setting selection. Replaces a cracked, loose, or missing knob so you can confidently select functions again. What it does:

• Replaces a worn, broken, or missing selector knob used to choose cycles or settings
• Provides a secure grip and positive engagement with the control shaft
• Helps stop slipping, wobbling, or a knob that won't turn properly
• Restores normal control operation when the original knob is damaged

• One selector knob selection assembly

• Disconnect power to the appliance before starting any repair
• Most knobs pull straight off the control shaft; align the splines and press on until fully seated
• If the knob resists, verify orientation—do not force to avoid shaft damage

This timer knob mounts on the appliance's mechanical timer shaft and lets you select cycles and settings. Replace a cracked or stripped knob to restore smooth, positive control of the timer and accurate cycle selection.

• Attaches to the timer shaft so you can set cycle and time
• Provides a secure grip for selecting and adjusting settings
• Common symptoms: knob spins without moving the timer, feels loose, cracked, or missing
• Helps restore proper engagement when the hub is worn or stripped

• Disconnect power before servicing
• Pull the old knob straight off the timer shaft
• Align the flat/splines of the new knob with the shaft and press on firmly
• Rotate through a full turn to confirm proper engagement

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This lint screen captures lint during each cycle to keep airflow steady and drying consistent. Replacing a torn or warped screen helps reduce long dry times, overheating shut-offs, and lint buildup in the vent path.

What it does

• Traps lint and debris before air exits the drum
• Maintains proper airflow for efficient, even drying
• Helps keep lint out of the blower and exhaust duct
• Replaces screens that are torn, warped, or won’t seat flush

What’s included
One lint screen.

Install notes

• Power off the dryer before reaching into the lint housing.
• Vacuum and wipe the lint channel clean before installing the new screen.
• Seat the screen fully; don’t operate the dryer without it.
• Clean the screen before every load; wash with mild soap if residue builds up.

Usage tip
If you use dryer sheets or liquid softener, rinse the screen periodically to remove film that can restrict airflow.

This genuine part is an OEM replacement part is also compatible with Amana and KitchenAid models as well.
