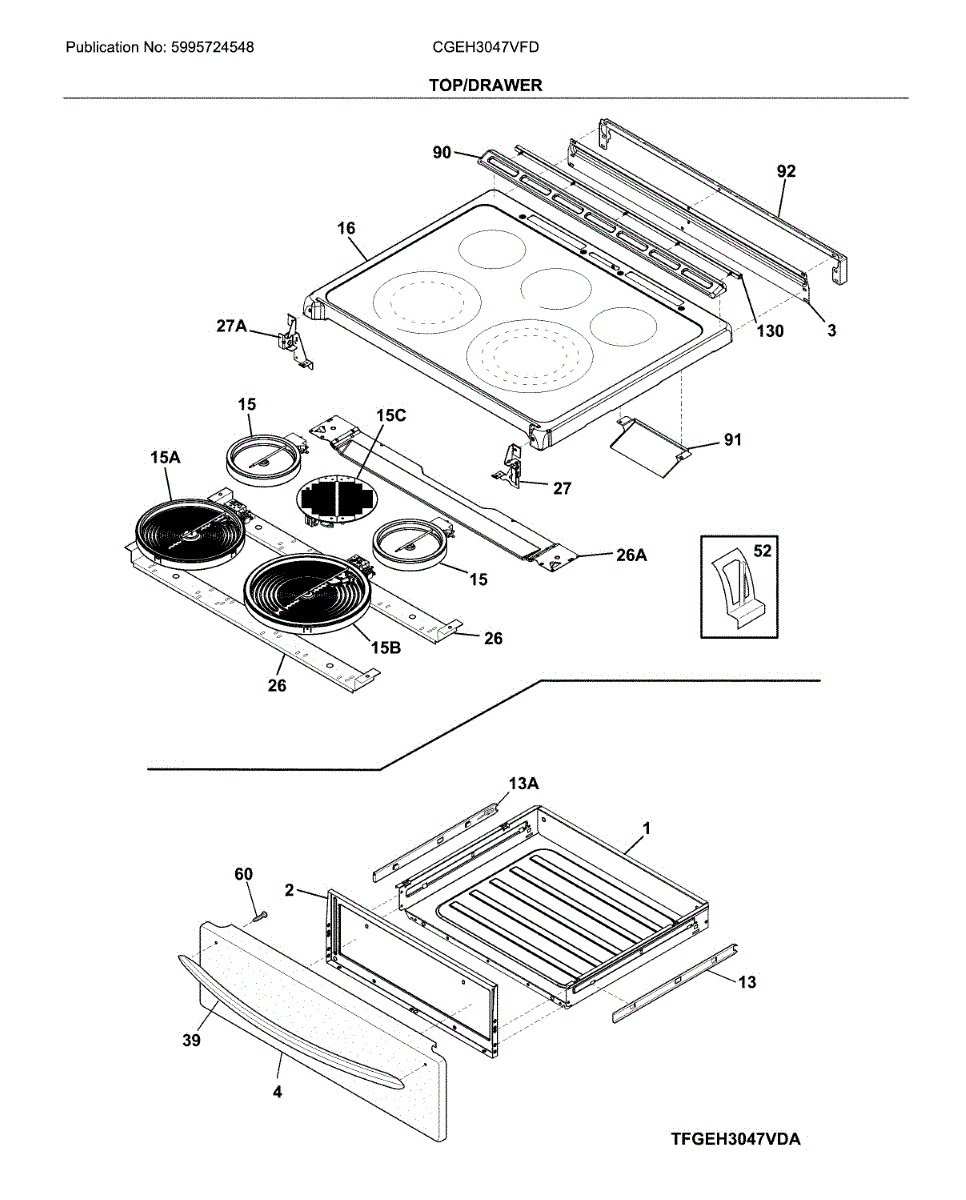

Parts for Electrolux CGEH3047VFD: Top / Drawer Parts

This is a metal liner that sits inside the broil drawer at the bottom of the range, protecting the cabinet floor from grease, drips, and heat damage. It provides a smooth, cleanable surface beneath the broiler element or heating area. Replace this liner if it is rusted, warped, or has burn-through holes that allow grease to reach the range cabinet.

Metal shield protects internal components from heat and debris. Replaces damaged, cracked, or missing shields to restore proper protection around wiring.

Stainless steel front panel for the drawer beneath your range oven cavity. Replace if cracked, dented, scratched, or discolored to restore appearance.

Replacement drawer glide for electric and gas ranges. Guides storage drawer along its track for smooth opening and closing. Replaces cracked or worn glides.

Oven rack glide that allows smooth sliding of oven racks. Replace this guide if it's broken, cracked, or missing to restore proper rack operation.

This is a dual-zone radiant surface element that fits into the cooktop of a smooth-top electric range. It provides two heating zones - a 9-inch outer ring at 3200 watts and a 6-inch inner ring at 1400 watts - allowing you to match the burner size to your cookware. Replace this element if the burner fails to heat evenly, only partially lights up, or does not heat at all.

Burner not heating or heating unevenly? This surface heating element restores consistent temperature control. Common fix for cold or slow-heating burners.

The Surface Element is an OEM part for Frigidaire electric ranges and cooktops. It is the individual electric coil located beneath the cooktop that provides heat.

The surface element heats up rapidly upon activation in order to boil, simmer or saute foods efficiently. Its precise heating capabilities assist home cooks in meal preparation.

Causes can be mineral deposits caked onto the element surface over time reducing its ability to transfer heat properly. Excess moisture exposure can also damage internal wiring.

Symptoms of a bad surface element include:

• Burners that do not heat up at all or heat unevenly
• Lights flickering below an element when in use
• Popping, buzzing or crackling noises coming from below an element

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

Replacement glass cooktop surface for electric ranges. Installs as the main cooking surface. Replace when cracked, scratched, or broken to restore appearance.

Replace your range's oven door handle if it's cracked, broken, or worn. This structural component mounts to the oven door for opening and closing access.

This replacement part is a black element mounting clip used in ranges or wall ovens. This clip is used for surface elements on electric ranges and ovens. The clip itself connects the surface of the element to the support bracket which allows the stove to heat up. The user might need a new clip or clips if the heating element on the stove is loose, if the heating element is completely detached, or if the clip itself is bent or broken. This clip is black and made of sturdy metal that can withstand heat as well as strain on the clip itself. Installation of this clip is very simple as it just requires replacing the old one with a new one and making sure it is secure. Pliers might be required if the old clip is bent or stuck near or on the heating element. There are no special tools needed for this repair. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from Frigidaire and other brands like Electrolux, Gibson, Kelvinator, Crosley, Westinghouse, and more.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Decorative trim piece that restores the finished appearance of your range. Replaces cracked, dented, or missing trim to provide a clean edge.

Seals gaps at the rear of your range while maintaining proper ventilation. Replace if damaged, cracked, or allowing air leaks. Confirm fit with your model.

This seal fits along the perimeter of the range main top, creating a tight barrier between the cooktop and the frame beneath it. It prevents grease, spills, and heat from reaching internal components. Replace this seal if you notice grease leaking beneath the cooktop surface, a loose-fitting main top, or if the old seal is cracked, flattened, or missing.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Wire harness for electric ranges. Connects electrical components within the range assembly. Replace if wires are damaged, frayed, or connectors are broken.

Size: 6-20 x 0.312 inch.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
