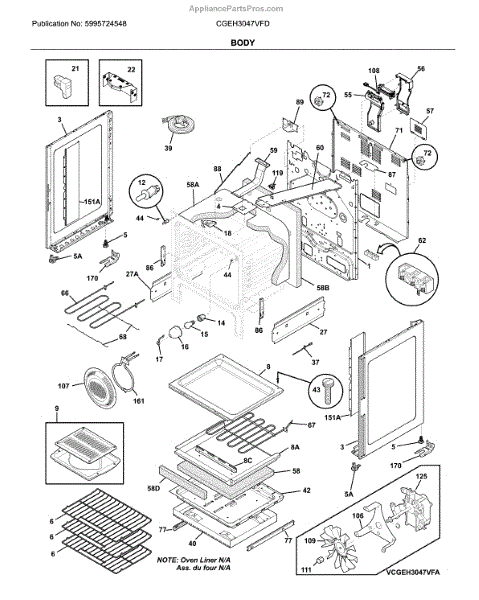

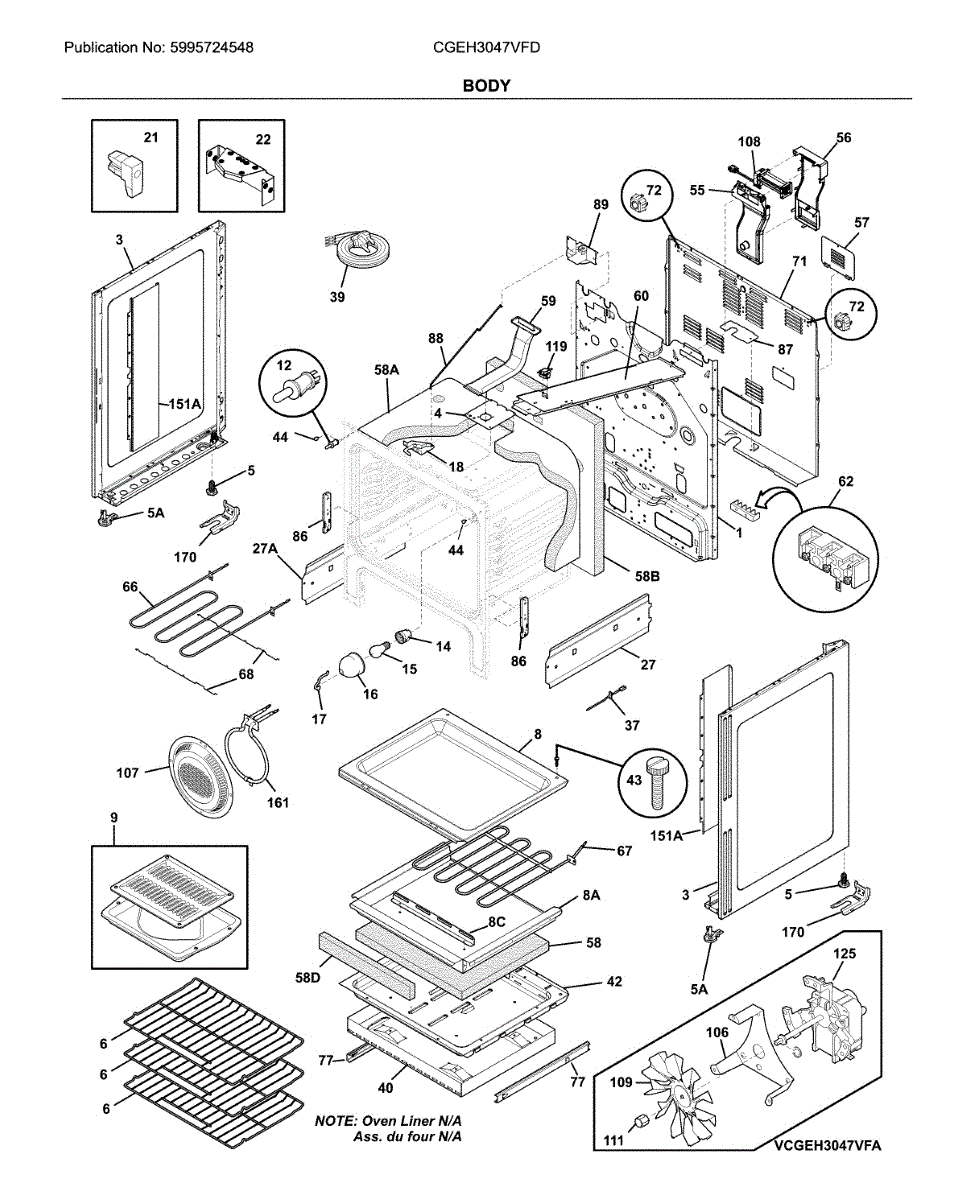

Parts for Electrolux CGEH3047VFD: Body Parts

This is the right-side outer panel for a freestanding range, providing the exterior surface that faces outward when the unit is installed at the end of a counter run. It gives the range a finished appearance and protects internal components. Replace this panel if it is dented, scratched, rusted, or otherwise damaged.

This is a black metal side panel that attaches to the left exterior side of the range, providing a finished appearance and structural support. It helps enclose and protect the internal components of the oven cavity. Replace this panel if it is dented, rusted, scratched, or damaged from heat exposure.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Oven rack for electric and gas ranges. Provides a cooking surface inside the oven cavity. Replace if discolored, warped, rusted, or damaged.

This is the mounting base that supports and secures the bake element at the bottom of the oven cavity. It provides a stable platform for the heating element and helps direct heat properly during baking. Replace this part if it is cracked, warped, or corroded, which can cause the bake element to sit unevenly or make poor electrical contact.

Replacement mounting bracket that secures internal range components. Needed when your original support is broken, cracked, or missing, causing parts to rattle.

Bottom panel installs inside the oven cavity beneath the baking element. Replace if cracked, discolored, or damaged by melted foil or high heat exposure.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Protective shield that covers and guards internal range components from debris and contact. Replace if cracked, broken, or missing to maintain protection.

Secures the oven bottom panel in place. Replace if screw is stripped, missing, or no longer holds the panel securely. Sold individually.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Replace your range's duct if it's cracked, damaged, or missing. This duct component directs airflow within your electric or gas range for proper ventilation.

This duct channels air through your range's ventilation system. Replace if cracked, broken, or deteriorated to restore proper airflow and appearance.

Replace a cracked, broken, or missing outer housing cover on your range. This trim piece protects internal components and restores the finished look.

This cabinet liner insulation replaces the thermal barrier inside the refrigerator cabinet to help maintain even temperatures and reduce frost buildup. Restores proper airflow insulation for more consistent cooling and efficient operation. What it does:

• Replaces worn or damaged cabinet insulation that can allow cold air loss and reduce cooling efficiency
• Helps limit frost and moisture buildup on interior walls when properly installed
• Supports stable internal temperatures for better food preservation
• Can reduce excessive run time from temperature fluctuations

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels and shelving; keep fasteners for reassembly
• Handle insulation carefully; avoid compressing or tearing material which reduces effectiveness
• Follow OEM instructions for adhesive or fastener placement and confirm a proper seal when finished

Sound dampening insulation for electric and gas ranges. Replaces worn, torn, or missing insulation. Installs inside range cavity to reduce noise.

Insulates the oven cavity to reduce heat transfer and improve energy efficiency. Replace if damaged, compressed, or missing to restore proper insulation.

This insulation panel fits inside the refrigerator cabinet to help maintain interior temperatures and reduce heat transfer to the outer shell, supporting more consistent cooling and helping limit frost buildup. What it does:

• Forms a thermal barrier between the interior liner and outer cabinet to help hold cold air inside.
• Helps reduce frost and moisture buildup around the liner when intact.
• Worn, torn, or missing insulation can contribute to longer run times, uneven cooling, or more frequent defrost cycles.
• Replaces damaged insulation to restore proper temperature retention and improve appliance efficiency.

• Always disconnect power to the appliance before starting any repair.
• Panel may be secured with clips, adhesive, or foam sealant; remove and install carefully to avoid damaging the liner.
• Inspect surrounding seals, gaskets, and fasteners while accessing the cavity; replace any damaged components.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Broil element not heating or burnt out? This upper heating element restores intense top heat for broiling meats and melting cheese. Easy DIY repair.

This is a 3000-watt bake element that mounts in the bottom of the oven cavity. It provides the primary heat source for baking and roasting. Replace this element if the oven is not heating properly, food is undercooked, or the element shows visible damage such as cracks, blistering, or burn-through spots.

Replacement support plate for ranges. Mounts inside the appliance to provide structural stability. Order a new one if cracked, broken, or missing.

This evaporator cover shield protects the refrigerator evaporator and related components from debris and helps direct airflow for efficient cooling. It's a direct-replacement exterior cover used behind the freezer liner. What it does:

• Protects the evaporator coil and fan from damage and debris
• Helps channel airflow across the evaporator for proper cold-air distribution
• Prevents accidental contact with cold or moving parts during service
• Can reduce frost buildup by maintaining proper airflow paths

• One evaporator cover shield

• Designed for straightforward replacement; remove interior liner or access panel per your model's service instructions
• Handle carefully to avoid bending tabs or cracking plastic; align mounting tabs before securing
• Disconnect power to the appliance before beginning any service to avoid electrical shock or injury
• If you find additional damaged or missing fasteners, replace them with OEM-specified hardware

This spacer installs between range components to maintain proper spacing and alignment. Replace if cracked, broken, or missing to restore fit.

Replaces a worn, broken, or missing storage drawer glide for smooth sliding operation. Installs on the drawer track to restore proper alignment and movement.

Replacement hinge receptacle for range and oven doors. Secures door hinge assembly to frame. Order when original receptacle is cracked or broken.

Replace your range oven door hinge pin rod if cracked, bent, or missing. This structural rod keeps the door aligned and securely attached to the hinge.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Secures the motor assembly to the range chassis. Replace if your bracket is cracked, bent, or broken to restore proper motor alignment and stability.

This is a metal cover that fits over the convection fan assembly in the back wall of the oven cavity. It protects the fan and heating element while allowing hot air to circulate evenly during convection cooking. Replace this cover if it is warped, cracked, or corroded, which can cause uneven heating or rattling noises during convection baking.

Replace a squealing, noisy, or non-functioning convection fan in your range. This assembly circulates hot air for even cooking. Accessible via rear panel.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat after self-cleaning? This high-limit thermostat cuts power when temperatures get too high. Moderately easy DIY repair fix.

Fixes loud noises or no airflow from convection fan. This motor drives the fan to circulate air evenly during cooking. DIY-friendly repair in 10-30 minutes.

This bake element is the oven's lower heating element that provides steady, even heat for baking and roasting. Replacing a worn or damaged element restores proper oven heating and consistent cooking results. What it does

• Heats the oven cavity during bake cycles to maintain set temperatures.
• Replaces a broken or burnt-out lower element causing no heat.
• Helps correct uneven baking or undercooked dishes when the element is failing.
• Works with the oven's control and thermostat to regulate bake temperature.

• One bake (lower) oven heating element — exact fit as shown.

• Disconnect power to the appliance before attempting any service; this part operates on live voltage.
• Access typically requires removing the oven racks and the back panel or cavity access screws.
• Inspect terminal connections and insulation; replace any damaged wiring or hardware.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Size: 8-18ab x 0.5 inch.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Support plate that mounts to the bottom of your range oven cavity. Replace if the original plate is cracked, warped, or damaged from heat exposure.

Wire harness assembly for electric and gas ranges. Connects electrical components throughout the appliance. Replace if wires are frayed, damaged, or connections are loose.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Size: 8-32t x 0.500 inch. Color: Black.

Hex head screw that secures panels, brackets, and internal components in refrigerators and appliances. Replace when missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
