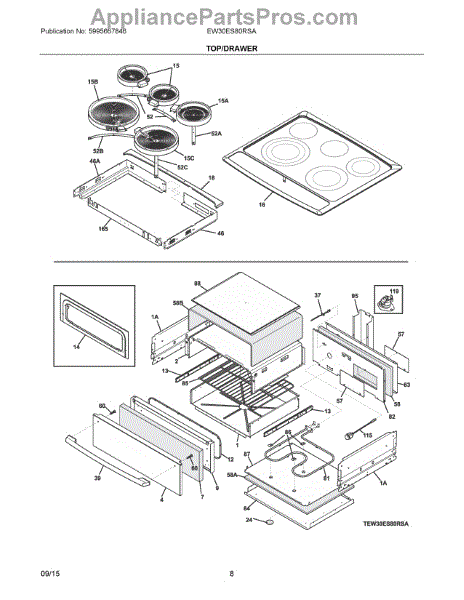

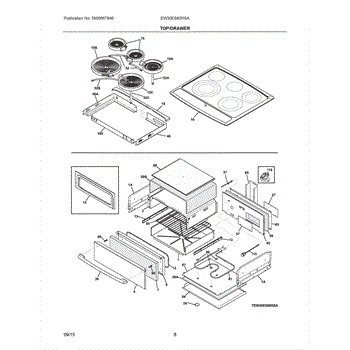

Parts for Electrolux EW30ES80RSA: 04 - Top / Drawer Parts

This oven bake element is the heating element that warms the oven cavity for baking and roasting. Replacing a damaged element restores proper oven heating and helps return cooking performance to normal. What it does:

• Heats the oven interior for baking, roasting and browning.
• Replaces elements that are visibly burnt, cracked, broken, or no longer glow when the oven is on.
• Common symptoms it can fix: little or no heat from the oven, uneven cooking, or an element that sparks or shows burn spots.
• Works as the direct heater inside the oven cavity; connects to the oven terminal block.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access typically requires removing the oven interior panels or rear access panel; support the element while disconnecting terminals.
• Handle terminals and sharp sheet metal carefully; use insulated tools and secure terminal connections.

Restore reliable top heat for broiling and browning. This replacement broil heating element brings your oven's broil function back to full strength so foods brown evenly and the broiler heats when selected.

• Provides high, direct heat from the top of the oven during the broil cycle
• Helps with top-browning in some baking/roasting modes
• Common failure signs: broiler won't heat or glow, uneven browning, visible breaks or blistering on the element
• Often tests "open" (no continuity) when failed

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove mounting screws, then gently pull the element forward and support the wires
• Label and transfer wires to the new element one at a time; do not allow wires to slip back into the rear cavity
• Reinstall screws, ensure secure connections, restore power, and test the broil function

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This oven temperature probe detects the oven's internal temperature and delivers readings to the control board so the oven can regulate heat more accurately for consistent cooking results. Ideal when your oven is giving incorrect temperature feedback. What it does:

• Measures internal oven temperature and sends the signal to the oven control or thermostat.
• Helps the control board maintain set temperatures for even baking and roasting.
• Common symptoms that indicate a failing probe: oven runs too long, doesn't reach set temperature, or produces uneven cooking.
• Replaces a damaged or erratic probe that causes incorrect temperature readings.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Access typically requires removing the oven access panel or control panel; handle the connector and wiring gently.
• Verify connector orientation before installation; secure wiring away from heating elements.

Used on the 1200 watt element

This element mounting spring secures a surface cooktop heating element to the range, keeping the element stable and ensuring consistent electrical contact for reliable heating. Replaces a worn or missing spring to restore proper element fit. What it does

• Holds the surface heating element in place under the cooktop or in the drip pan.
• Maintains stable mechanical and electrical contact so the element heats evenly.
• Prevents element wobble, movement, or poor seating that can cause intermittent heating.
• Commonly needed when an element drops, rattles, or fails to make solid contact.

• Disconnect power to the appliance before starting any repair.
• Remove the element and/or drip pan per the range service instructions to access the spring.
• Install the spring in the same orientation as the original; ensure the element seats fully and securely.

Used on the 2500 watt element

This insulation panel fits inside the refrigerator cabinet to help reduce heat transfer and improve overall cooling efficiency. It also dampens noise and helps maintain more consistent internal temperatures. What it does

• Provides thermal insulation to limit heat gain and reduce compressor runtime.
• Helps reduce rattling and other cabinet-borne noise.
• Supports even cooling by insulating cold compartments from surrounding warm surfaces.
• Can prevent localized warm spots when installed intact.

• Disconnect power before starting and work with the fresh, empty appliance.
• Installation typically requires removing interior liners or panels.
• Handle carefully to avoid tearing or compressing the insulation; wear gloves and eye protection as needed.
• Use manufacturer-recommended fasteners or adhesive if the original used adhesive backing or clips.

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

This wire oven rack restores stable, even support for cookware and bakeware inside the oven cavity so you can cook and roast with correct clearance and airflow. Designed to replace worn, bent or missing oven racks. What it does

• Provides a stable surface for pots, pans and baking sheets during cooking and roasting
• Restores correct rack spacing and airflow for even heating
• Replaces bent, rusted or warped racks that no longer slide or support cookware
• Compatible with standard oven side-rail grooves for easy placement

• One wire oven rack

• Slide the rack into the desired oven rail position until it seats securely; no tools required for typical installations
• Allow the oven to cool completely before removing or installing the rack to avoid burns
• Clean rack per manufacturer instructions; avoid abrasive cleaners that can damage finish
• If the rack is difficult to slide, inspect oven rails for damage or obstructions before forcing

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Thermal Fuse is an OEM part for Frigidaire ovens and ranges. It acts as a safety device that cuts off power to the appliance if it overheats, preventing potential damage or fire hazards. This fuse ensures that the oven operates within safe temperature limits by shutting down the electrical circuit when necessary.

Causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or a malfunctioning oven component that causes overheating. These issues can compromise the integrity of the fuse, rendering it ineffective.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off unexpectedly during use
• No power to the oven

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement light bulb restores bright, dependable illumination inside your oven so you can monitor cooking without opening the door. Swap it in when the oven light is out, very dim, or flickers during use. What it does:

• Illuminates the oven cavity in a range or wall oven
• Lets you check food without opening the door and losing heat
• Common fix for no light, dim light, or intermittent flickering
• Replaces a burned-out/broken bulb as the first step in troubleshooting

• One light bulb

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove the light cover/lens per your model; handle glass components carefully.
• Install the new bulb securely; avoid touching the glass with bare hands—use a clean cloth or gloves.
• Reinstall the cover, restore power, and test the oven light.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
