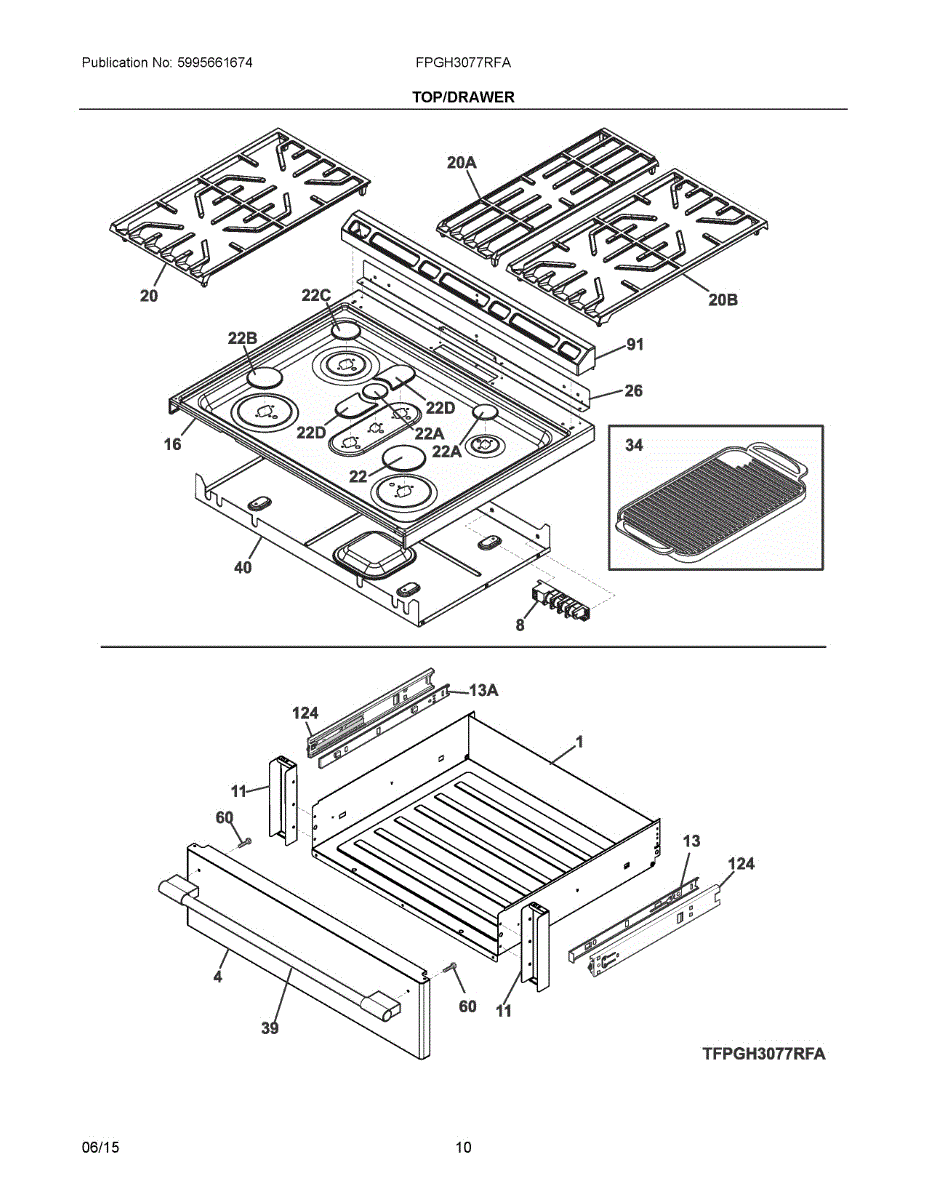

Parts for Electrolux FPGH3077RFA: 05 - Top / Drawer Parts

This spark ignition module controls the spark to gas burners and oven igniters so burners light reliably. Replacing a worn or failed module restores proper ignition and stops repeated clicking or no-spark issues. What it does:

• Sends timed high-voltage sparks to surface burners or oven igniters to initiate combustion
• Coordinates ignition sequence when a burner or bake/broil is turned on
• Commonly linked to symptoms like continuous clicking, no spark, or burners that won't light
• Works with the range/oven's control system to ensure safe ignition operation

• Disconnect electrical power and turn off the gas supply before installing
• Handle the module and connectors carefully; avoid bending pins or contaminating terminals
• After installation, restore power/gas and test all burners for proper ignition and operation

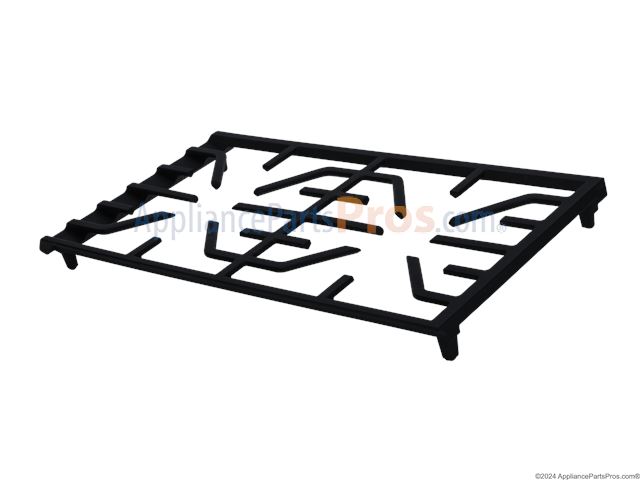

The Grate is an OEM part for Frigidaire ranges. As the cooking surface directly above each burner, this metallic grate distributes heat evenly while allowing burner flames visibility.

Causes of a bad burner grate can include warping or bending from oversized cookware. Gas leaks may develop due to cracks or holes worn through the grate over repeated heating cycles.

Symptoms of a bad range burner grate include:

• Uneven cooking temperatures across the grate surface
• Flames not being visible through obstructions or damage
• Detached or misshapen grates that no longer lay flat
• Potential gas leaks or safety hazards from compromised metal

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

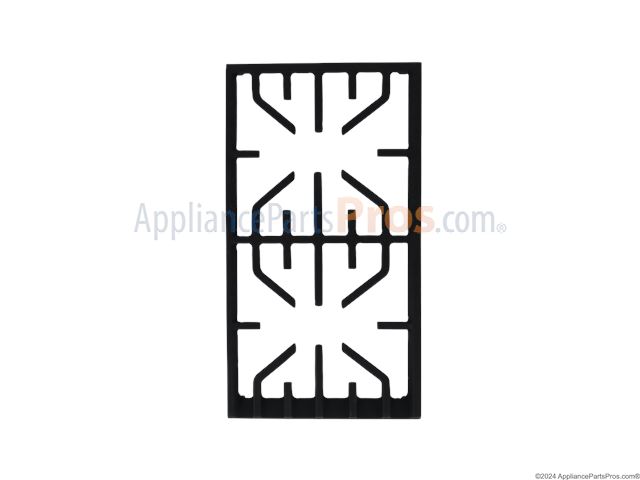

The Grate is an OEM part for Frigidaire ranges and cooktops. It serves as the cooking surface, composed of sturdy grate bars spaced to allow for drainage. This grate is responsible for withstanding high heat levels during cooking and must be durable enough for heavy pans and pots.

Causes of a bad grate can include warping, cracks, or breaks from years of use and exposure to heat. Surface rust and degradation are common and reduce functionality over time.

Symptoms of a bad grate include:

• Warped or misshapen bars that no longer lay flat
• Loose or missing bars that create an uneven cooking surface
• Pans and pots that no longer sit level, causing food to burn more easily
• Rust and deterioration have weakened the grate structurally

This OEM Frigidaire grate replacement is compatible with ranges manufactured by Electrolux, Gibson, Kelvinator and select Kenmore models.

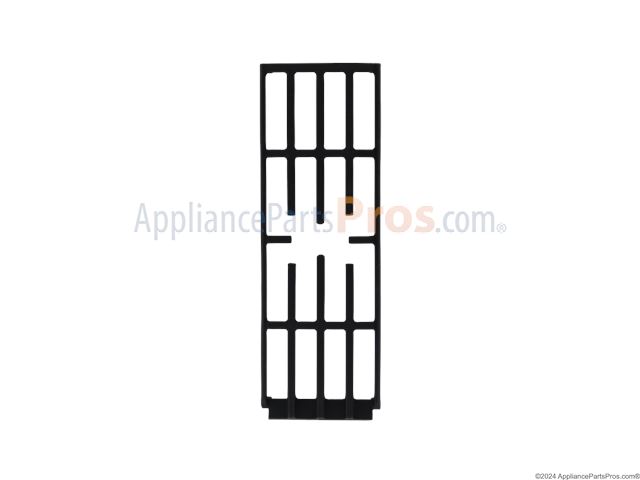

The Grate is an OEM part for Frigidaire ranges and cooktops. It serves as the cooking surface, composed of sturdy grate bars spaced to allow for drainage. This grate is responsible for withstanding high heat levels during cooking and must be durable enough for heavy pans and pots.

Causes of a bad grate can include warping, cracks, or breaks from years of use and exposure to heat. Surface rust and degradation are common and reduce functionality over time.

Symptoms of a bad grate include:

• Warped or misshapen bars that no longer lay flat
• Loose or missing bars that create an uneven cooking surface
• Pans and pots that no longer sit level, causing food to burn more easily
• Rust and deterioration have weakened the grate structurally

This OEM Frigidaire grate replacement is compatible with ranges manufactured by Electrolux, Gibson, Kelvinator and select Kenmore models.

This replacement cap closes and seals an opening on your appliance, restoring a secure fit. Install it when the original cap is cracked, missing, or no longer tight to help prevent leaks and contamination.

• Provides a tight closure for an access, dispenser, or service port
• Helps contain liquids and block debris, lint, and odors
• Maintains proper operation where a sealed cover is required
• Replace if the cap is broken, warped, loose, or lost; leaks or splashes develop around the opening

• Disconnect power and shut off water or gas supplies as applicable
• Remove the old cap and clean the mating surface or threads
• Align and press or thread the new cap until fully seated—do not overtighten
• Restore utilities and check for a snug fit and any leaks

The Range Cap is an OEM part for Frigidaire ranges. It seals the upper combustion chamber to contain heat from the oven burners. A tight-fitting cap is critical for efficient, safe oven performance.  This cap measures 3 inches in diameter.

Causes of a bad cap can include cracks, warping, or collapsed seals from prolonged exposure to high oven temperatures. Accidental damage during past maintenance is also possible.

Symptoms of a bad cap include:

• Escaping heat from the oven chamber, reducing efficiency
• Flames or sparks visible around the cap during baking
• Loose, wobbly, or missing cap allowing grease and debris in the combustion area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Range Cap is an OEM part for Frigidaire ranges and cooktops. This cap covers the burner head, protecting it from spills and ensuring an even distribution of heat. It is designed to fit securely over the burner, maintaining both the efficiency and safety of the cooking process.

Causes of a bad range cap include cracking, chipping, or discoloration from repeated use, which can compromise its function and appearance.

Symptoms of a bad range cap include:

• Uneven flame distribution
• Visible cracks or chips
• Discoloration or burnt spots
• Difficulty in fitting the cap securely over the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Burner Cap is an OEM part for Frigidaire cooktops and ranges. It is designed to cover the burner head, ensuring an even distribution of the flame for efficient cooking. The burner cap also protects the burner head from spills and debris, which can affect performance.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high heat, buildup of food residue, or accidental impacts. A compromised burner cap can lead to uneven flames, inefficient cooking, or difficulty in lighting the burner.

Symptoms of a bad burner cap include:

• Uneven or yellow flames
• Difficulty in igniting the burner
• The burner cap being cracked, chipped, or discolored
• Poor cooking performance or hotspots on cookware

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Burner Cap is an OEM part for Frigidaire gas ranges. It sits atop the surface burner and helps to distribute the gas flame evenly for consistent cooking performance. The cap also protects the burner head from spills and debris.

You should replace this surface burner cap if it becomes damaged or worn out. Signs of damage include chipping, cracking, or discoloration due to prolonged exposure to high temperatures or cleaning agents.

Symptoms of a bad surface burner cap include:

• Uneven or unstable flame
• Difficulty in igniting the burner
• Visible cracks or chips on the cap
• Food cooking unevenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This removable cooktop griddle provides a flat, durable cooking surface for preparing pancakes, sandwiches and other foods over range burners. It restores a smooth, even surface for stovetop griddle cooking when the original is damaged or worn. What it does:

• Replaces a worn, warped or damaged cooktop griddle to restore an even cooking surface
• Provides a flat, continuous surface for foods that need consistent contact with heat
• Helps reduce hot spots and sticking when the original griddle surface is compromised
• Works with compatible range/cooktop configurations that accept a removable griddle plate

• One removable cooktop griddle plate

• Disconnect power to the appliance (and turn off gas if applicable) before handling parts
• Allow the appliance and griddle to cool completely before removal or installation
• Fit the griddle into the cooktop openings so it sits flat and level; verify proper seating before use
• Clean per manufacturer guidance; avoid abrasive tools that can damage the cooking surface

This replacement refrigerator door handle restores a secure grip and fresh appearance to a damaged or worn door. Designed to mount in the original location, it lets you open and close the door smoothly while matching the appliance's original fit. What it does:

• Provides a sturdy grip for opening and closing the refrigerator door.
• Replaces cracked, broken, loose or cosmetically damaged handles.
• Helps restore proper door operation by giving a solid attachment point for normal use.
• Matches original mounting points to align with the existing door hardware.

• Disconnect power or unplug the appliance before starting and work on a stable surface.
• Support the door while removing and reinstalling hardware to prevent it from shifting or falling.
• Use basic hand tools (screwdriver/socket) to remove existing fasteners; reuse original screws if undamaged.
• Tighten mounting screws securely but avoid over-torquing to prevent damage to the handle or door.

A replacement 10-24 x 5/8 screw used to fasten interior and exterior appliance components. Simple, direct-fit hardware that restores secure mounting where a worn or missing machine screw is causing loose panels or trim. What it does:

• Secures panels, brackets, and trim pieces to prevent rattling and misalignment
• Replaces stripped, rusted, or lost screws that cause loose or vibrating parts
• Restores proper attachment for components that won't stay in place
• Works wherever a 10-24 x 5/8 machine screw is required

• One 10-24 x 5/8 screw

• Use the correct driver and steady pressure to avoid stripping the head or threads
• Tighten until snug; avoid over-tightening which can damage mating parts
• Disconnect power to the appliance before working on electrical or moving components
• Replace the receiving nut or insert as needed for a secure fit

This replacement wire restores a damaged or broken electrical connection so the appliance can receive power and operate reliably. It provides a direct, OEM-matching conductor for restoring circuit continuity. What it does:

• Replaces a damaged or frayed wire that can interrupt power to controls, motors, or lights
• Restores a reliable electrical connection to stop intermittent operation or failure to start
• Prevents arcing or poor contact caused by corrosion, breaks, or exposed conductors
• Matches OEM fit and function for a direct replacement when routing and connectors align

• One replacement wire as shown

• Disconnect power to the appliance before beginning any work
• Use proper crimping or connector tools if splice/terminal replacement is required; secure wire away from heat and moving parts
• If connectors, insulation, or surrounding components show damage, replace them as well

This rubber bumper cushions doors and panels to reduce noise, prevent metal-on-metal contact, and protect finishes for smoother, quieter operation. Replace worn or missing bumpers to help restore proper seating and reduce rattling. What it does:

• Absorbs shock between moving parts to prevent bangs and scratches
• Keeps doors and panels aligned for a tighter seal and quieter close
• Reduces vibration and rattling during operation
• Helps protect painted or plated surfaces from wear at contact points

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Typically a push-in or snap-in replacement; press into the original mounting hole until seated
• Inspect nearby bumpers and replace in matched sets if others are cracked or missing

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

Size: 3/4 inch od x 1/4 inch id.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
