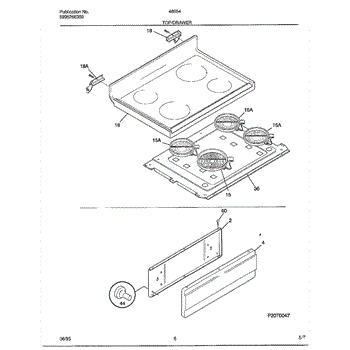

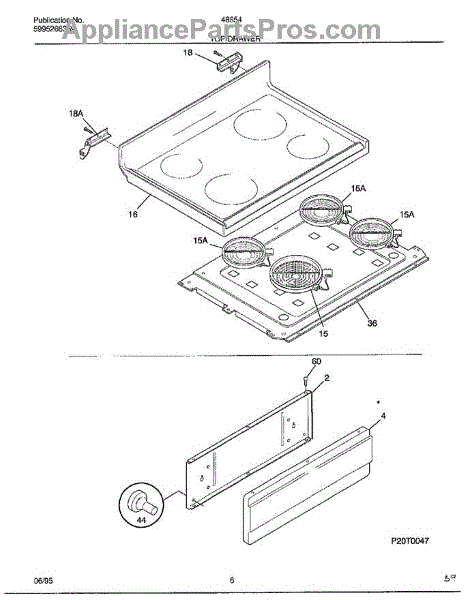

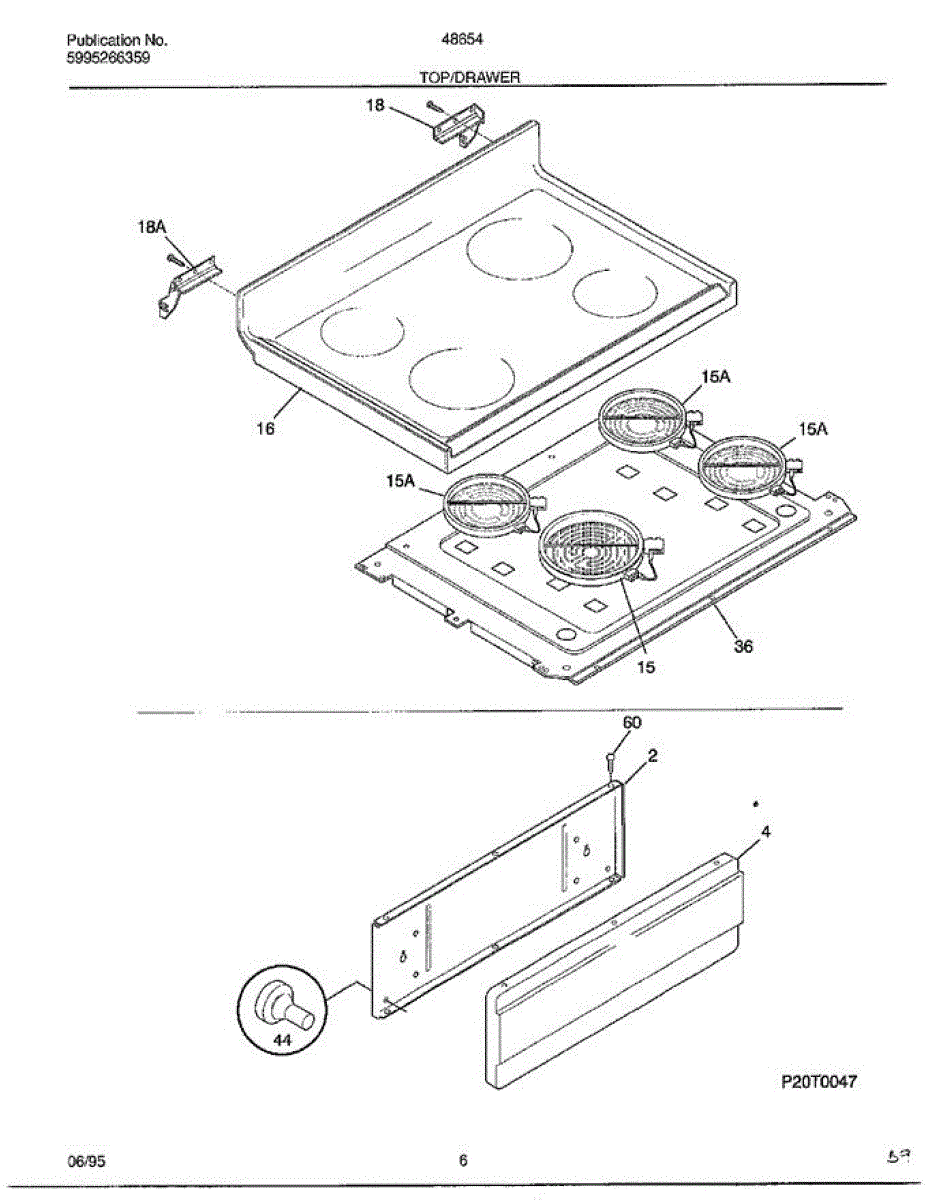

Parts for Frigidaire 486540A: Top / Drawer Parts

The Surface Element is an OEM replacement part for Frigidaire electric ranges, designed to provide efficient and even heating for cooking on the stovetop. This component is a radiant surface element commonly seen on glass and ceramic cooktops. 8 inch, 2200 watt

Causes of a faulty Surface Element can be due to overuse causing burnout, physical damage like cracks from heavy cookware, electrical issues such as faulty wiring, and corrosion disrupting heating.

Symptoms of a bad Surface Element include:

• Not heating up, indicating it may be burnt out or disconnected.
• Heating irregularly or only partially, suggesting there might be damage to the element.
• Taking longer than usual to heat up, which could point to electrical issues or reduced efficiency due to wear and tear.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small spring clip secures the oven bake/hidden element to the range housing, keeping the heating element properly positioned for consistent operation and preventing movement or rattling during use. What it does:

• Holds the oven element in place at the mounting bracket so the element stays aligned
• Prevents the element from shifting, vibrating, or making contact with other components
• Helps maintain a stable electrical and mechanical connection at the element mounting point
• Commonly replaced when clip is broken, bent, or missing and the element won't stay seated

• One spring mounting clip

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Access usually requires removing the oven bottom, back panel, or element mounting bracket—support the element while removing/installing clips.
• Use gloves and eye protection; clips are spring-loaded and may release suddenly.
• Replace only the clips that are broken or missing; fit before restoring power.

no.8 - 10 , 3/8 phillips
