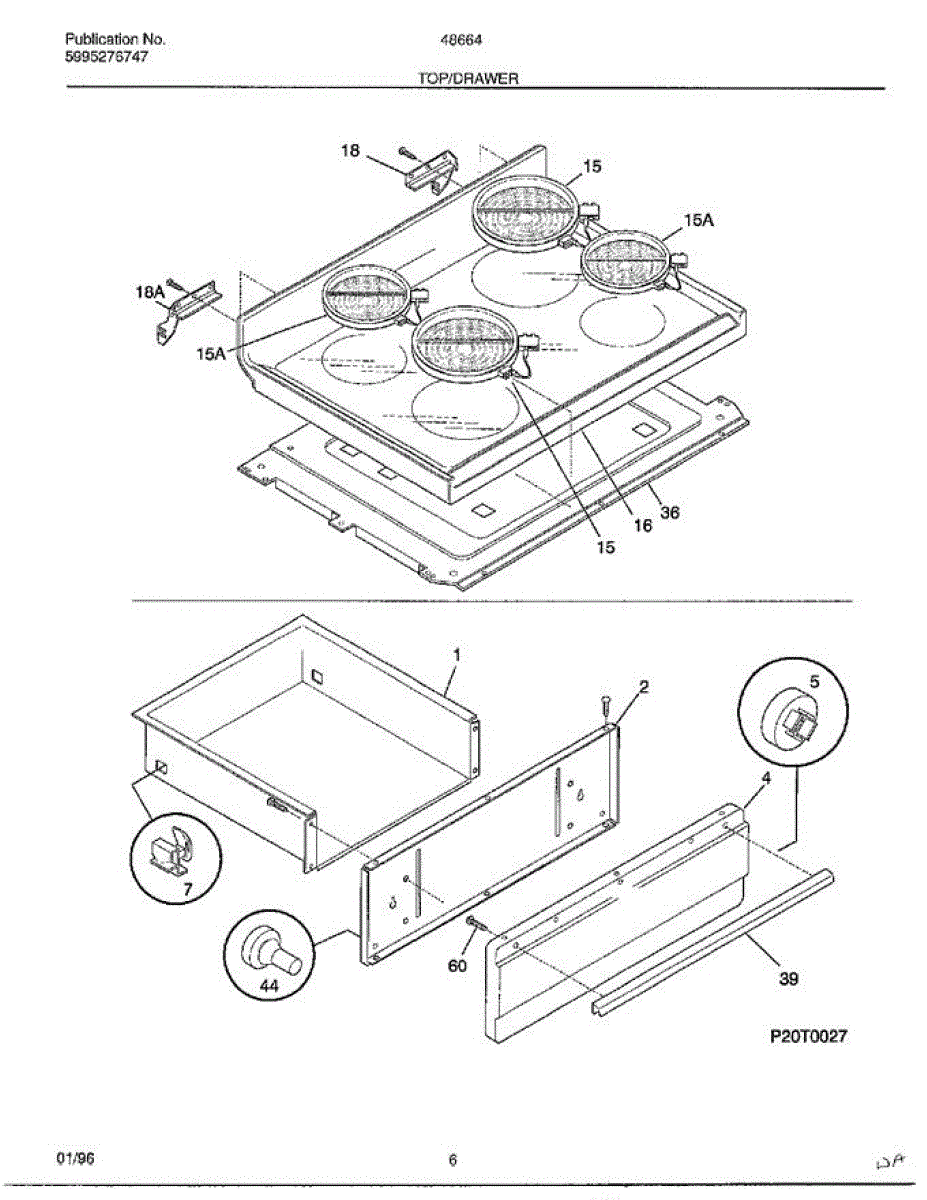

Parts for Frigidaire 486647E: Top / Drawer Parts

Rear drawer glide for range storage drawers. Mounts to the back of the drawer to enable smooth sliding. Replace if broken, cracked, or missing.

The Surface Element is an OEM replacement part for Frigidaire electric ranges, designed to provide efficient and even heating for cooking on the stovetop. This component is a radiant surface element commonly seen on glass and ceramic cooktops. 8 inch, 2200 watt

Causes of a faulty Surface Element can be due to overuse causing burnout, physical damage like cracks from heavy cookware, electrical issues such as faulty wiring, and corrosion disrupting heating.

Symptoms of a bad Surface Element include:

• Not heating up, indicating it may be burnt out or disconnected.
• Heating irregularly or only partially, suggesting there might be damage to the element.
• Taking longer than usual to heat up, which could point to electrical issues or reduced efficiency due to wear and tear.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

This part has been discontinued and is no longer available.

This small spring clip secures the oven bake/hidden element to the range housing, keeping the heating element properly positioned for consistent operation and preventing movement or rattling during use. What it does:

• Holds the oven element in place at the mounting bracket so the element stays aligned
• Prevents the element from shifting, vibrating, or making contact with other components
• Helps maintain a stable electrical and mechanical connection at the element mounting point
• Commonly replaced when clip is broken, bent, or missing and the element won't stay seated

• One spring mounting clip

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Access usually requires removing the oven bottom, back panel, or element mounting bracket—support the element while removing/installing clips.
• Use gloves and eye protection; clips are spring-loaded and may release suddenly.
• Replace only the clips that are broken or missing; fit before restoring power.

Rubber bumper that cushions the range door or drawer when closing. Replace if cracked, worn, or missing to prevent rattling and protect surfaces.

Replacement screw for securing range handles. Needed when the original screw is stripped, rusted, broken, or missing. Installs on the door handle.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
