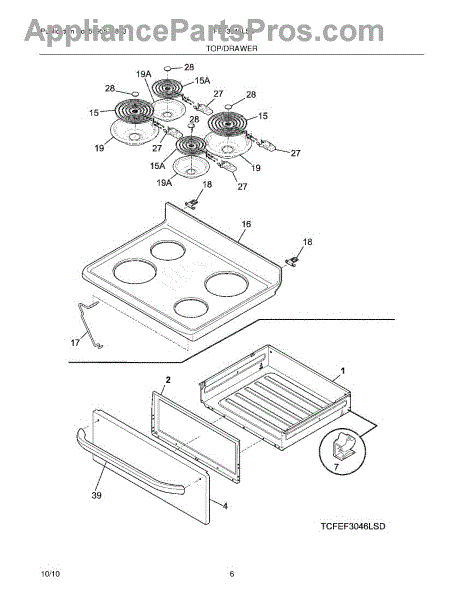

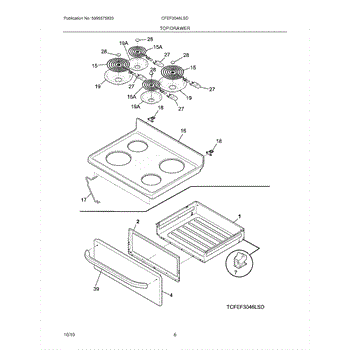

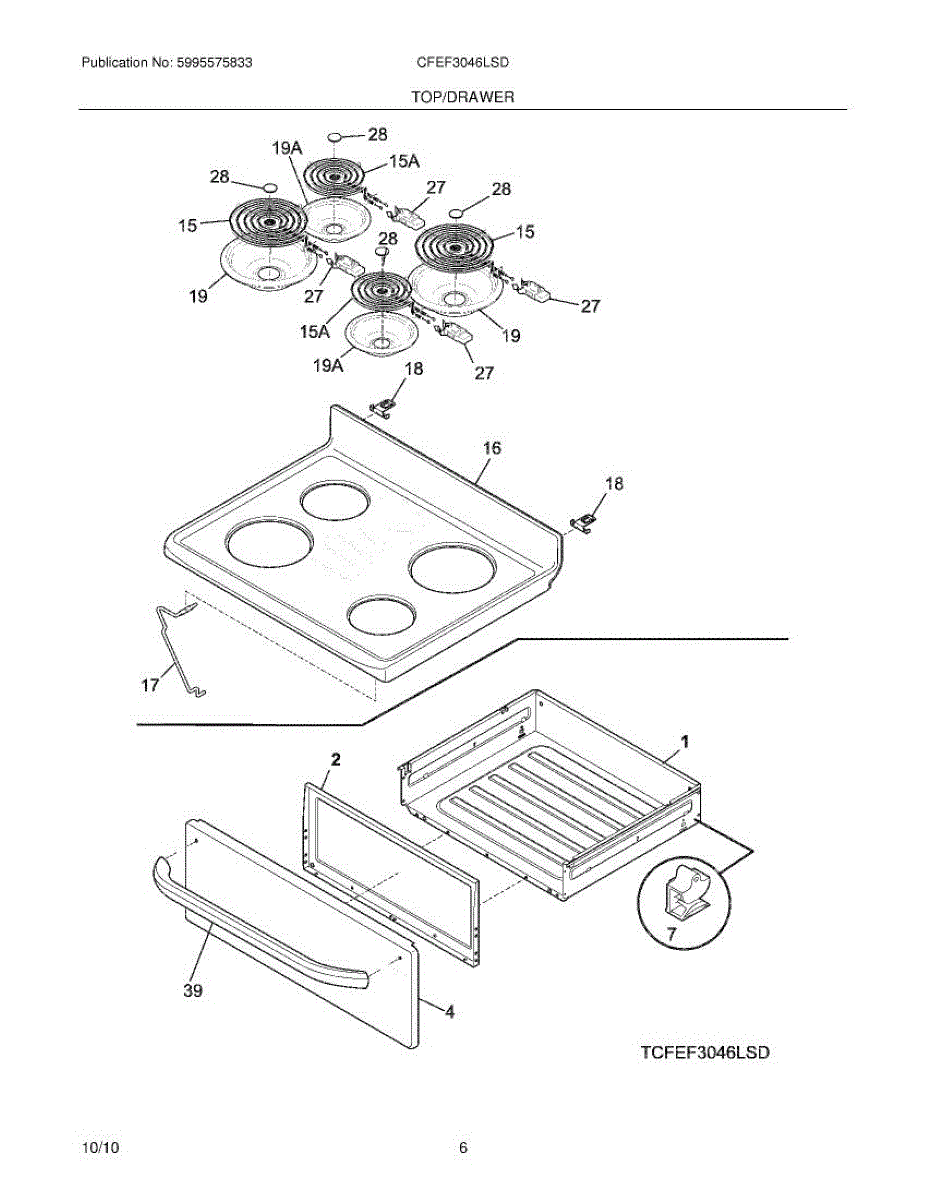

Parts for Frigidaire CFEF3046LSD: 07 - Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner replaces a damaged or worn cabinet surface to restore a clean, smooth interior and support shelves and drawers. It helps maintain a sanitary storage area and a proper fit for accessories. What it does:

• Provides a smooth, easy-to-clean interior surface for the fresh food compartment
• Restores mounting surfaces for shelves, bins and trim pieces
• Prevents drafts and moisture intrusion where cracks or gaps exist
• Addresses symptoms like visible cracks, gouges, or a warped/loose interior liner

• One refrigerator interior liner

• Disconnect power to the appliance before beginning any repair
• Removal typically requires taking out shelves, trim and fasteners to access the liner
• May require adhesive, clips or screws specific to the model—keep original fasteners and hardware

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a Frigidaire main top for electric ranges. It sits beneath and holds the range's heating elements. If this part is damaged, it's usually obvious. It may dent or in some extreme cases, rust, and should be replaced if it's no longer able to hold heating elements.Before installing this part, make sure that power to the stove is cut, and do not begin repairs until the range is completely cool. A screwdriver, nut driver, and small dowel rod may be needed to install this part. Start by removing each heating element and drip pan. The old cooktop should be held in place with a number of screws or mounting brackets, the first of which may need to be accessed from inside the oven. Mounting hardware must be removed from the old cooktop and installed in the new one before putting the new cooktop in place.This is a genuine OEM part compatible with ranges from Frigidaire brands, including Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. This product includes no additional hardware.

Main top support rod.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

This is the stainless steel oven door handle. It lets you safely open and close the oven door and restores a secure, finished look when the original handle is broken, loose, or missing.

• Provides a sturdy grip to operate the oven door
• Helps ensure the door opens/closes smoothly
• Common failure signs: loose handle, broken end caps/mounts, missing or damaged handle
• Cosmetic refresh for a worn or scratched handle

• Disconnect power and allow the oven to cool completely before servicing
• Remove interior door screws to access the handle mounts
• Support the door glass to prevent stress while removing/installing hardware
• Reuse existing screws and trim/end caps or replace them if worn or damaged

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This factory wire harness routes electrical power and signals between the controls and internal components of your cooking appliance. Replacing a burned or brittle harness restores safe, reliable connections and helps prevent shorts or intermittent operation.

• Distributes power and control signals between the user interface/control system and internal components
• Replaces damaged wires or connectors that can cause no operation or intermittent function
• Helps address short-to-ground conditions that trip a household breaker
• Restores proper routing to reduce wire chafing and heat exposure

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph/label connections and transfer one connector at a time to match original locations
• Route along factory paths and secure with existing clips/ties; keep clear of sharp edges and hot surfaces
• Inspect mating terminals for heat damage and repair/replace affected parts before reassembly
