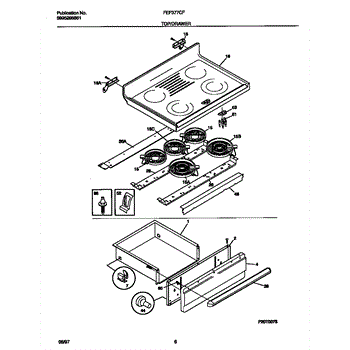

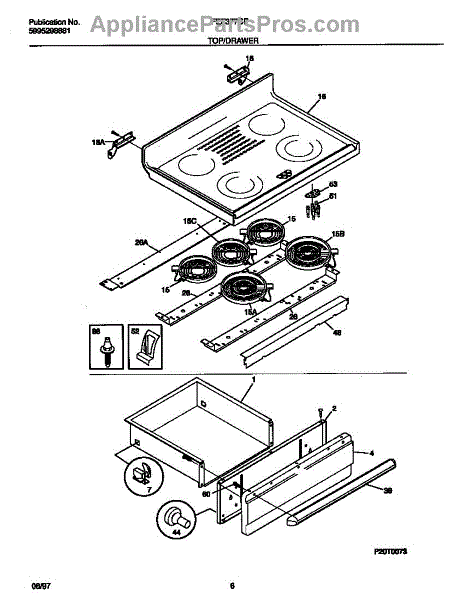

Parts for Frigidaire FEF377CFBB: 04 - Top / Drawer Parts

The Rear Drawer Glide is an OEM part for Frigidaire ovens and ranges. It is designed to provide smooth movement for the oven's rear drawer. The rear drawer glide allows the drawer to slide in and out with ease, providing convenient access to storage space or broiler pans. This is the glide that attaches to the rear of the oven drawer. For front glide that attaches to the body use 3051162. Two front and two rear are used for each stove. One for each corner.

Causes of a bad rear drawer glide can include normal wear and tear over time or accidental damage. When the glide becomes defective, it can lead to difficulties in smoothly opening or closing the drawer.

Symptoms of a bad rear drawer glide include:

• Difficulty in sliding the drawer in or out.
• Uneven movements or sticking of the drawer.
• Excessive noise or scraping sounds when operating the drawer.
• The drawer not staying securely closed or aligned.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a 9 inch, Dual 700 and 2100 watt, radiant heating element. Includes limit switch.

This is a 100 watt, 120 volt surface warming element. Includes limiter.

This dual surface element restores steady, selectable heat to a cooking zone on your electric range or cooktop. It provides two heating areas in one burner position so you can match heat output to small or larger cookware.

• Heats cookware by energizing the inner ring alone or both inner and outer rings together
• Helps resolve issues such as a surface burner not heating, only one ring heating, or intermittent/uneven heat
• Replaces a cracked, blistered, or visibly damaged element to restore reliable performance

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element from beneath the cooktop; photograph wire locations for reference
• Carefully transfer any brackets, clips, or attached limiter from the original element if required
• Avoid touching the element surface; secure all connections and test both inner and dual settings after reassembly

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Color: Black. Approx. 29" long.

no.8 - 10 , 3/8 phillips

Size: 10-32 x 0.312 inch. Color: Black.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.
