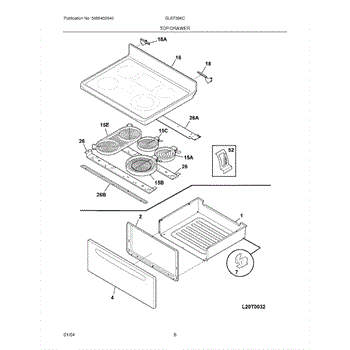

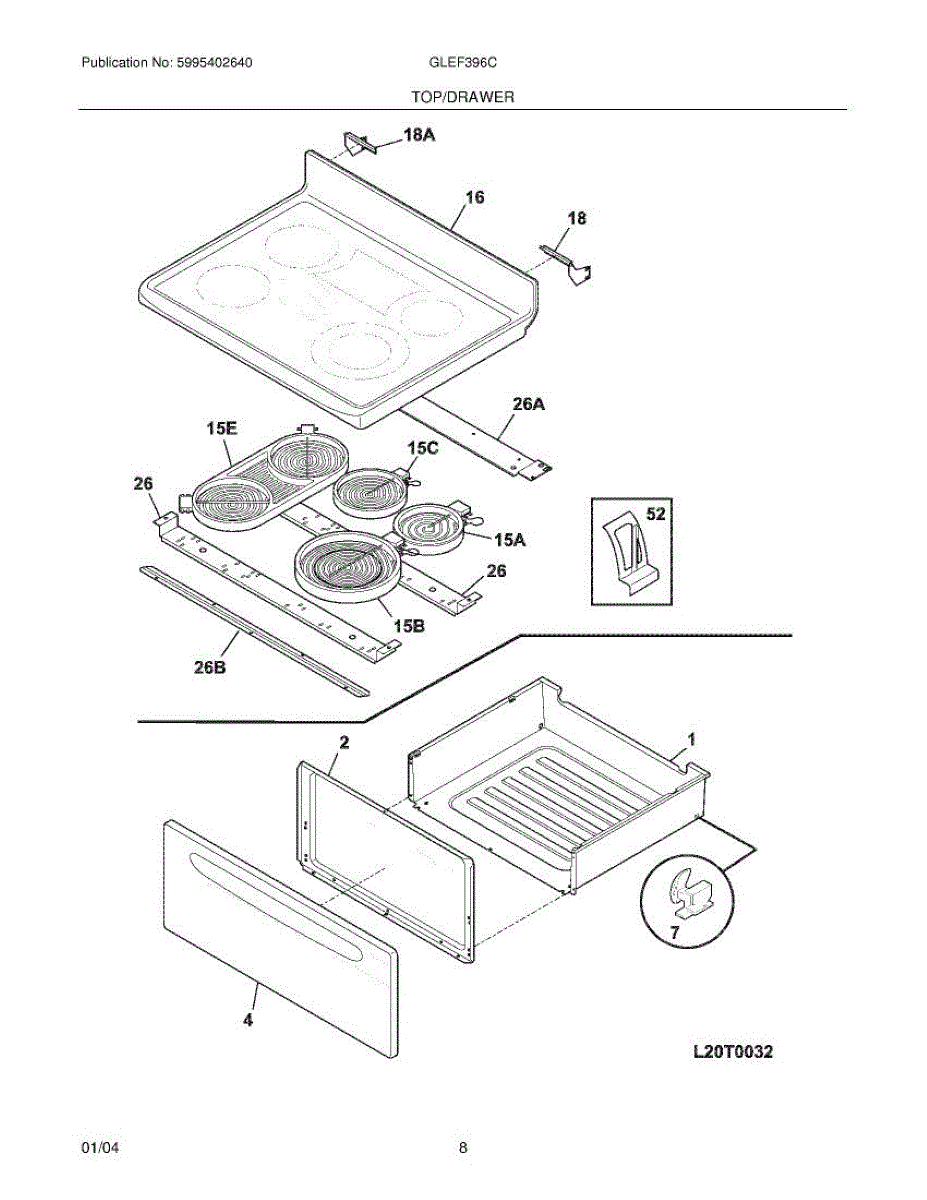

Parts for Frigidaire GLEF396CSD: 07 - Top / Drawer Parts

The Rear Drawer Glide is an OEM part for Frigidaire ovens and ranges. It is designed to provide smooth movement for the oven's rear drawer. The rear drawer glide allows the drawer to slide in and out with ease, providing convenient access to storage space or broiler pans. This is the glide that attaches to the rear of the oven drawer. For front glide that attaches to the body use 3051162. Two front and two rear are used for each stove. One for each corner.

Causes of a bad rear drawer glide can include normal wear and tear over time or accidental damage. When the glide becomes defective, it can lead to difficulties in smoothly opening or closing the drawer.

Symptoms of a bad rear drawer glide include:

• Difficulty in sliding the drawer in or out.
• Uneven movements or sticking of the drawer.
• Excessive noise or scraping sounds when operating the drawer.
• The drawer not staying securely closed or aligned.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a 100 watt, 120 volt surface warming element. Includes limiter.

This surface element installs beneath the glass cooktop and provides heat for a single cooking zone. Replacing a failed element restores responsive, even heating and dependable temperature control on your smoothtop range or cooktop.

• Generates radiant heat under the ceramic glass to cook food on the selected burner zone
• Common fixes: surface burner won't heat, heats unevenly, or works intermittently
• Replace if the element shows visible damage, hot spots, or burn marks beneath the glass
• Helps address long heat-up times on the affected zone

• Disconnect power at the breaker or unplug the appliance before servicing
• Lift/hinge the cooktop or remove the glass top to access the elements; support the glass to prevent damage
• Move wires from the old element to the new one one at a time to maintain correct connections
• Reuse existing mounting hardware/brackets; handle the ceramic element carefully to avoid cracks

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the right side hinge. For left side hinge use 316235901.

This is the left side hinge. For right side hinge use 316235900.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
