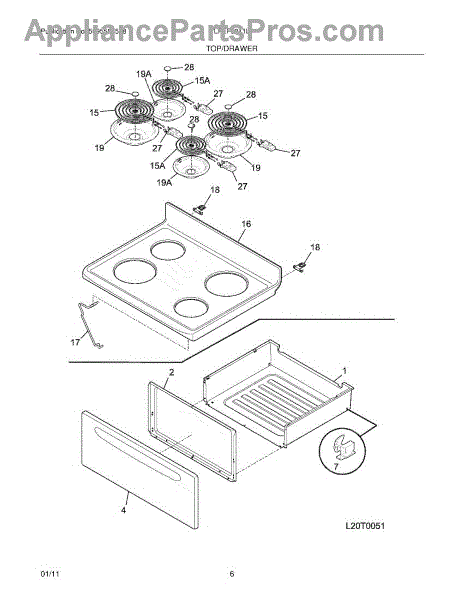

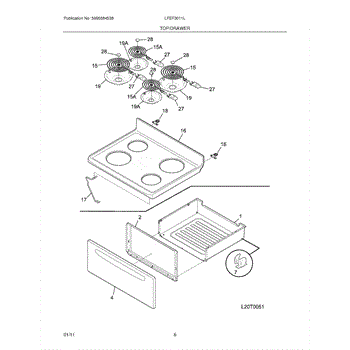

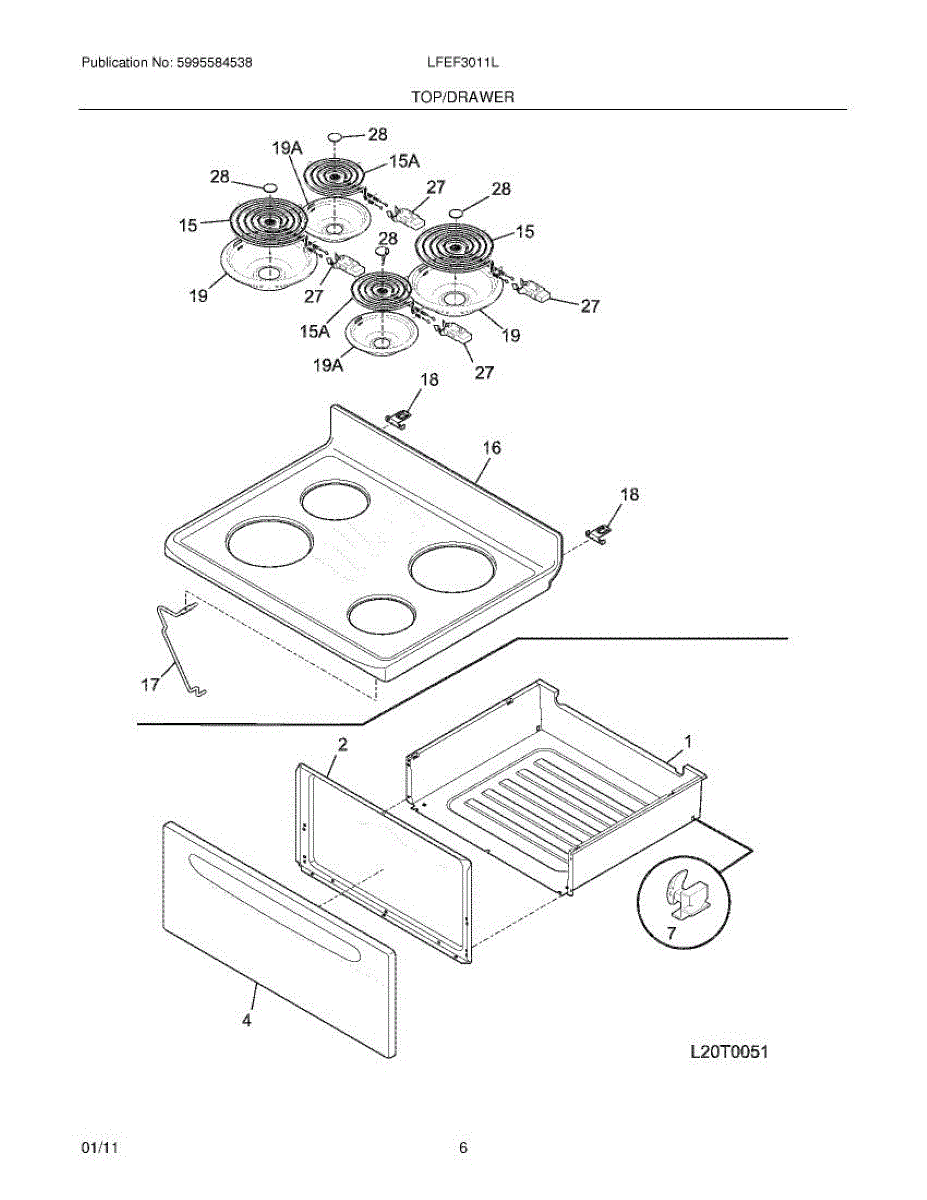

Parts for Frigidaire LFEF3011LBD: 07 - Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner provides the finished, easy-to-clean surface for the fresh food compartment and helps support shelves and bins. It restores the cabinet interior to factory condition for proper fit and appearance. What it does:

• Replaces a cracked, warped, or stained interior cabinet surface.
• Provides a smooth, washable surface that helps keep food area sanitary.
• Supports mounted shelves, drawers, and trim pieces in the compartment.
• Restores proper alignment and sealing where the liner mates to refrigerator components.

• Disconnect power and remove all food and removable shelves/bins before starting.
• Typical installation requires removal of trim and fasteners; keep hardware accessible for reassembly.
• Handle carefully to avoid scratching the finished surface and to prevent injury from sharp edges.

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a vital component that provides the heat necessary for cooking. This element is designed to heat up quickly and maintain a consistent temperature, offering precise control to accommodate various cooking needs, from simmering sauces to boiling water. This element measures 8 inches.

Symptoms of a bad Coil Surface Element include:

• Element not heating up at all or only heating partially
• Inconsistent temperatures, making cooking unpredictable
• Visible damage or warping to the element
• Electrical sparking when turned on

Causes of a bad Coil Surface Element can include prolonged use leading to element burnout, a faulty connection between the element and the stove’s electrical source, or physical damage that disrupts the coil’s continuity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Surface Element is an OEM replacement part for Frigidaire electric ranges. It is a crucial component that generates heat for cooking on the stovetop surface.

Symptoms of a bad range surface element include:

• Uneven or insufficient heating of cookware
• Element failing to heat up or taking an excessive amount of time to reach the desired temperature
• Visible signs of damage, such as cracks or warping on the element's surface
• Unusual smells or noises coming from the element during use

Causes of a bad surface element can range from electrical malfunctions to physical damage caused by impact or exposure to excessive heat over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a Frigidaire main top for electric ranges. It sits beneath and holds the range's heating elements. If this part is damaged, it's usually obvious. It may dent or in some extreme cases, rust, and should be replaced if it's no longer able to hold heating elements.Before installing this part, make sure that power to the stove is cut, and do not begin repairs until the range is completely cool. A screwdriver, nut driver, and small dowel rod may be needed to install this part. Start by removing each heating element and drip pan. The old cooktop should be held in place with a number of screws or mounting brackets, the first of which may need to be accessed from inside the oven. Mounting hardware must be removed from the old cooktop and installed in the new one before putting the new cooktop in place.This is a genuine OEM part compatible with ranges from Frigidaire brands, including Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. This product includes no additional hardware.

Main top support rod.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

Size: 6-20 x 0.312 inch.

This factory wire harness routes electrical power and signals between the controls and internal components of your cooking appliance. Replacing a burned or brittle harness restores safe, reliable connections and helps prevent shorts or intermittent operation.

• Distributes power and control signals between the user interface/control system and internal components
• Replaces damaged wires or connectors that can cause no operation or intermittent function
• Helps address short-to-ground conditions that trip a household breaker
• Restores proper routing to reduce wire chafing and heat exposure

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph/label connections and transfer one connector at a time to match original locations
• Route along factory paths and secure with existing clips/ties; keep clear of sharp edges and hot surfaces
• Inspect mating terminals for heat damage and repair/replace affected parts before reassembly

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
