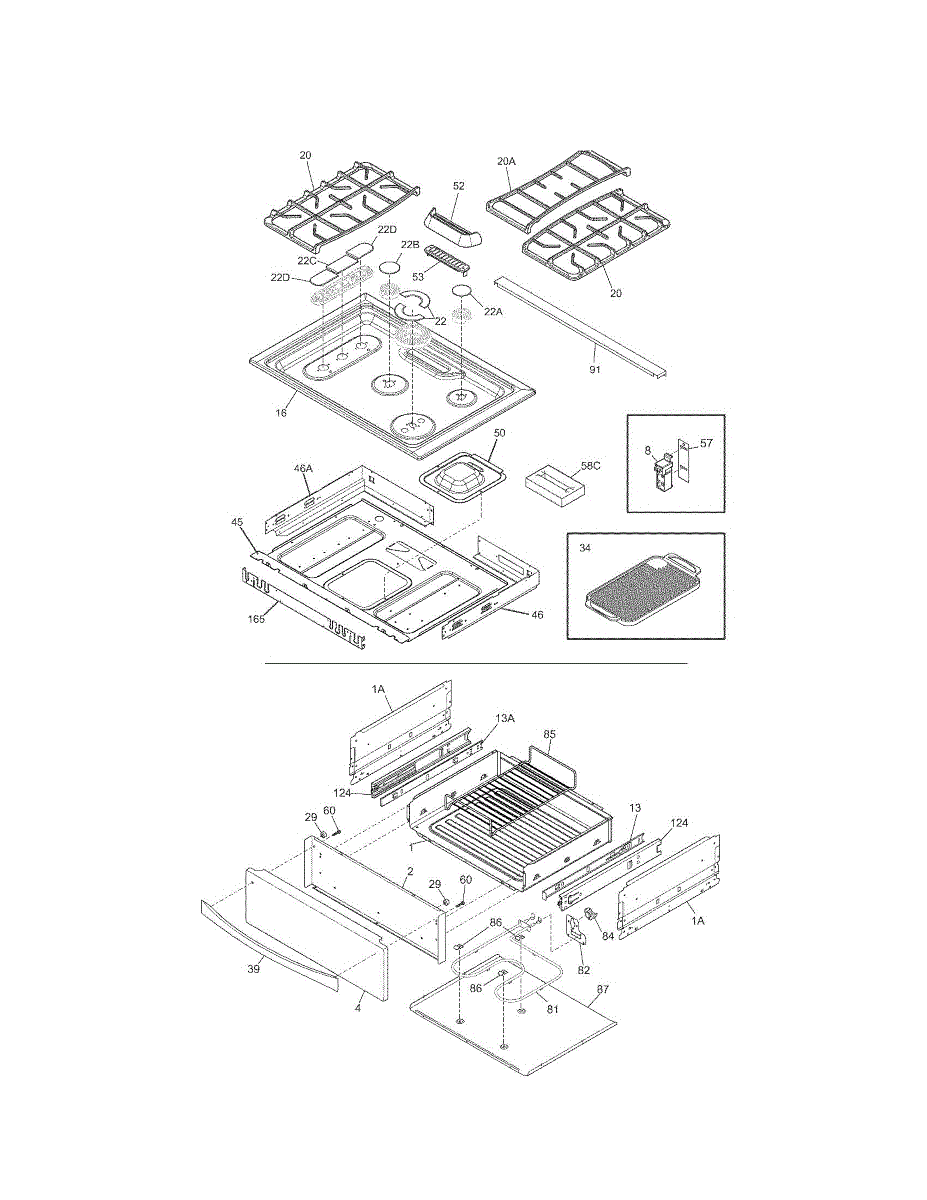

Parts for Kenmore 790.31063100 (79031063100, 790 31063100): Top / Drawer Parts

This is a metal or finished side panel that attaches to the warming drawer section of the range. It provides structural support and a clean exterior appearance on the side of the drawer compartment. Replace this panel if it is dented, scratched, rusted, or missing, which can affect both the look and proper operation of the warming drawer.

Control panel trim for your range. Replaces cracked, broken, or discolored trim pieces. Installs on the front console to restore appearance.

Gas burners won't ignite and there's no clicking sound? The spark module provides the electrical spark to light all burners. DIY repair in under 1 hour.

Replace your range grate if it's cracked, broken, warped, or missing. This surface grate sits on top of the burner to support cookware during cooking.

Burner cap that sits on top of the gas burner head on your range cooktop. Replace if cracked, chipped, discolored, or missing to restore even heat distribution.

Protective burner cap that sits on top of the gas burner head. Replace if cracked, chipped, discolored, or missing to protect the burner assembly.

Replacement burner cap for gas range cooktops. Sits atop the burner head to distribute flame evenly. Replace if cracked, damaged, or missing after moves.

Replacement burner cap for gas ranges and cooktops. Covers the burner head and protects from spills. Needed when cap is cracked, broken, or missing.

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

This is a stainless steel door handle for a range or oven. It provides a grip point for opening and closing the oven door during everyday use. Replace this handle if it is cracked, loose, broken at the mounting points, or if the finish is worn or damaged.

Insulation panel for gas ranges. Installs inside the range cavity to provide sound dampening and thermal protection. Replace if torn, damaged, or missing.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Oven not heating to set temperature or heating too slowly? This thermostat controls oven temperature cycling. Test for continuity to diagnose the issue.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Replace your range's control panel if the original is cracked, damaged, or showing wear. This panel mounts to the front and houses control components.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

This wiring harness is the factory-style electrical assembly that connects appliance controls and components for reliable power and signal routing. Replacing a damaged harness restores proper electrical connections and helps resolve intermittent or failed operation. What it does:

• Routes power and control signals between the control module and components
• Restores reliable electrical connections when wires or connectors are damaged
• Helps correct symptoms such as intermittent power, failed cycles, or non-responsive controls
• Prevents shorts and arcing caused by exposed or frayed wiring when correctly installed

• Disconnect power (unplug appliance or switch off breaker) before servicing to avoid shock or injury
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use proper strain relief and routing to prevent chafing or contact with sharp edges

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Mounting screw secures heating element to cooktop surface. Replace if stripped, rusted, or missing to ensure proper element installation and stability.

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
