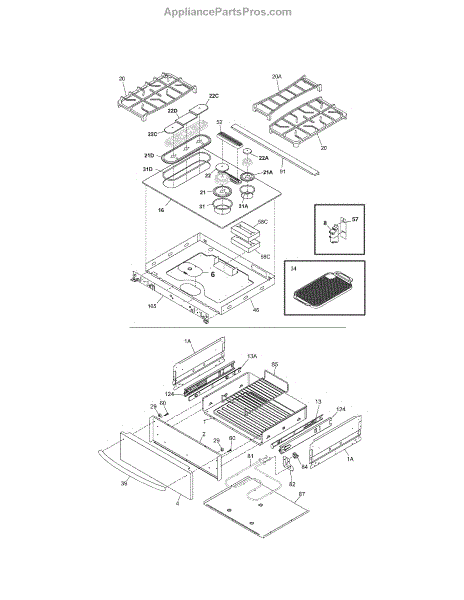

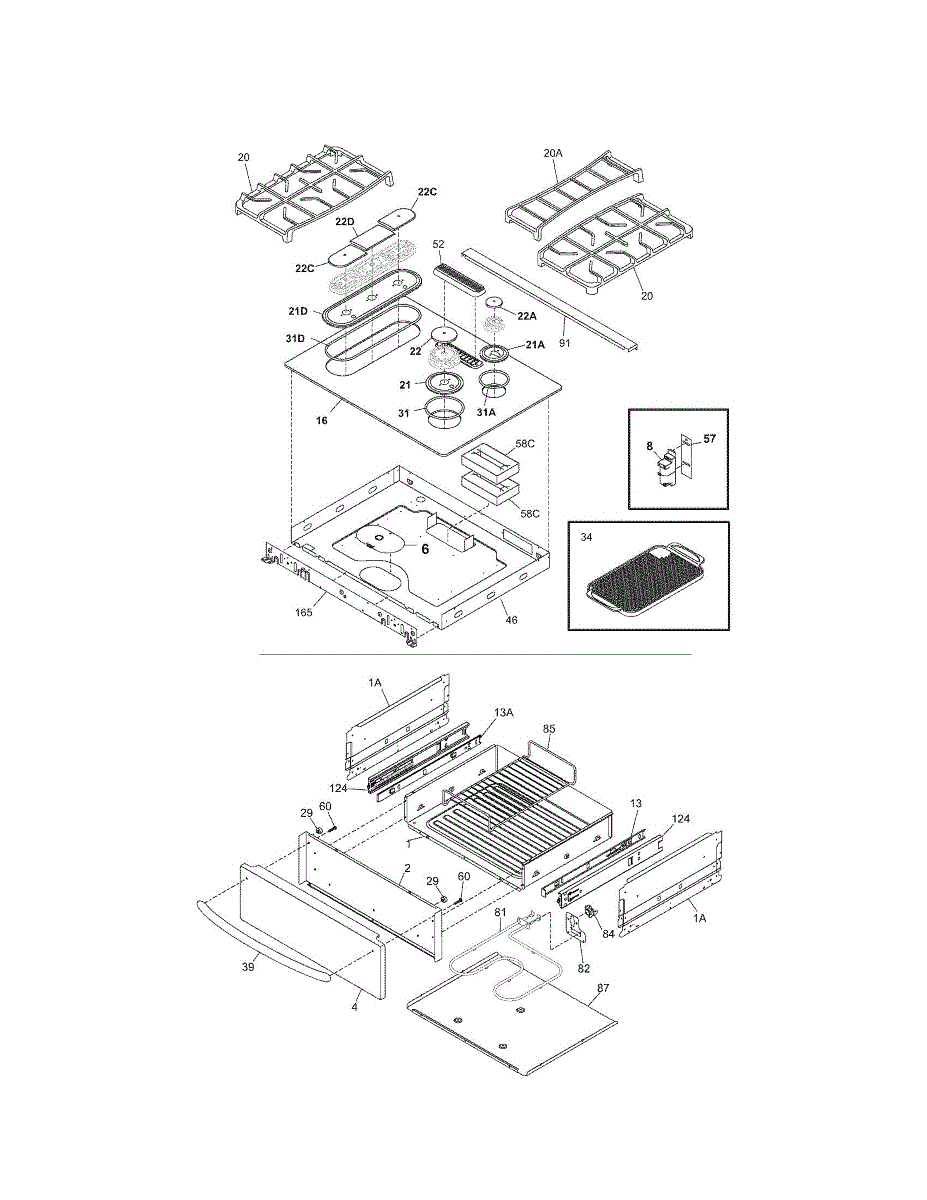

Parts for Kenmore 790.36714501 (79036714501, 790 36714501): Top / Drawer Parts

This is a metal or finished side panel that attaches to the warming drawer section of the range. It provides structural support and a clean exterior appearance on the side of the drawer compartment. Replace this panel if it is dented, scratched, rusted, or missing, which can affect both the look and proper operation of the warming drawer.

Replaces cracked, broken, or damaged control panel trim on your range. This decorative panel covers the control area and restores a clean finish.

This is the front panel for the storage drawer located beneath the oven compartment. It serves as the visible face of the drawer and provides structural support for the drawer assembly. Replace this panel if it is cracked, warped, discolored, or if the finish has peeled or chipped.

Gas burners won't ignite? A faulty spark module may be the issue. This part sends electrical current to igniters. DIY-friendly, takes minutes.

Low-friction slide piece that supports moving components in your range or wall oven. Replace worn or cracked glides to restore smooth operation.

Low-friction glide that supports and guides range drawer movement. Replace if cracked, broken, or worn to restore smooth sliding without sticking or scraping.

Drip pan skirt that fits under the burner bowl on your cooktop. Replace if the original is cracked, damaged, or missing to maintain proper appearance.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

Seals around cooktop burner to prevent spills from entering burner housing and centers burner for even heating. Replace when hardened or cracked.

Seals the burner to the cooktop surface, preventing spills from entering the assembly and keeping flames aligned. Replace when degraded or damaged.

Replacement handle for your range door. Installs on the front exterior to provide a grip for opening and closing. Order if your current handle is cracked or broken.

Replacement door handle for your range. Installs on the oven door to provide grip for opening and closing. Order a new handle if yours is cracked or broken.

Replacement insulation for range oven doors. Installs between door panels to retain heat and improve efficiency. Replace if compressed, torn, or missing.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Oven not heating to set temperature or heating too slowly? This thermostat controls oven temperature cycling. Test for continuity to diagnose the issue.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Replace your range's control panel if the original is cracked, damaged, or showing wear. This panel mounts to the front and houses control components.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Decorative trim piece that covers mounting edges on your range door or control panel. Replaces scratched, dented, or missing trim for a clean finish.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

This wiring harness is the factory-style electrical assembly that connects appliance controls and components for reliable power and signal routing. Replacing a damaged harness restores proper electrical connections and helps resolve intermittent or failed operation. What it does:

• Routes power and control signals between the control module and components
• Restores reliable electrical connections when wires or connectors are damaged
• Helps correct symptoms such as intermittent power, failed cycles, or non-responsive controls
• Prevents shorts and arcing caused by exposed or frayed wiring when correctly installed

• Disconnect power (unplug appliance or switch off breaker) before servicing to avoid shock or injury
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use proper strain relief and routing to prevent chafing or contact with sharp edges

This 15-ounce grate cleaner removes grease, food residue, and burnt-on stains from your range's cooking grates. The four-pack provides enough cleaner for multiple thorough cleanings to restore your grates to like-new condition.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Replacement grate foot kit for gas range burner grates. Includes 8 rubber feet and adhesive. Needed when feet are missing, cracked, melted, or worn.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
