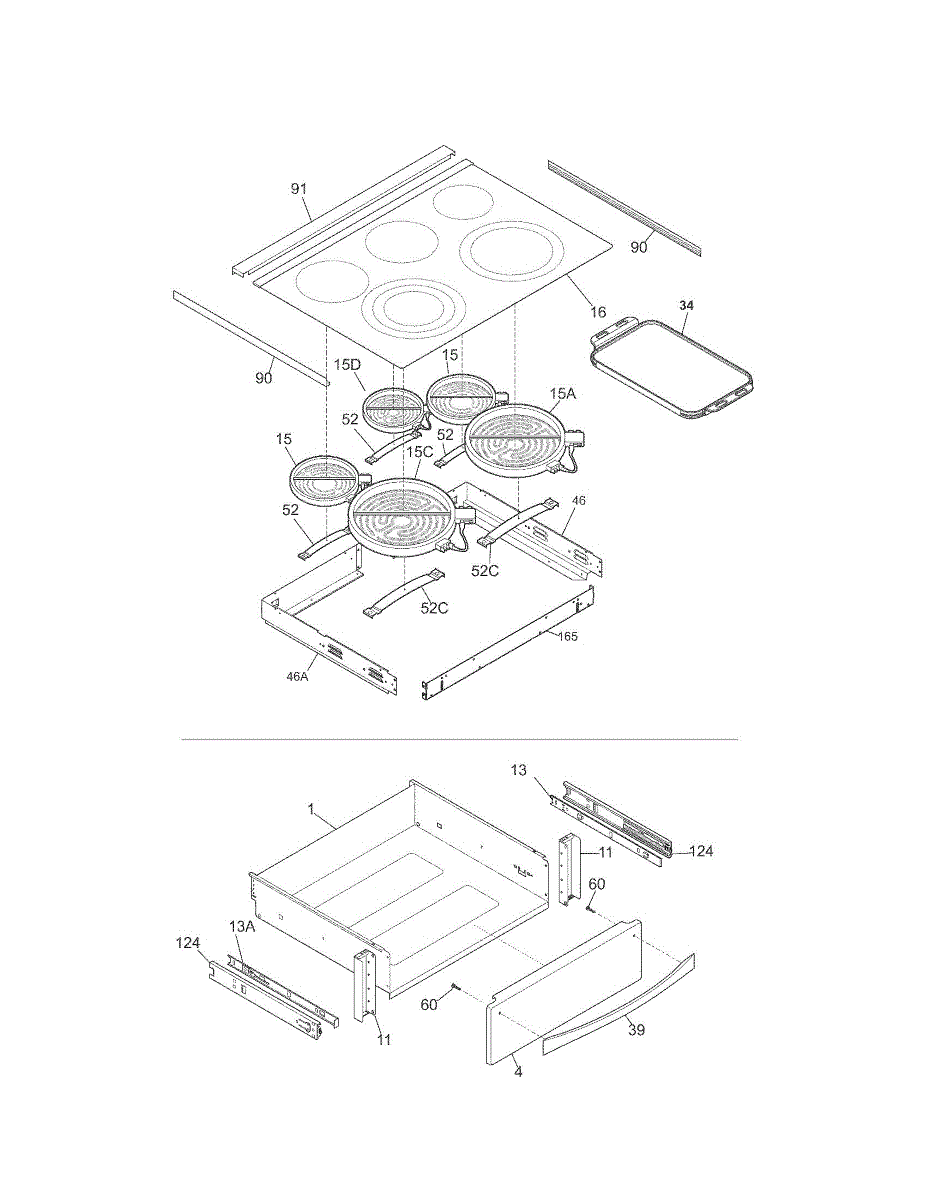

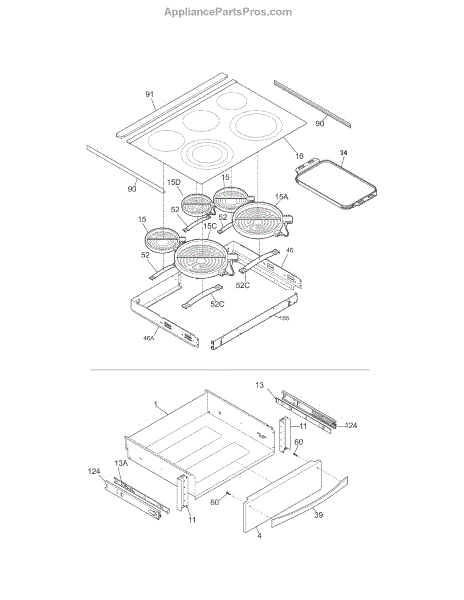

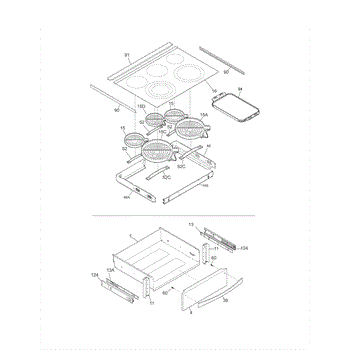

Parts for Kenmore 790.41059101 (79041059101, 790 41059101): Top / Drawer Parts

The Surface Element is an OEM part for Frigidaire electric ranges and cooktops. It is the individual electric coil located beneath the cooktop that provides heat.

The surface element heats up rapidly upon activation in order to boil, simmer or saute foods efficiently. Its precise heating capabilities assist home cooks in meal preparation.

Causes can be mineral deposits caked onto the element surface over time reducing its ability to transfer heat properly. Excess moisture exposure can also damage internal wiring.

Symptoms of a bad surface element include:

• Burners that do not heat up at all or heat unevenly
• Lights flickering below an element when in use
• Popping, buzzing or crackling noises coming from below an element

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Restore reliable heat with this replacement heating element. A worn or damaged element can cause long heat-up times, uneven temperatures, or no heat at all. Swapping it out helps return consistent, dependable heating performance.

• Converts electrical energy to heat when energized
• Common symptoms: no heat, slow to heat, or uneven/inconsistent temperatures
• Visual clues: cracks, breaks, burn spots, or terminals damaged/corroded
• Helps resolve heat-related error codes after proper diagnosis

• Disconnect power at the breaker before servicing; verify no voltage present
• Note wire positions and terminal orientation before removal
• Handle carefully; avoid stressing terminals and element sheath
• Inspect wiring and connectors; replace any heat-damaged spade terminals before reassembly

The Radiant Surface Element is an OEM part for Frigidaire ranges and cooktops. This part generates heat for cooking and boiling on the cooktop surface.

Causes of a bad Radiant Surface Element can range from electrical issues or loose connections to physical damage from impact or spillovers.

Symptoms of a faulty Radiant Surface Element include:

• Element not heating up or providing insufficient heat
• Element glowing unevenly or only partially heating
• Cracks or damage visible on the element surface
• Burning smells or discoloration on the cooktop

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This removable cooktop griddle provides a flat, durable cooking surface for preparing pancakes, sandwiches and other foods over range burners. It restores a smooth, even surface for stovetop griddle cooking when the original is damaged or worn. What it does:

• Replaces a worn, warped or damaged cooktop griddle to restore an even cooking surface
• Provides a flat, continuous surface for foods that need consistent contact with heat
• Helps reduce hot spots and sticking when the original griddle surface is compromised
• Works with compatible range/cooktop configurations that accept a removable griddle plate

• One removable cooktop griddle plate

• Disconnect power to the appliance (and turn off gas if applicable) before handling parts
• Allow the appliance and griddle to cool completely before removal or installation
• Fit the griddle into the cooktop openings so it sits flat and level; verify proper seating before use
• Clean per manufacturer guidance; avoid abrasive tools that can damage the cooking surface

Used on the 1200 watt element

This trim is a decorative finishing panel that restores the appliance's original appearance and covers exposed edges for a clean, factory look. It replaces damaged, cracked, or missing trim to improve cosmetic appearance. What it does

• Covers and protects exposed edges on the appliance surface for a finished look
• Hides gaps and fasteners for a clean, factory appearance
• Replaces cracked, chipped, or otherwise damaged trim that detracts from appearance
• Helps keep dirt and moisture out of exposed seams

• One trim piece as shown

• Disconnect power (and water, if applicable) before beginning any repair
• Remove any retaining screws or clips and carefully pry away old trim to avoid damaging adjacent surfaces
• Align new trim and secure with original screws or clips; do not overtighten fasteners
• Handle painted or chrome-finish trim with care to avoid scratching during installation

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
