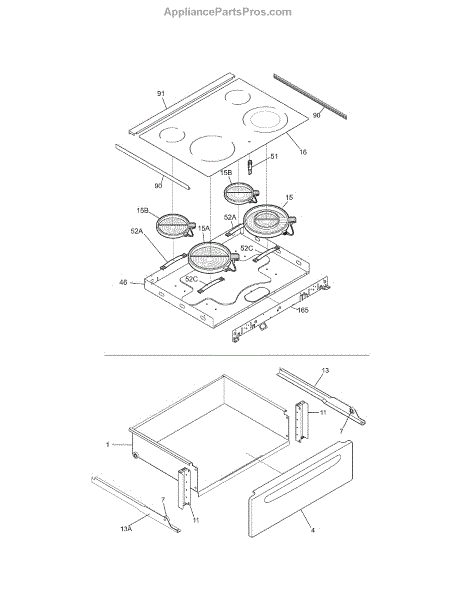

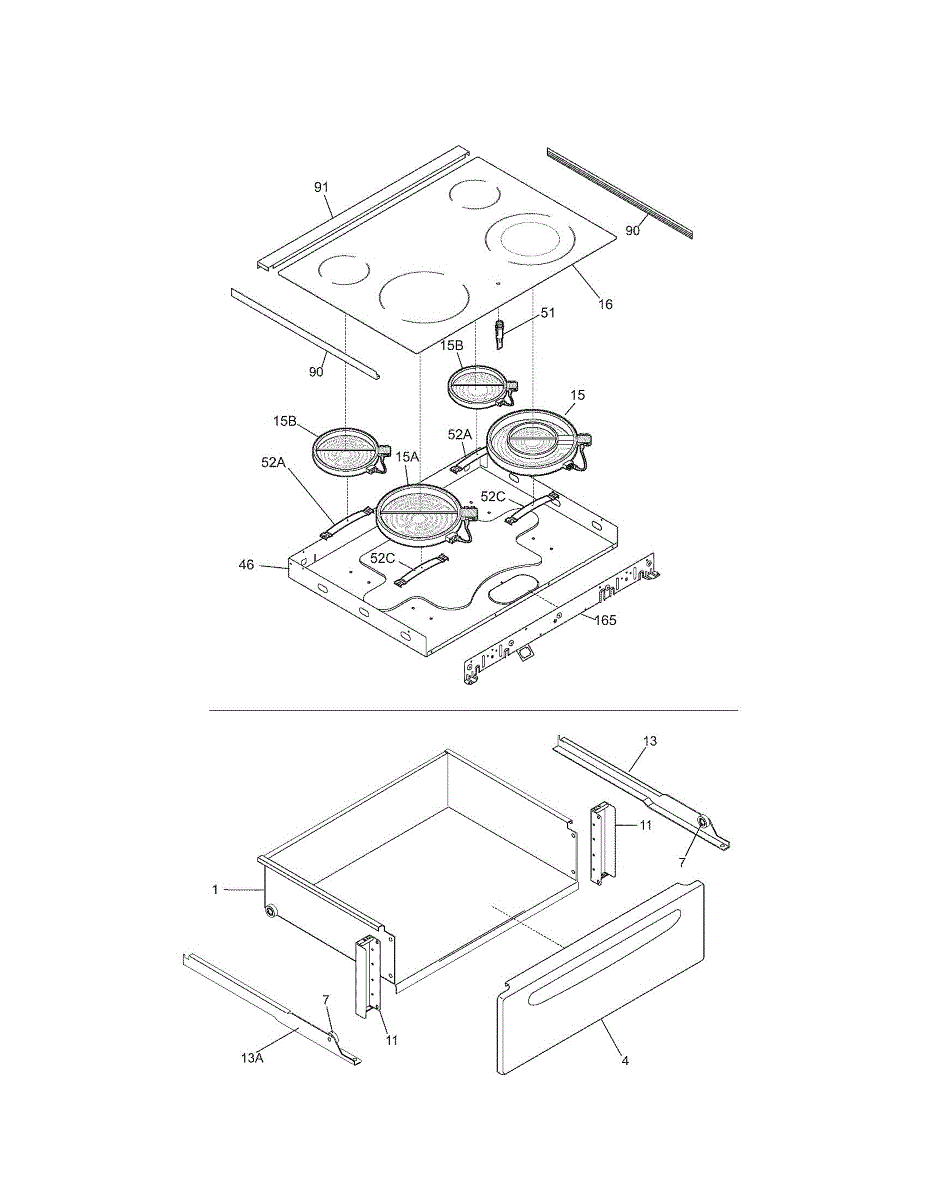

Parts for Kenmore 790.46594503 (79046594503, 790 46594503): Top / Drawer Parts

Replace your range drawer body when cracked, warped, or difficult to slide. Includes integrated rollers for smooth gliding on tracks. Confirm fit with your model.

Replace your electric range's control panel trim if it's cracked, broken, or discolored. This cosmetic panel covers and protects the front control area.

Replacement control panel for your range console. Installs as the front surface for keypad and display. Needed when original is cracked, scratched, or worn.

Replacement roller for range drawer rails. Supports smooth drawer gliding along tracks. Replace when worn, cracked, or causing drawer binding or misalignment.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, broken, or missing to restore proper structural support.

Right side drawer channel for electric ranges and ovens. Guides and supports the storage drawer for smooth opening and closing. Replace if bent, cracked, or worn.

Left drawer slide channel for electric ranges and ovens. Replaces cracked, bent, or broken guide rails that prevent smooth drawer operation.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

The Dual Element is an OEM replacement part for Frigidaire electric ranges. This component is located on the cooktop surface and features two heating coils in one unit, one measuring 6 inches in diameter and the other 9 inches. It allows for precise control of cooking temperatures, accommodating various pot and pan sizes for more efficient cooking.

Causes of a bad dual element can include prolonged use that leads to wear and tear, electrical surges that can damage the heating element, or physical damage due to impact or mishandling. Over time, these issues can result in the element failing to heat properly or not working at all.

Symptoms of a bad dual element include:

• The element not heating up or only partially heating
• Inconsistent or fluctuating temperatures
• Visible damage, such as burns or breaks in the element
• The element not responding to temperature controls
• Sparking or unusual noises when the element is in use

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dual Element is an OEM part for Frigidaire ranges. This element features two heating zones, allowing for versatile cooking options by providing both high and low heat settings on the same burner. It ensures efficient and consistent heating, making it ideal for various cooking tasks. It contains a 9-inch, 1200-watt element and a 6-inch, 1300-watt element, combining for 2500 watts at 240 volts

Causes of a bad dual element can include electrical issues, wear and tear from regular use, or physical damage such as cracks or breaks in the heating element. These issues can lead to inconsistent heating or complete failure of the element.

Symptoms of a bad dual element include:

• Burner not heating up
• Inconsistent or uneven heating
• Element not switching between high and low heat
• Visible damage to the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This black main top is the cooktop surface panel that sits under burners and controls, restoring a clean, finished appearance and supporting cookware. It replaces a worn, bent, or cosmetically damaged top to make the range safe and functional. What it does:

• Provides the finished cooktop surface that supports burners, grates, and cookware.
• Covers internal components and helps channel spills away from controls.
• Restores proper fit and alignment when the original top is dented, corroded, or cracked.
• Helps prevent heat and liquid from contacting internal parts that can cause damage.

• One main top, black

• Disconnect electrical power (and gas supply for gas ranges) before beginning any service.
• Remove burner grates, burner caps, and control panel or trim per manufacturer instructions to access and replace the top.
• Handle edges carefully—use gloves to avoid cuts and protect the finish from scratches during installation.

Secures the heating element to the cooktop surface. Replace if your original spring is broken, missing, or no longer holds the element firmly in place.

Mounting spring that secures the heating element in place on your cooktop. Replace if spring is broken, stretched, or missing to properly hold element.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Decorative trim piece that covers mounting edges on your range door or control panel. Replaces scratched, dented, or missing trim for a clean finish.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

Replace your range's wire harness if wires are frayed, damaged, or connections are loose. This harness routes power between range components.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
