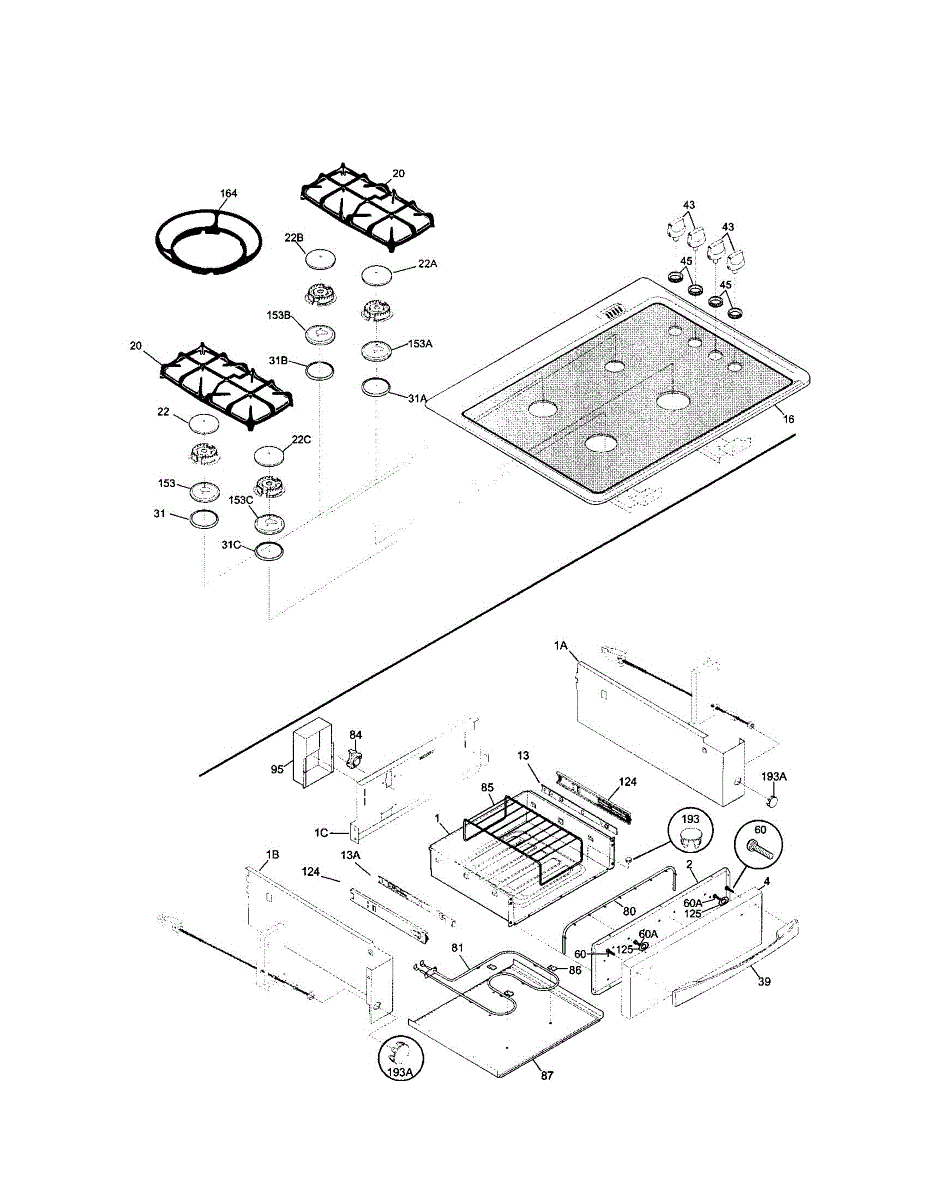

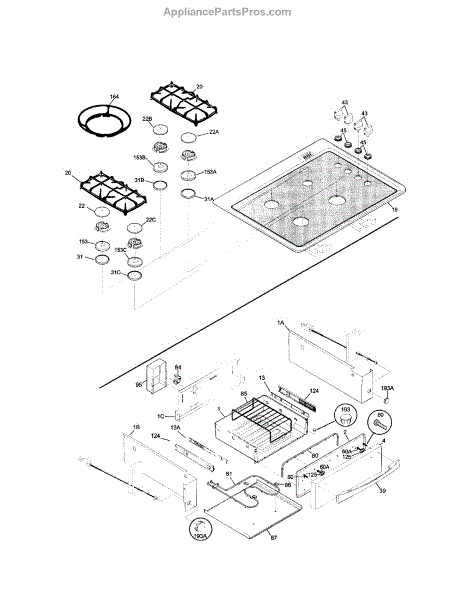

Parts for Kenmore 790.46833100 (79046833100, 790 46833100): Top / Drawer Parts

This warmer drawer assembly replaces a failed or damaged warming drawer to restore the appliance's ability to keep cooked foods warm and ready to serve. Fits as a direct replacement for units using this OEM drawer assembly. What it does:

• Provides the insulated, heated compartment that maintains cooked-food temperature for serving
• Replaces cracked, bent or non-sealing drawers that allow heat loss
• Restores proper drawer movement and latch engagement for safe use
• Helps eliminate intermittent or complete loss of the warming function when the drawer assembly is damaged

• Disconnect power to the appliance before starting any repairs to avoid shock
• Handle the drawer carefully—edges and mounting tabs may be sharp
• Verify proper seating and alignment; ensure connectors and mounting clips engage fully
• If wiring or heating elements are exposed or damaged, replace those components per OEM instructions.

Specs: 8 - 18 x 0.500

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Service data sheet for your range. Contains technical specifications, wiring diagrams, and troubleshooting information. Replace lost or damaged sheets.

Specs: 10-32 X 0.375

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Low-friction slide piece that supports moving components in your range or wall oven. Replace worn or cracked glides to restore smooth operation.

Low-friction glide that supports and guides range drawer movement. Replace if cracked, broken, or worn to restore smooth sliding without sticking or scraping.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Two per package.

Seals around cooktop burner to prevent spills from entering burner housing and centers burner for even heating. Replace when hardened or cracked.

Replacement gasket that seals around surface burners to prevent spills from entering the cooktop cavity. Replace when hardened, cracked, or torn. Confirm fit with your model number before ordering.

Seals the gap between burner and cooktop to prevent spills from leaking underneath. Replace when seal becomes discolored, cracked, or loses flexibility.

Seals between burner and cooktop to prevent spills and air leaks. Replace when cracked, hardened, or crumbling. Confirm fit with your model number.

Hex washer head ,10-32 x 0.375. Ground

Range door gasket creates an airtight seal for efficient heating. Replace if worn, cracked, or oven loses heat. Verify fit with your model number.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Range won't heat or overheats? This safety thermostat protects against excessive temperatures. Direct replacement part for reliable operation.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

Washer that fits between the support roller and shaft in your dryer. Replace if worn, cracked, or missing to maintain proper drum alignment and support.

This black burner skirt fits around a 5K simmer burner ring to restore proper appearance and support the cooktop surface. Replaces cracked or damaged skirts to keep the burner area sealed and looking finished. What it does:

• Provides the decorative and protective trim around a 5K (5000 BTU) simmer burner
• Helps keep spills and debris from entering the burner cavity
• Restores even contact and alignment for the burner assembly
• Commonly replaced when the skirt is cracked, warped, or missing

• One black burner skirt (5K)

• Turn off and disconnect power and gas supply and allow all surfaces to cool before servicing
• Remove burner caps and grates per your model's service instructions to access the skirt
• Handle carefully to avoid bending or cracking; hand tools usually sufficient

A surface burner skirt that covers and protects the heating element on your electric range cooktop. This metal component directs heat upward while shielding the element from spills and debris. Replace it when the skirt is warped, discolored from overheating, or has cracks that affect heat distribution.

Rubber grommet plug that seals the light switch opening in your range control panel. Replace if cracked, torn, missing, or no longer providing a tight seal.
