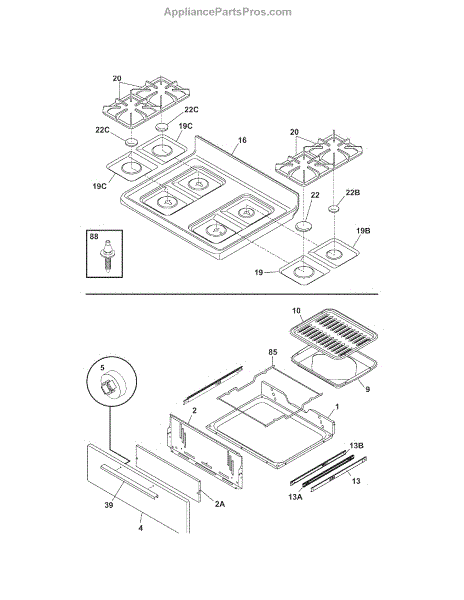

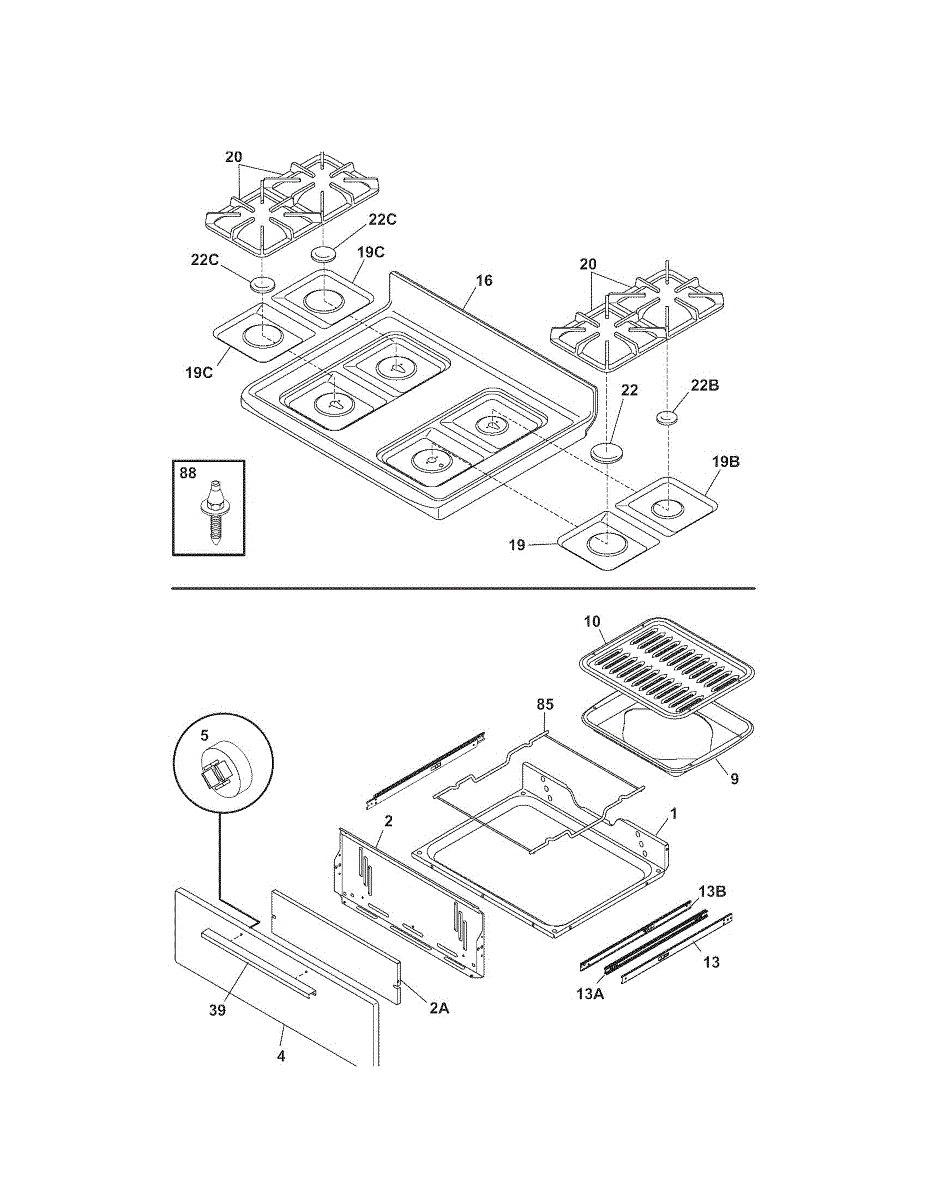

Parts for Kenmore 790.70114701 (79070114701, 790 70114701): Top / Drawer Parts

Replace the low broil liner panel in your gas range oven cavity. This trim panel covers the lower broil area and may need replacement if cracked or damaged.

Control panel for gas ranges. Installs on the front of your range to house controls and display. Replace if cracked, damaged, or worn from daily use.

Push-in nylon nut for gas ranges. Secures panels, components, or trim pieces. Replace if cracked, broken, worn, or missing to properly fasten parts.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Metal main top panel for gas ranges. Replaces the cooking surface cover when cracked, chipped, discolored, or damaged. Direct fit replacement part.

Metal main top panel for gas ranges. Replaces cracked, chipped, or discolored cooktop surface. Covers burner assembly and provides cooking surface.

Burner drip pan for gas and electric ranges. Sits beneath the burner element to catch spills and debris. Replace if cracked, discolored, or warped.

Black burner grate for gas range cooktops. Replace your cracked, chipped, or missing grate to restore proper support for pots and pans during cooking.

Burner cap sits on top of the gas burner assembly to distribute flame evenly. Replace if cracked, chipped, discolored, or missing for proper cooking.

Black handle for range storage drawer. Replaces cracked, broken, or missing drawer handles. Mounts to front of warming or storage drawer for opening.

This is a white plastic or metal handle that attaches to the front of the broiler drawer on a freestanding range. It provides a grip for opening and closing the lower broiler or storage drawer. Replace this handle if it is cracked, broken, loose, or missing, which makes the drawer difficult or impossible to open safely.

Guide pin for gas ranges. Secures and aligns oven or burner components. Replace if broken, missing, or worn to restore proper part positioning.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
