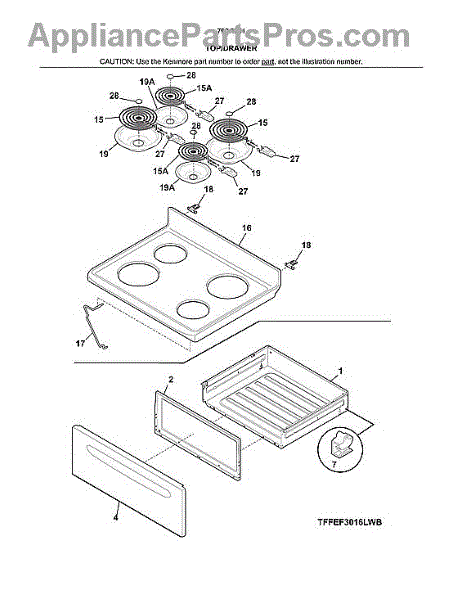

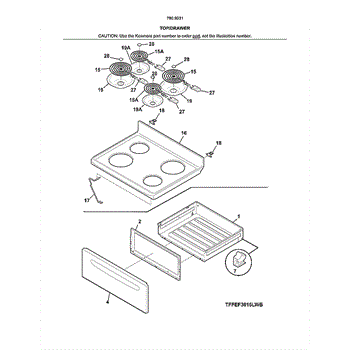

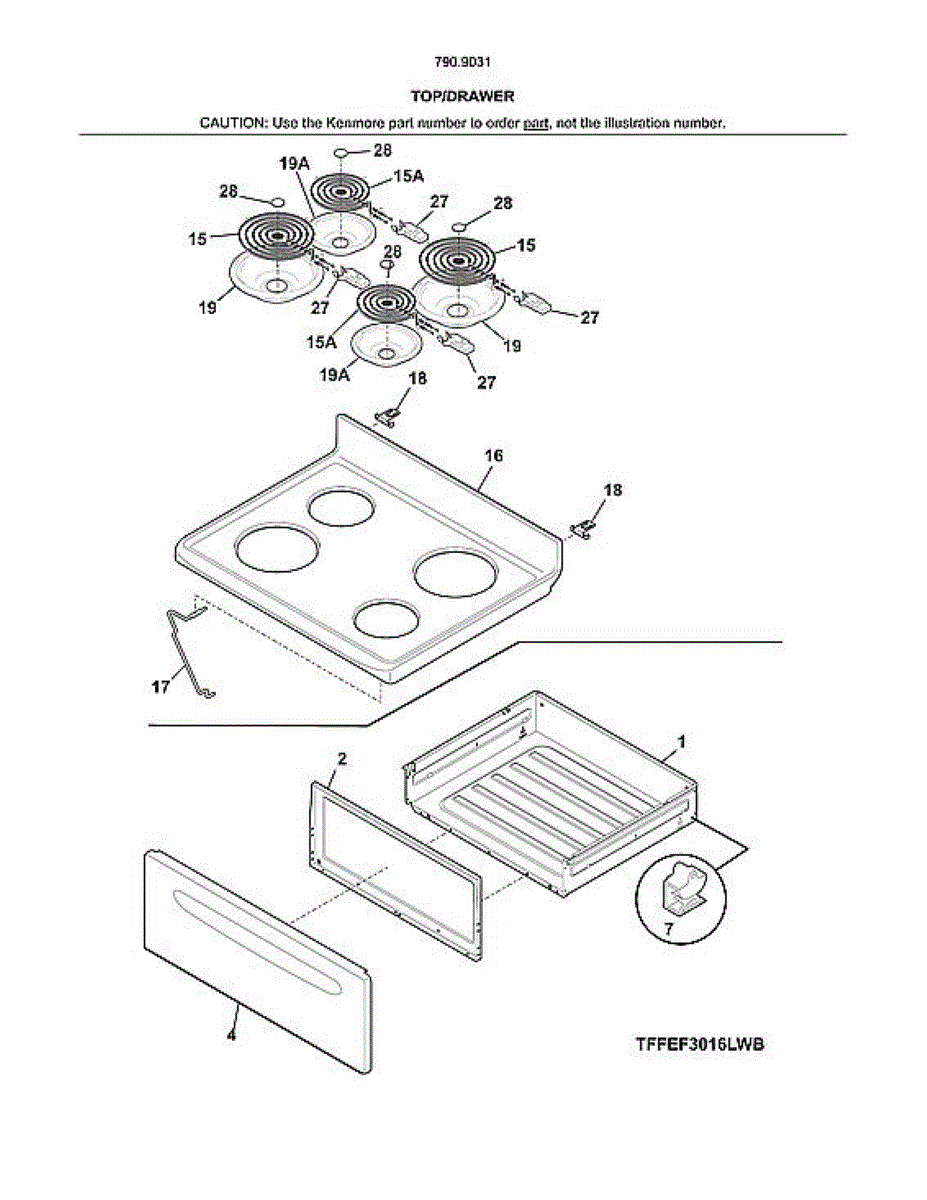

Parts for Kenmore 790.90312011 (79090312011, 790 90312011): Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner replaces a damaged or worn cabinet surface to restore a clean, smooth interior and support shelves and drawers. It helps maintain a sanitary storage area and a proper fit for accessories. What it does:

• Provides a smooth, easy-to-clean interior surface for the fresh food compartment
• Restores mounting surfaces for shelves, bins and trim pieces
• Prevents drafts and moisture intrusion where cracks or gaps exist
• Addresses symptoms like visible cracks, gouges, or a warped/loose interior liner

• One refrigerator interior liner

• Disconnect power to the appliance before beginning any repair
• Removal typically requires taking out shelves, trim and fasteners to access the liner
• May require adhesive, clips or screws specific to the model—keep original fasteners and hardware

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a Frigidaire main top for electric ranges. It sits beneath and holds the range's heating elements. If this part is damaged, it's usually obvious. It may dent or in some extreme cases, rust, and should be replaced if it's no longer able to hold heating elements.Before installing this part, make sure that power to the stove is cut, and do not begin repairs until the range is completely cool. A screwdriver, nut driver, and small dowel rod may be needed to install this part. Start by removing each heating element and drip pan. The old cooktop should be held in place with a number of screws or mounting brackets, the first of which may need to be accessed from inside the oven. Mounting hardware must be removed from the old cooktop and installed in the new one before putting the new cooktop in place.This is a genuine OEM part compatible with ranges from Frigidaire brands, including Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and others. This product includes no additional hardware.

This main top is the flat cooktop surface that mounts over a range's burner box to provide a stable, finished cooking surface and protect internal components from spills and debris. It restores a level, secure area for burners and cookware. What it does:

• Covers and protects the range's internal burner box and wiring from spills and food debris
• Provides a stable, level surface for burner grates and cookware
• Helps maintain proper airflow and fit for burner components
• Replaces warped, dented, or corroded tops that can interfere with burner alignment or cookware stability

• Disconnect power to the appliance before beginning any service
• Remove burner grates, knobs and other removable components to access mounting screws
• Handle carefully to avoid sharp edges; lift and set into place, aligning mounting holes before fastening

Main top support rod.

These chrome drip bowls sit beneath coil surface elements to catch spills and reflect heat. Sized for 8-inch and 6-inch burners, they refresh the cooktop's appearance and help elements seat correctly. What it does:

• Collects drips and splatters under coil elements and reflects heat back toward cookware
• Restores a clean look when originals are stained, pitted, or rusted
• Helps burners sit level and make solid contact with the cooktop
• Common signs to replace: heavy discoloration, rust, broken tabs, warping, lingering smoke or odor from burnt-on spills

• Two chrome drip bowls: one 8-inch and one 6-inch

• Disconnect power at the breaker and allow surface units to cool completely
• Pull the coil element straight out of its receptacle, then lift out the old bowl
• Align the new bowl's notches with the cooktop opening and seat it flat
• Reinsert the element fully and ensure it rests evenly in the bowl

These chrome drip bowls sit beneath coil surface elements to catch spills and reflect heat. Sized for 8-inch and 6-inch burners, they refresh the cooktop's appearance and help elements seat correctly. What it does:

• Collects drips and splatters under coil elements and reflects heat back toward cookware
• Restores a clean look when originals are stained, pitted, or rusted
• Helps burners sit level and make solid contact with the cooktop
• Common signs to replace: heavy discoloration, rust, broken tabs, warping, lingering smoke or odor from burnt-on spills

• Two chrome drip bowls: one 8-inch and one 6-inch

• Disconnect power at the breaker and allow surface units to cool completely
• Pull the coil element straight out of its receptacle, then lift out the old bowl
• Align the new bowl's notches with the cooktop opening and seat it flat
• Reinsert the element fully and ensure it rests evenly in the bowl

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

Size: 6-20 x 0.312 inch.

This wiring harness connects and routes power between key refrigerator components, restoring proper electrical signals so fans, lights, compressor and ice/water functions can operate correctly when the original harness is damaged. What it does:

• Provides the factory routing and connectors to link controls, motors and sensors
• Replaces frayed, burnt or broken wires that can cause intermittent power or no-power to components
• Helps resolve symptoms such as lights or dispenser not working, fans not running, or ice maker/pump failures when wiring is the cause
• Maintains factory-style connector fit and wire lengths for correct component connections

• Disconnect power to the appliance before inspecting or replacing the harness
• Match the part number and connector shapes to the original; route and secure wires per factory clips to avoid heat or pinching
• If connectors are corroded or terminals are damaged, replace the harness rather than attempting temporary repairs
