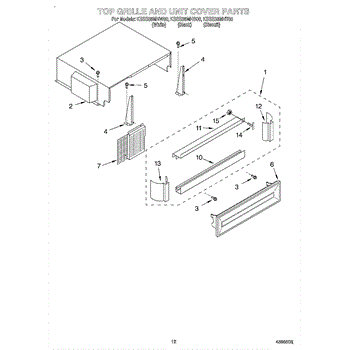

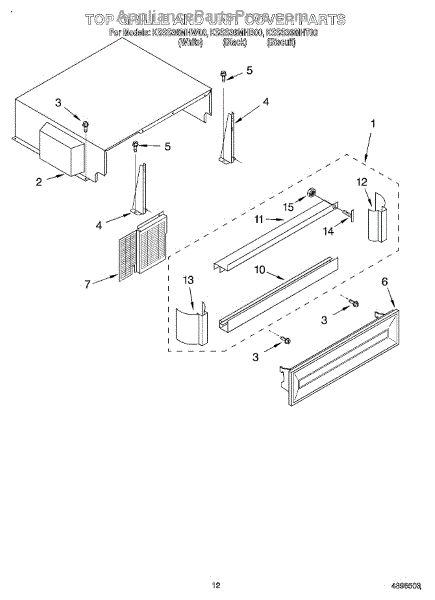

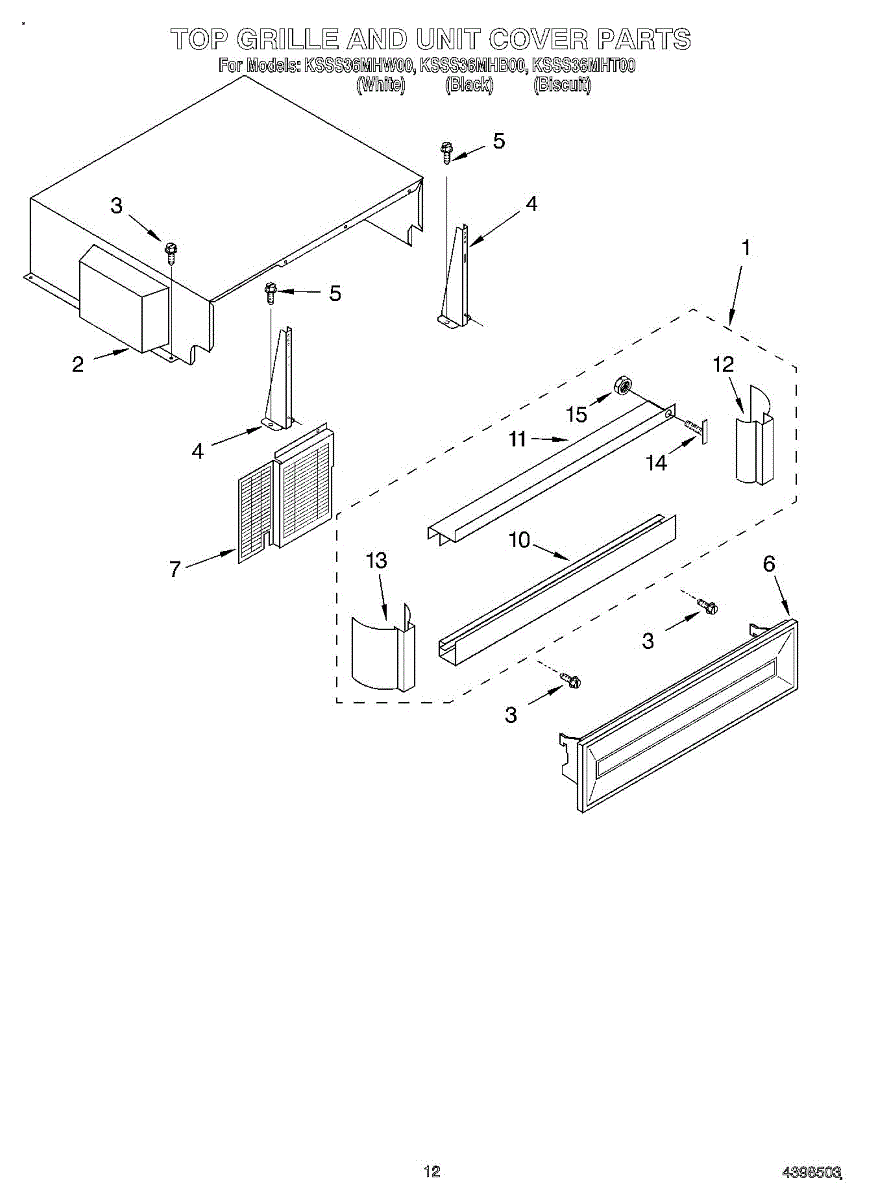

Parts for Kitchenaid KSSS36MHT00: 09 - Top Grille And Unit Cover Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

Replacement tee bolt for refrigerators. Secures internal components and structural panels. Order a new bolt if yours is stripped, missing, or damaged.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
