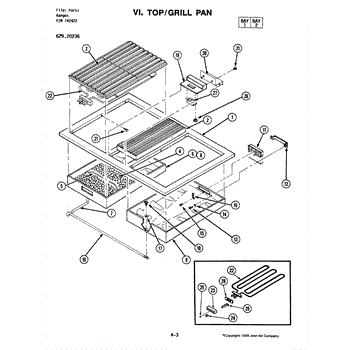

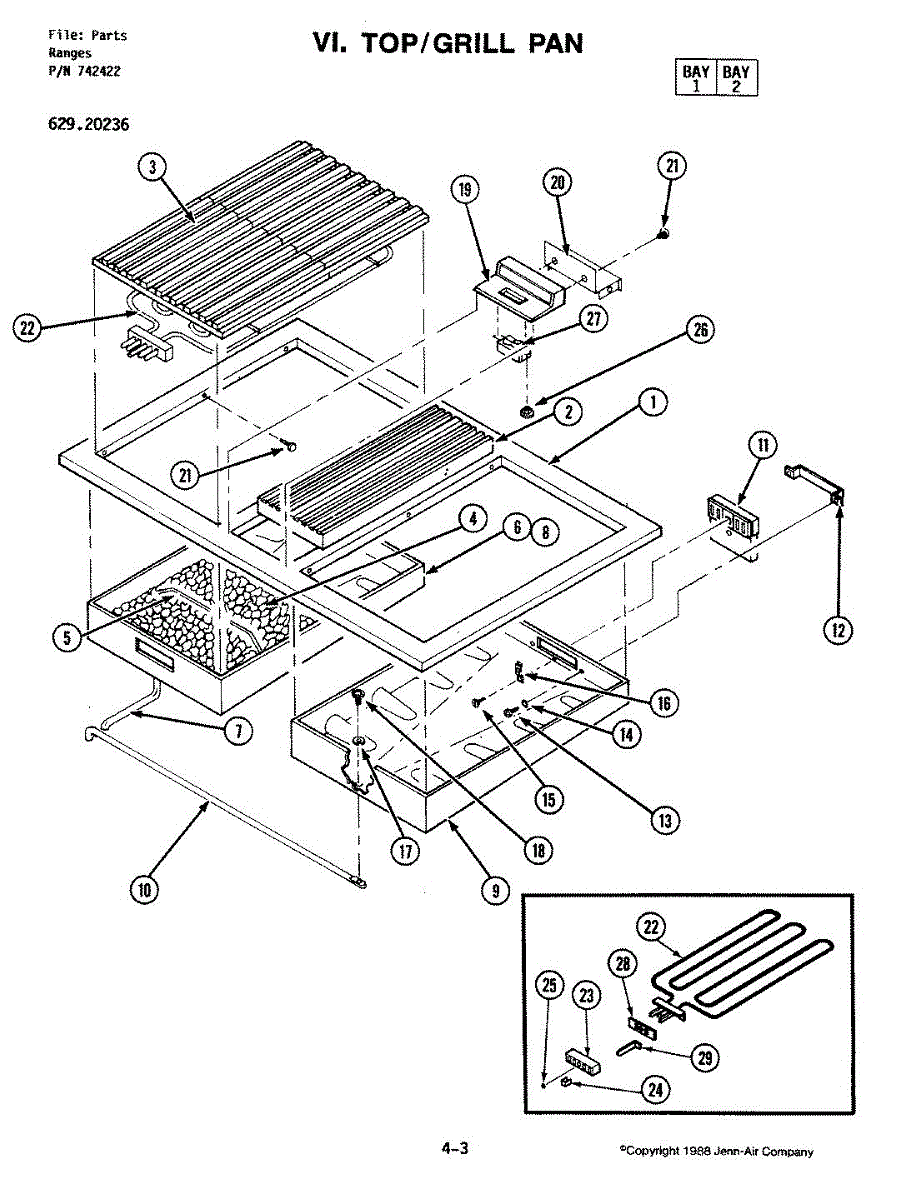

Parts for Jenn-Air 20236: 09 - Top Parts

Color: Black. Includes two grates.

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

This wire harness, also called a contact wire assembly, restores reliable factory connections between the appliance's controls and components. Replacing a damaged harness helps resolve intermittent or failed operation caused by burnt, brittle, or loose wiring and terminals.

• Provides the electrical pathway between controls, switches, and related components
• Can help address intermittent operation or a component that won't run/respond
• Replaces wiring with burned, melted, cut, or corroded insulation/terminals
• Restores proper routing and insulation to reduce shorts, arcing, or overheating

• Disconnect power at the breaker before servicing; also shut off gas supply
• Access the harness by removing necessary panels/knobs; label or photograph connections for reference
• Route the new harness in the original clips/grommets, away from sharp edges and hot or moving parts
• Push connectors on fully until secure; reassemble and test operation

This contact assembly restores a reliable electrical connection within an appliance's control circuit. Replacing worn or pitted contacts helps eliminate intermittent operation and arcing so the controlled component can turn on and off consistently. What it does

• Provides the conductive interface that completes the circuit when the control is engaged
• Helps deliver stable power to the connected load
• Typical failure signs: intermittent operation, no operation of the controlled component, visible heat damage/pitting on contacts, arcing or buzzing at the contact point

• 1 contact assembly

• Disconnect power to the appliance before servicing and verify no voltage is present
• Access the control area; photograph or label wire positions and terminal orientation
• Move wires one at a time to the new assembly; ensure tight, clean connections
• Inspect nearby wiring for heat damage and replace any burnt terminals; test operation before reassembly

This is a high-heat ceramic light receptacle used in select appliances. It provides a safe, insulated socket for the appliance light bulb so you can reliably see inside during use or service.

• Holds and insulates the bulb in high-temperature areas
• Restores lighting when the bulb is good but the light won't turn on
• Helps correct loose, flickering, or intermittent interior light
• Common signs include a cracked/scorched socket or arcing at the bulb base

• Disconnect power before servicing; allow the appliance to cool completely
• Access may be from inside the cavity or from the rear panel, depending on model
• Transfer wires one at a time to the new receptacle to maintain correct connections
• Install only the bulb type and wattage specified by the appliance manufacturer

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Screw: 8-16 x 3/8 inch.

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection
