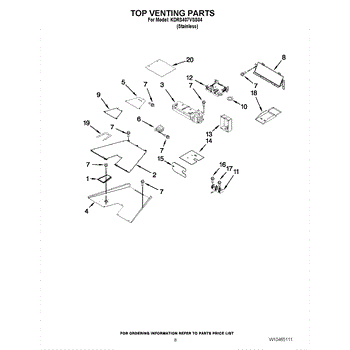

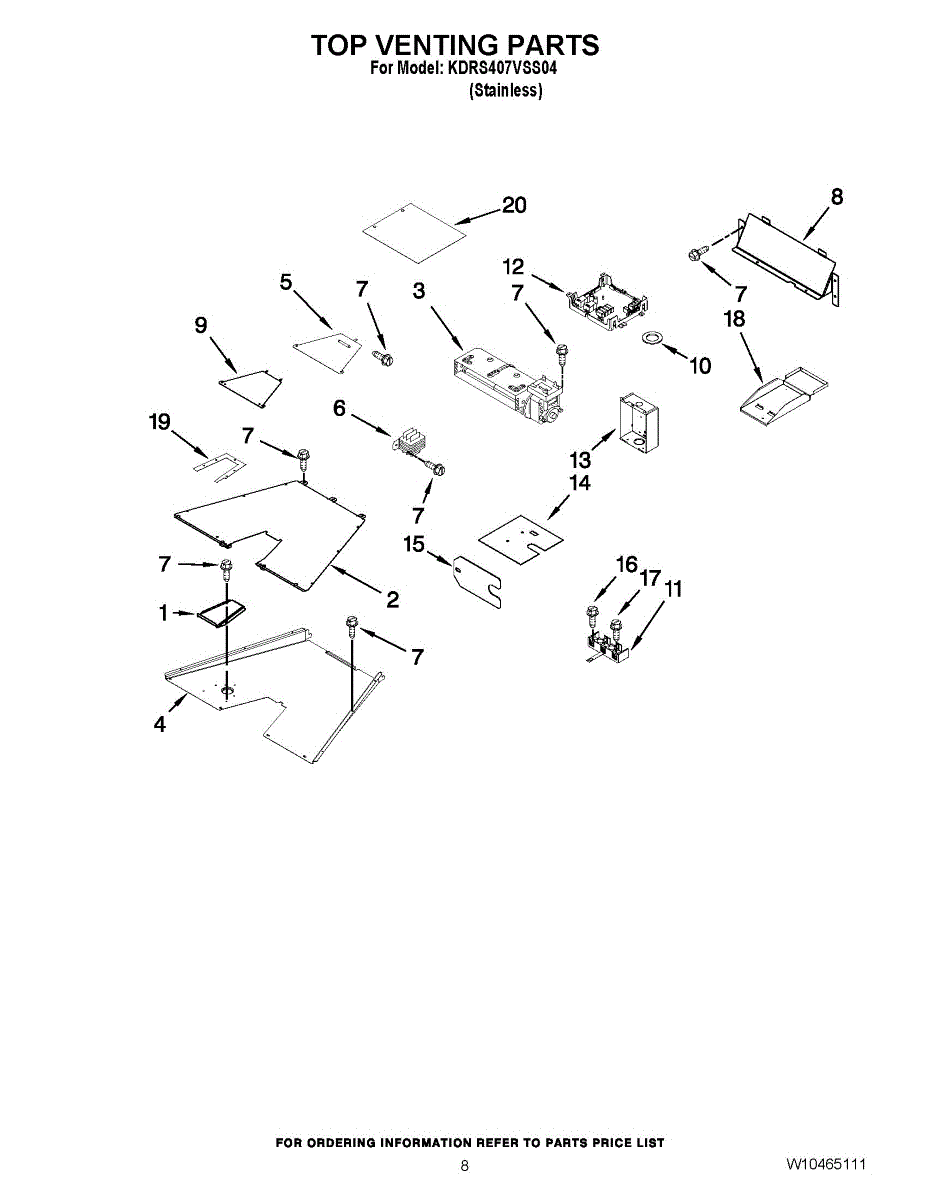

Parts for Kitchenaid KDRS407VSS04: 05 - Top Venting Parts

This control transformer reduces incoming line voltage to the low voltage required by the appliance's control circuit or lighting. Replacing a failed transformer restores proper power to the controls so the unit operates as designed. What it does:

• Steps down household line power to low voltage for control boards, relays, or lighting circuits
• Provides electrical isolation to help protect sensitive control components
• A failed transformer may leave the control/display dead or make low-voltage features (like lights) inoperative; may also blow a fuse

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram; transfer wires one at a time to the matching terminals
• Mount securely in the original location; keep wires clear of sharp edges and heat sources
• If a fuse opened, inspect wiring and downstream loads for shorts before restoring power

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This oven control board is manufactured by Whirlpool. It is an electronic component and is responsible for monitoring and controlling the oven's functions, such as bake, broil, and warm, as well as maintaining the appropriate temperature set by the user. This control board does not include the physical controls for the oven.High heat and exposure to moisture can degrade the control board. This may result in intermittent problems or outright failure of the oven. In both cases, the control board will need to be replaced. Before working on the oven, make sure to unplug it or shut off the circuit breaker. Wear gloves at all times and exercise care when disconnecting/connecting the writing to the board.A genuine OEM part, this control board is sold individually. It fits Whirlpool and KitchenAid branded ovens.

The Range Door Handle Screw is an OEM part compatible with Whirlpool ranges. Over time, the door handle screw may become loose due to frequent use or other external factors. If the screw is damaged or missing, it can lead to a loose or wobbly handle, making it difficult to open and close the range door securely.

Size: 10-16” x 7/8”

Symptoms of a faulty or missing screw may include:

• Loose or wobbly handle
• Difficulty in opening or closing the range door
• Handle coming off from the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.
