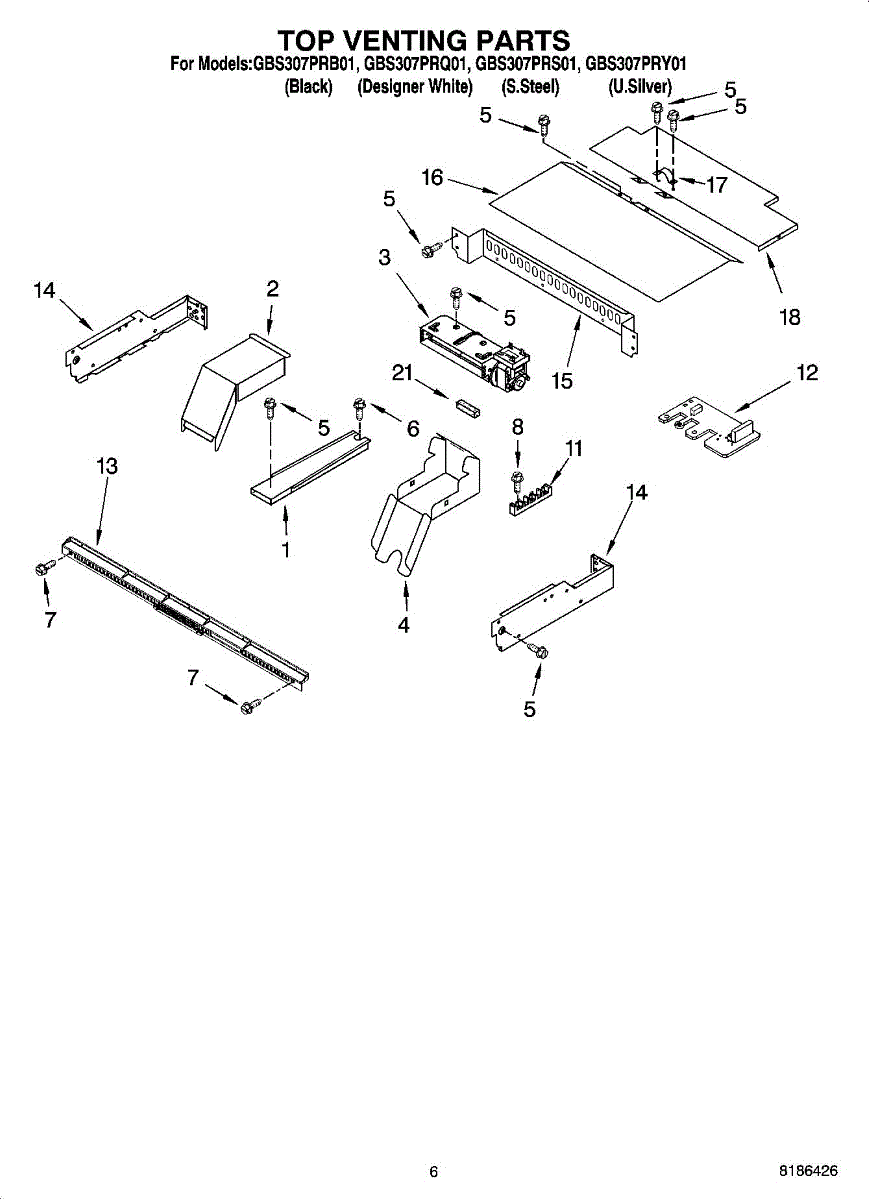

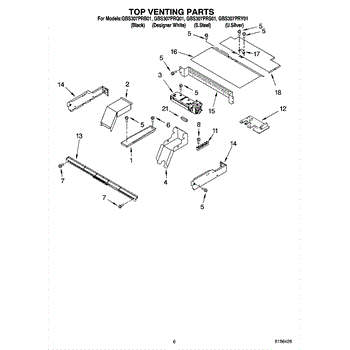

Parts for Whirlpool GBS307PRB01: 05 - Top Venting Parts, Optional Parts

This replacement exhaust vent directs oven/dryer exhaust airflow away from the appliance to maintain proper ventilation and reduce backflow. Restores intended airflow path to help reduce odors and heat buildup around the appliance. What it does

• Channels exhaust fumes and hot air out of the appliance's vent path.
• Helps restore proper ventilation when previous vent is cracked, warped, or blocked.
• Can reduce abnormal heat, odors, or poor drying/cooking performance tied to ventilation issues.
• Limits airflow leak points that can cause noise or vibration during operation.

• One exhaust vent housing.

• Disconnect power (and gas, if applicable) before starting work.
• Inspect and replace any worn gaskets, clamps, or vent hose to ensure a proper seal.

This blower is the internal cooling fan that circulates air through the appliance to keep components at safe temperatures and maintain proper airflow. Replacing a failed or noisy blower restores ventilation and reliable operation.

• Moves air across heat-sensitive parts to prevent overheating
• Maintains proper ventilation inside the unit
• Common symptoms: fan not running, loud grinding/squealing, intermittent operation
• May cause hot control panel, over-temp errors, or unexpected shutdowns

• Disconnect power at the breaker or unplug the appliance before servicing
• Access location varies by model; retain and transfer any brackets, seals, or fasteners from the original
• Note wire/connector orientation and airflow direction; match to the original
• After installation, verify the fan spins freely and no wiring contacts the impeller

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Size: 8-18 x 3/8 inch.

Screw for control panel vent.

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

This transient suppressor protects the appliance's electronic control by absorbing power-line spikes and electrical transients. Replacing a failed suppressor helps restore stable control operation and helps protect sensitive components from surge-related damage.

• Clamps voltage transients on the AC line to shield the control and related electronics
• Helps reduce interference that can cause erratic displays or unexpected resets
• Failure may leave the control dead, cause intermittent operation, or trip the household breaker
• Often shows visible heat damage, cracking, or discoloration when defective

• Disconnect power at the breaker and verify no voltage is present before servicing
• Access the control compartment; the suppressor is typically located near the electronic control or power input
• Photograph wiring and transfer one lead at a time to ensure correct connections and snug terminals
• Inspect and replace any heat-damaged wires or terminals before reassembly and test

This vent control damper assembly opens and closes the appliance vent to allow steam and exhaust to exit when needed, helping maintain proper airflow and reduce moisture buildup. It replaces a worn or stuck vent actuator. What it does:

• Operates the vent/damper to allow exhaust air to escape during use
• Prevents vent from staying stuck open or closed, which can cause excess moisture or reduced airflow
• Restores proper venting function when the original damper fails or binds
• Works as the mechanical control between the appliance cavity and external venting path

• One vent control (damper) assembly

• Disconnect power to the appliance before beginning any service
• Access may require removing exterior panels or the back cover
• Handle the damper gently to avoid bending the flap or linkages

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 1/3 oz.

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft,14 Ga., 200 c Brown

A replacement mounting screw used to secure appliance panels and components. Restores a missing or stripped fastener so parts sit flush and stay in place for reliable operation. What it does

• Fastens panels, brackets, and trim to the appliance chassis
• Prevents rattling, loose panels, and misaligned parts when installed correctly
• Replaces missing or damaged screws to restore proper fit and function

• Disconnect power to the appliance before working on it
• Use the correct-size screwdriver or driver bit to avoid cam-out or stripping
• Install by hand until started, then snug; avoid over-tightening to prevent damage
• Keep removed hardware organized and compare to the replacement before installing

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Size: 10-32 inch.

Kit includes 4 pins.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
