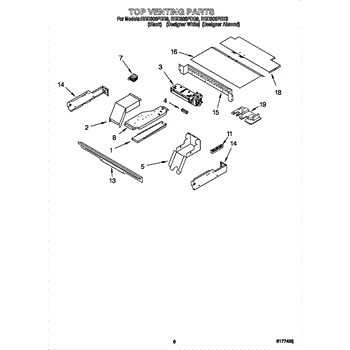

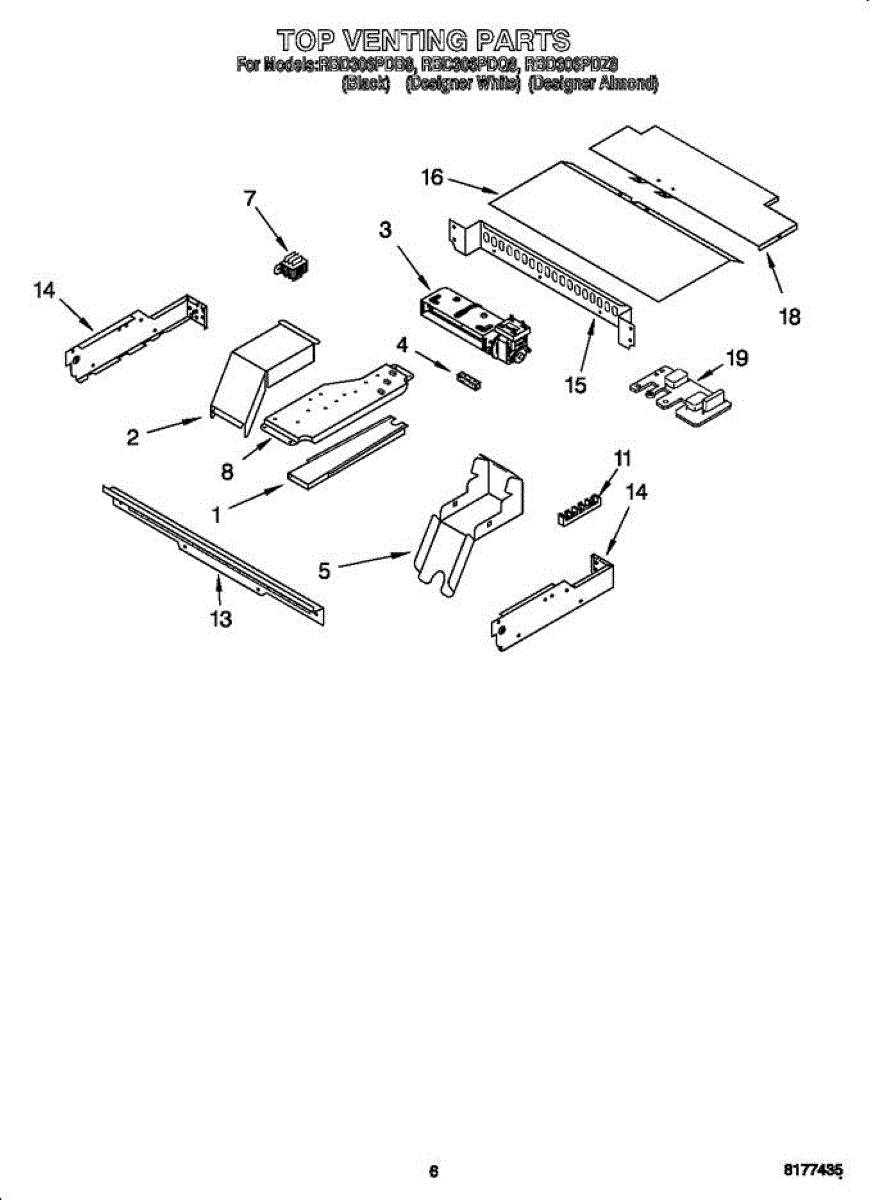

Parts for Whirlpool RBD306PDZ8: Top Venting Parts

This replacement exhaust vent directs oven/dryer exhaust airflow away from the appliance to maintain proper ventilation and reduce backflow. Restores intended airflow path to help reduce odors and heat buildup around the appliance. What it does

• Channels exhaust fumes and hot air out of the appliance's vent path.
• Helps restore proper ventilation when previous vent is cracked, warped, or blocked.
• Can reduce abnormal heat, odors, or poor drying/cooking performance tied to ventilation issues.
• Limits airflow leak points that can cause noise or vibration during operation.

• One exhaust vent housing.

• Disconnect power (and gas, if applicable) before starting work.
• Inspect and replace any worn gaskets, clamps, or vent hose to ensure a proper seal.

Size: 8-18 x 3/8 inch.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This replacement transformer steps down household 120VAC, 60Hz power to the low voltage used by the appliance's electronic control. Replacing a failed transformer can restore power to the display/clock and control circuits so cooking functions respond properly. What it does:

• Converts 120VAC line power to low-voltage for the control board/clock and related circuits
• Helps provide stable power to the display and control relays
• Helps resolve: blank or intermittent display, unresponsive controls, oven not starting, or visible heat damage to the original transformer

• One transformer

• Disconnect power at the breaker before servicing; verify no voltage is present
• Note and label all wire positions or take photos before removal; transfer connections one-for-one
• Mount securely and route leads away from sharp edges and hot surfaces
• Inspect wiring and the control board for shorts before restoring power

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This terminal block is the insulated connection point where the appliance's incoming power ties into the internal wiring. Replacing a heat-damaged or loose block restores a safe, reliable electrical path and helps prevent arcing and intermittent power loss.

• Connects the supply conductors to the unit's internal wiring
• Provides insulated posts to securely fasten and distribute power
• Helps maintain tight, low-resistance connections
• Common failure signs: melted/discolored plastic, burned or loose terminals, arcing, scorching, or intermittent/no power after confirming the cord and breaker

• Disconnect power at the breaker or unplug the appliance; verify no voltage before servicing
• Photograph or label wire positions to ensure correct reassembly
• Inspect and replace any heat-damaged wire ends or lugs; use appropriate terminals
• Tighten connections securely and ensure wires are fully seated and strain-relieved as originally installed

Screw for control panel vent.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This transient suppressor protects the appliance's electronic control by absorbing power-line spikes and electrical transients. Replacing a failed suppressor helps restore stable control operation and helps protect sensitive components from surge-related damage.

• Clamps voltage transients on the AC line to shield the control and related electronics
• Helps reduce interference that can cause erratic displays or unexpected resets
• Failure may leave the control dead, cause intermittent operation, or trip the household breaker
• Often shows visible heat damage, cracking, or discoloration when defective

• Disconnect power at the breaker and verify no voltage is present before servicing
• Access the control compartment; the suppressor is typically located near the electronic control or power input
• Photograph wiring and transfer one lead at a time to ensure correct connections and snug terminals
• Inspect and replace any heat-damaged wires or terminals before reassembly and test
