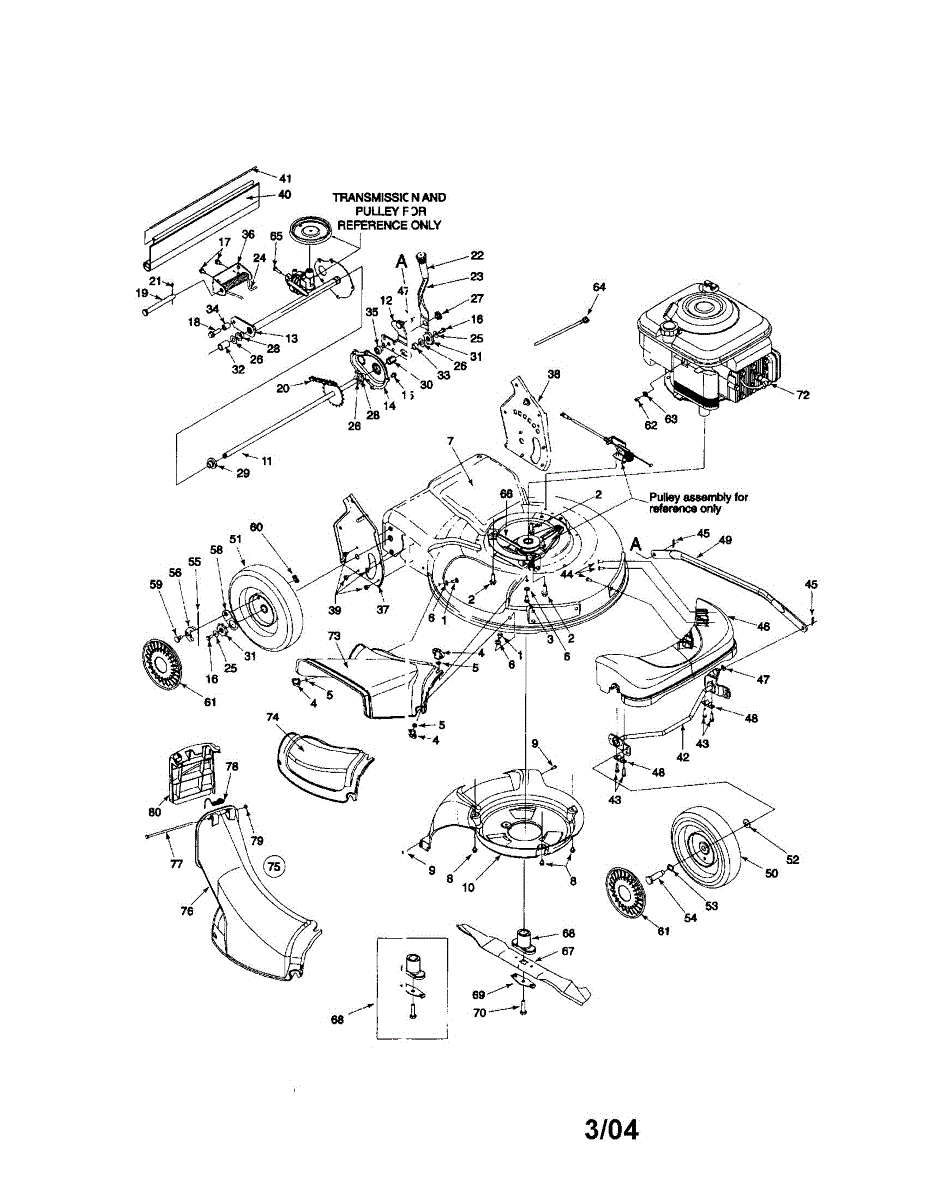

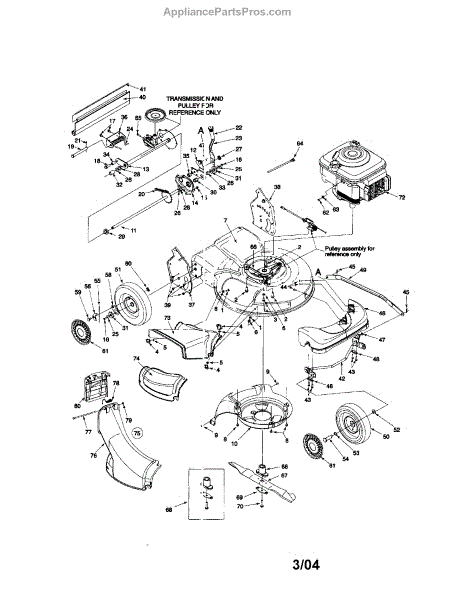

Parts for Mtd 950-959: Transaxle Assembly Parts

Metal carriage bolt with round head and threaded shank for lawn mowers and snow blowers. Replaces broken or missing hardware during repairs or assembly.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

Flat washer flange for lawn mowers, snow throwers, tillers, and edgers. Replace when washer is missing, damaged, or worn to ensure proper assembly.

Wheels won't turn or wobble on your mower? This right rear axle assembly connects the wheel to your mower frame. Replaces worn or damaged axles.

Pivot arm for walk-behind lawn mowers that aids in steering and direction control. Replace if worn, damaged, or broken from heavy use or accidents.

Replace your lawn mower's chain cover if it's cracked, broken, or missing. This protective cover shields the drive chain assembly on self-propelled mowers.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Fix a mower that won't move forward or has a locked-up transmission. This replacement transmission rotates the axle to propel your mower smoothly.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

Clevis pin fastener for lawn mowers and chipper shredders. Secures internal components. Replace if bent, broken, or missing to restore proper assembly.

Drive chain connects the axle sprocket to propel your mower's wheels. Replace if chain is stretched, rusted, or mower loses drive power. Verify fit.

Replace worn, cracked, or missing handle grips on your lawn mower or snow blower. Restores comfortable control and cushioning to equipment handles.

Replacement lever spring for gas walk-behind and self-propelled mowers. Installs on control lever assembly. Replace if worn, stretched, or broken.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Flat washer for lawn mowers and outdoor power equipment. Installs between fasteners to distribute load and prevent damage. Replace if missing or worn.

Shield nut for lawn mowers. Secures protective shields and guards in place. Replace if threads are stripped, nut is missing, or won't tighten properly.

Flange bearing enables smooth operation and prevents overheating in lawn mowers. Replace if equipment runs rough or bearings show wear. Verify fit.

Lawn mower sleeve bearing allows flexible motion between components and reduces vibration. Replace if worn or damaged to restore smooth operation.

Ratchet wheel for lawn mowers. Installs in the drive mechanism to enable continuous motion in one direction. Replace if cracked, worn, or damaged.

Hardware spacer for lawn mowers. Installs on shafts to create proper gaps between connections. Replace if cracked, damaged, or missing for correct fit.

Spacer component for lawn mowers and tillers. Reduces friction between parts while maintaining proper spacing. Replace if worn, damaged, or missing.

Replacement rear skirt for lawn mowers. Protects user from grass clippings and debris. Replace if cracked, broken, or detached for safe operation.

Protective trailshield that attaches to the back of your lawn mower deck. Replace if torn, dented, loose, or missing to maintain safe operation.

Hex washer head screw for lawn mowers and snow blowers. Replace worn, stripped, or missing fasteners on deck, housing, or engine components.

Self-tapping screw for lawn mowers and outdoor power equipment. Replace if stripped, missing, or damaged during maintenance or repairs. Standard fastener.

This is a genuine replacement front axle Y cover for a lawn mower. The front axle Y cover protects the front axle from any damage due to wear. It is held by two or four bolts that attach it to the deck. It can increase the lifespan of a lawn mower by protecting the axle. Over time, the cover or the bolts securing it to the deck can deteriorate, necessitating replacement.Replacing the front axle Y cover is a simple process. It will require a flat head screwdriver, socket extension, 3/8 inch socket. Remove the previous axle cover by removing the bolts underneath the deck. Then, line up and attach the new front axle Y cover to the deck and fasten the bolts. New bolts are not included with this replacement part. If the bolts attached to the current front axle Y cover are also worn or damaged, bolts can be purchased separately. This is a genuine OEM part and is sold separately.

Bowed washer for lawn mowers and tractors. Installs in fastening mechanisms to reduce friction. Replace if worn, damaged, or missing from assembly.

Fix lawn mower vibration or loose components with this block bushing. Facilitates smooth rotational movement and secures internal machinery. Easy DIY fix.

Replacement wheel assembly for lawn mowers and chipper shredders. Installs on axle to support and maneuver equipment. Replace if cracked, broken, or dry rotted.

This genuine replacement part is a 9 x 2 inch MTD wheel complete assembly. This part is for use with walk-behind self-propelled lawn mowers. This complete wheel features link tread to provide better grip. This wheel assembly is the rear wheel, and attaches to the bottom of the mower to allow for good grip and smooth rolling, even on uneven ground. Over time, the wheels on a lawn mower can wear out or become damaged. This can reduce traction or affect the alignment of the mower. Replacing the wheel assembly is simple, but be sure to shut off the engine of the mower. Allow the engine to become cool before installing this part. Disconnect the spark plug to prevent the mower from accidentally starting. This OEM replacement part is made of high quality plastic, and is sourced directly from the manufacturer. This part is sold individually. This part is compatible with a variety of Craftsman, Cub Cadet, Yard Machines and MTD lawn mowers.Please note: original part numbers 734-1836, 734-1837, 734-1838, 734-1981, 734-1850 are now obsolete, and manufacturer has replaced the original part numbers with this part.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Wave washer helps secure fasteners and improve operation on lawn mowers and walk-behind equipment. Direct fit replacement part for push and self-propelled models.

Shield mounting screw for lawn mowers and tillers. Secures protective shields and covers to the mower deck. Replace if screw is stripped, missing, or damaged.

This is a pawl that can serve as a replacement for some mower models, as well as chippers and shredders. The pawl attaches to the ratchet pawl plate. The pawl is essential for starting the engine. When the starter turns, the pawl is forced outward and locks onto the flywheel, allowing the engine to start. When the starter rope is let go, the springs pull back the ratchet pawls. If there is damage to the pawl, the engine will not start.The piece is made from durable metal, and it is built to last. However, it can start to wear down over time. Additionally, there is the potential that it could corrode. If there are issues with the pawl, replace them as soon as possible to ensure their machine continues to operate properly.This pawl can work with select models from MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Husky. The piece is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.

Replacement fastener for lawn mowers and tractors. Secures components and panels in place. Order a new fastener if yours is stripped, missing, or damaged.

Wheel hubcap that secures to lawn mower wheels for a finished look. Replace if yours is cracked, broken, or missing to protect the wheel assembly.

Tap screw for lawn mowers and tractors. Secures panels, guards, and components. Replace if stripped, rusted, or missing to restore proper assembly.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This v-belt is a genuine MTD part, sold individually. This v-belt can be used as a replacement part for a lawnmower. This v-belt facilitates rotation so that power is directed to the wheels and the mower deck. The v-belt works in conjunction with the small engine to power the lawnmower.Visible signs of damage include punctures, tears, scratches, rips, and erosion to the material that could prevent it from properly facilitating rotation in the lawnmower. If this occurs, the v-belt should be removed and replaced with this genuine OEM replacement part before using the lawnmower again.This is an OEM part sourced directly from the manufacturer. It is sold individually. This v-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Yard Man, Troy-Bilt, and Cub Cadet.

Replaces worn, dull, or damaged 21-inch mulching blades on walk-behind mowers. Features curved design for effective mulching. Upgrade your rusty blade.

Blade adapter kit for lawn mowers. Connects the cutting blade to the engine crankshaft. Replace if cracked, stripped, or worn to restore secure blade mounting.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Hex screw fastener for lawn mower and lawn tractor small engines. Secures components together. Replace if lost, stripped, or corroded during maintenance.

Replace your lawn mower's cracked or broken 21-inch top discharge chute. Directs grass clippings away from the deck during mowing operations.

Replace your cracked or missing lawn mower mulch cover. This protective plate installs on the deck to shield internal components and users from debris.

Replace your broken or missing lawn mower discharge chute assembly. Directs grass clippings away from the mower deck during operation. Essential part.

Replace your broken or missing lawn mower discharge chute assembly. Directs grass clippings away from the mower deck during operation. Essential part.
