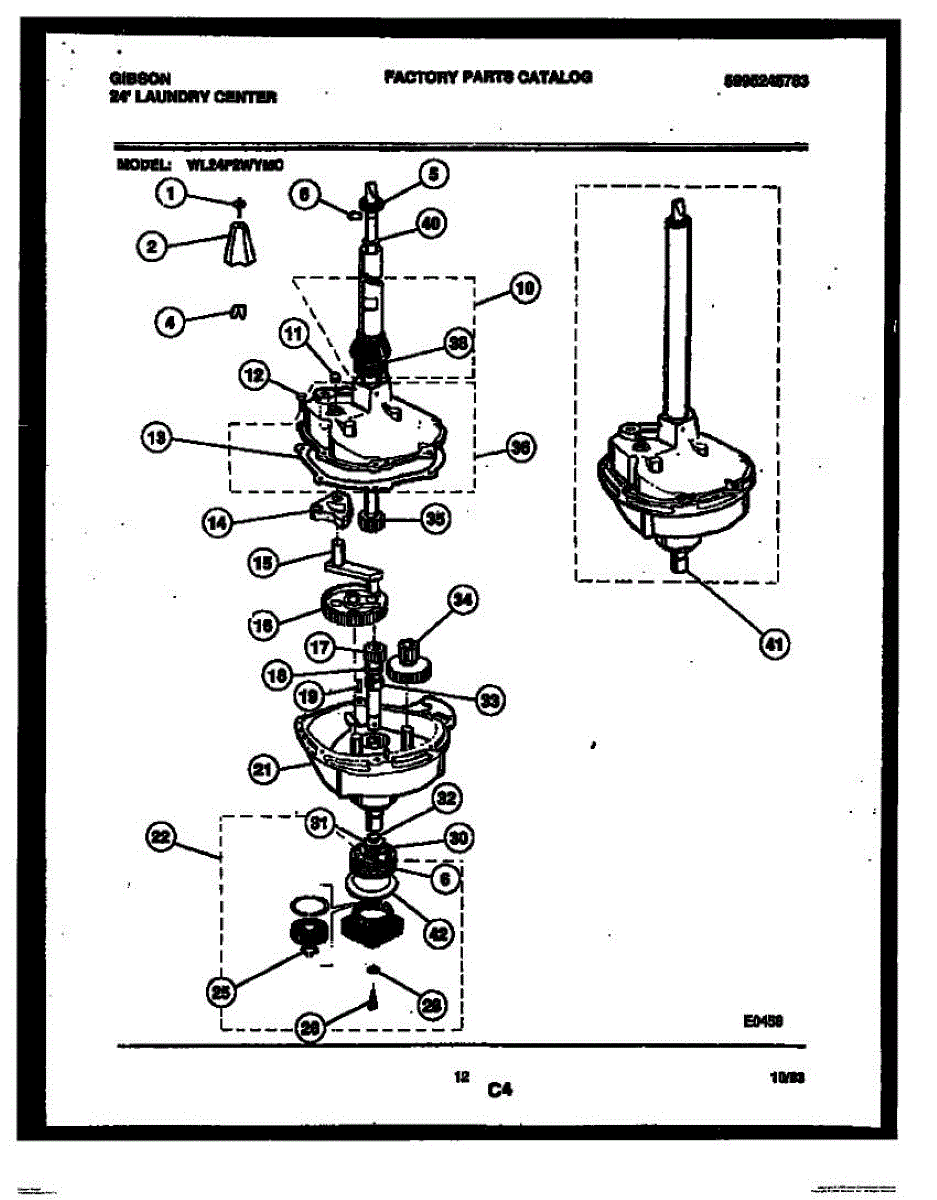

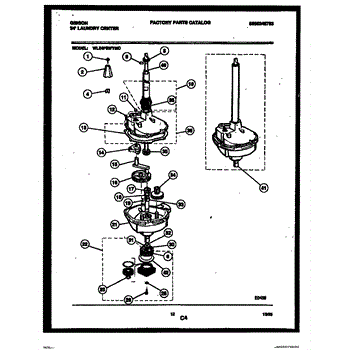

Parts for Frigidaire WL24F2WYMC: 07 - Transmission Parts

This mounting bolt securely fastens components inside your washer during operation. It prevents parts from loosening due to vibration and should be replaced if missing, damaged, or if you hear rattling sounds during wash cycles.

This is a rubber lip seal that fits around the upper portion of the washer's basket drive tube, preventing water from leaking past the shaft and into the transmission or bearings below. It creates a watertight barrier between the wash tub and the drive mechanism. Replace this seal if you notice water leaking from beneath the washer tub, hear grinding noises during the spin cycle, or find oil residue under the machine.

Replace your worn washer tub seal to stop leaks and restore watertight protection. Install during tub or pump repairs. Verify fit with your model number.

This is a rubber seal gasket that fits between the transmission gear case housing halves on a washing machine. It prevents gear oil from leaking out of the transmission assembly during operation. Replace this gasket if you notice oil leaking from the bottom of the washer or if the transmission is being disassembled for repair.

Agitator rod and gear kit for washers. Connects the agitator to the drive system. Replace if gears are stripped, worn, or rod is broken or damaged.

This is an oil seal that fits around the transmission shaft where it enters the gear case on a washer or laundry center. It prevents water from leaking into the gear case and keeps lubricating oil from leaking out. Replace this seal if you notice oil leaking from the bottom of the washer, water entering the transmission, or if the unit is making grinding noises during the agitate or spin cycle.

Suspension spring for washer drum support system. Replaces worn, stretched, or broken springs that no longer properly suspend the tub assembly.

Oil leaking from agitator or poor spin performance? This washer transmission assembly restores wash and spin cycles. Advanced repair, 2-3 hours.

A small molded clip that secures appliance wiring and harnesses to the cabinet, helping keep wires in place and reducing wear or rubbing. Use this clip when a loose or shifted harness needs a reliable anchor point. What it does:

• Fastens wiring or harnesses to the cabinet to prevent movement and chafing
• Keeps wires routed away from heat, moving parts, and sharp edges
• Helps reduce vibration noise caused by loose wiring
• Can prevent intermittent electrical issues caused by damaged insulation or connectors

• Disconnect power before accessing internal wiring or panels
• Remove the panel or trim needed to reach the original clip location
• Press the clip into the factory mounting hole or snap the wire into the clip until secure
• Inspect nearby wiring and harnesses for damage; replace any damaged wiring before reassembly

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

This is a small spring that attaches to the lid of a laundry center washer, providing tension to hold the lid in position. It helps the lid stay open during loading and close securely during operation. Replace this spring if your washer lid won't stay open, slams shut on its own, or the original spring is broken or stretched out.
