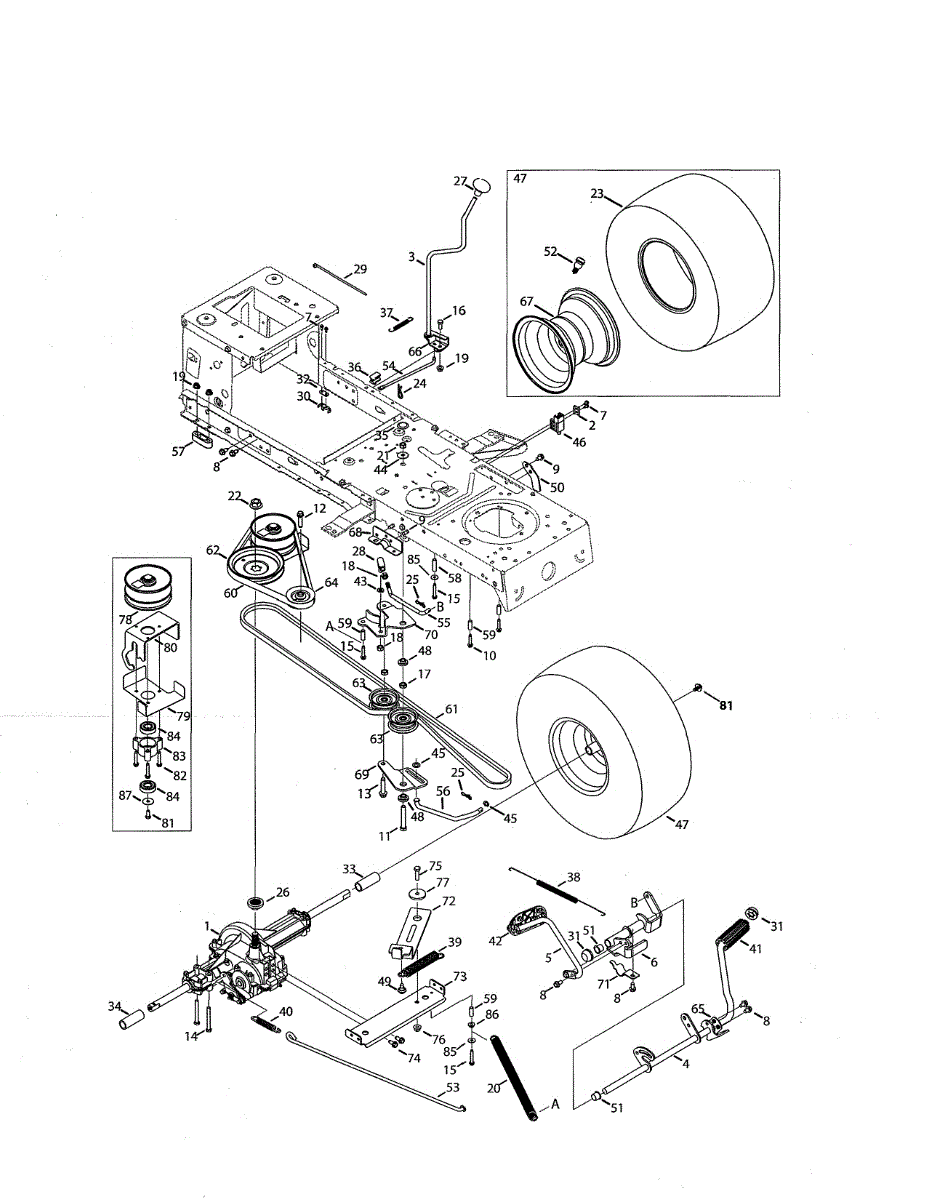

Parts for Mtd 13BL78XT099: Transmission Parts

Lawn tractor won't move forward or backward? This transaxle assembly restores drive power. Moderately difficult repair requiring mechanical skill.

This replacement part is a lever shaft assembly. This lever is intended for use with lawn mowers and assists the user shifting to and from certain gears. If the lever itself is cracked or dented, it might not be able to function effectively.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

Autodrive pedal assembly for front-engine lawn tractors. Replaces cracked, broken, or worn pedal controls. Installs in footrest area for speed control.

Pedal bracket assembly for lawn tractors. Mounts the foot pedal that controls speed. Replace if bracket is cracked, bent, or pedal mechanism is loose or damaged.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Hex head screw for lawn tractors and riding mowers. Secures covers, guards, and structural components. Replace if stripped, missing, or damaged.

Replace your lawn mower's hex head tap screw if lost, stripped, or damaged. This small fastener secures components on mowers, tillers, and edgers.

Replacement screw for lawn tractors. Secures various components throughout the mower assembly. Order a new one if original is stripped, missing, or damaged.

Fully-threaded hex tap screw for lawn tractors and outdoor power equipment. Fastens machine components together. Replace if damaged, stripped, or missing.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

Fix loose or vibrating parts with this jam nut. Used as a locknut to secure standard nuts in place on mowers and tractors. Easy 5-minute installation.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Extension spring for lawn tractors and riding mowers. Replace if damaged, stretched, or causing engagement issues. Verify fit with your model number.

Flange nut with integrated hub for lawn tractors and riding mowers. Replaces worn, stripped, or missing hardware on mower decks and assemblies.

Secures pins and shafts on lawn tractors and riding mowers. Replace if bent, missing, or worn. Bow-tie design inserts through pre-drilled holes.

Drive pulley hub for lawn tractors and riding mowers. Replaces cracked, worn, or broken hubs that connect drive components. Essential structural part.

This shift knob is a genuine MTD part, sold individually. A shift knob can be used as a replacement part in a lawn mower or a tiller. This genuine OEM part is made out of high quality, durable metal material that is built to last for the typical lifespan of the appliance.The shift knob in a lawn mower or a tiller might need to be replaced if it ceases to perform its central function for the appliance. This could occur if the shift knob has suffered damage from general wear and tear over long-term usage or as the result of a direct impact collision with a hard object, such as a rock or a curb.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This shift knob is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

Ball joint assembly for lawn tractor steering systems. Secures tie rod ends and drag links. Replace if cracked, worn, or damaged to restore proper steering.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

Insulator nut plate for lawn mowers. Self-wrenching fastening component that secures parts within the mower. Replace if cracked, damaged, or missing.

Axle sleeve for riding mowers and lawn tractors. Installs on the axle shaft to provide support and alignment. Replace if cracked, worn, or missing.

Replacement sleeve for lawn tractors and riding mowers. Install this part when the original is worn, cracked, or missing to restore proper fit and function.

Shift rod bearing for lawn tractors and riding mowers. Replace if you experience difficulty shifting gears or hear grinding noises. Verify fit with your model.

Extension spring for lawn tractors and riding mowers. Replaces broken, stretched, or missing springs in various linkage and deck assemblies.

Extension spring for lawn tractors. Replace if worn, stretched, or broken to restore proper tension and operation. Verify fit with your model number.

Extension spring for lawn tractors and riding mowers. Replace if damaged, stretched, or losing tension to restore proper operation. Verify fit with model.

Replacement foot pedal pad for lawn tractors and riding mowers. Installs on control pedals. Needed when original pad is worn, cracked, or missing.

Pedal pad for lawn tractors adds comfort between pedal and foot during operation. Replace when worn or cracked to maintain safe control. Confirm fit.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

Hub cap washer for lawn tractors and riding mowers. Replaces worn, cracked, or missing washers that secure the hub cap. Essential hardware component.

Mower won't start even with brake engaged? A faulty interlock switch blocks current to the starter. This safety switch replacement restores starting function.

Shoulder spacer for lawn tractors and riding mowers. Maintains proper spacing between components during assembly. Replace if missing, damaged, or worn.

This is a shoulder screw commonly used as a replacement for use with lawn tractors and mowers. This screw is used to secure the grille's pivot bracket on the machine. If the screw is damaged, it could be difficult to use the grille on the tractor. Replace the screw if they notice any problems.The shoulder screw is made from metal and it is durable. However, it could have some damage that would require a replacement. The threads might become stripped, or the screw could even start to corrode. The edges of the screw could also start to wear away. The screw is small, and it could be lost when working on the tractor, which is another reason a replacement may be needed.The shoulder screw will work for many tractor models from MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky. The screw is sold individually, so owners might want to have several of them available. This is a genuine OEM replacement part.

Nyliner bearing for lawn tractors and riding mowers. Replace when you notice excessive play or noise in moving parts. Verify fit with your model number.

Tubeless air valve for lawn tractor and mower tires. Replace when cracked, leaking, or damaged during tire changes. Installs in wheel rim for proper inflation.

Transmission foot pedal rod for riding mowers and lawn tractors. Connects the pedal to the transmission linkage. Replace if bent, broken, or worn.

Spacer for lawn tractors and riding mowers. Installs between components to maintain proper clearance. Replace if worn, damaged, or missing during repair.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Transmission drive belt for lawn tractors. Replace if you notice slipping, squealing, or loss of power during operation. Verify fit with your model.

Variable speed drive belt connects engine to transmission for lawn tractors and riding mowers. Replace if stretched, damaged, or broken. Verify fit with your model.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

V-belt idler pulley for riding mower transmission systems. Replace this pulley if worn, cracked, or causing belt misalignment on your lawn tractor.

Shift adjustment bracket for lawn tractors. Mounts to the transmission linkage to fine-tune gear shifting. Replace if bent, cracked, or missing.

Wheel rim assembly for riding mowers and lawn tractors. Secures the wheel to the axle hub. Replace if cracked, bent, or damaged from debris impact.

Idler arm bracket for lawn tractors. Applies tension to drive belt and supports flat idler pulley. Replace if damaged or belt slips. Verify fit.

Service kit for lawn tractors. Includes essential maintenance components for routine servicing. Replace during scheduled maintenance or when parts are worn or missing.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

This is a variable speed pulley, designed as a genuine replacement part for use in select lawn tractors and riding mowers. The variable speed drive pulley is designed to control the drive belt, in combination with the throttle and choke, to help control the engine speed and provide the right level of movement during the mowing process. The pulley is subject to repetitive motion and constant stress, which can cause it to wear. It can become bent or damage from impact, as well. A damaged or broken pulley will cause the engine to malfunction or not work at all, rendering the tractor useless until it is replaced. Using a genuine OEM replacement like this model is essential. This specific drive pulley fits select models from Craftsman, Cub Cadet, Troy-Bilt, and Murray. It is sold as an individual unit. Be sure to disconnect the spark plug before working on the engine. Allow the engine to cool completely and wear gloves for safety. Several tools will be required for this job, including flathead and Phillips screwdrivers as well as a socket or wrench set.

Replace the hex screw in your lawn tractor or riding mower. Used to secure various components throughout the machine. Order a new screw if damaged or lost.

Bearing cup works with cone to provide stability and support radial/axial loads in your lawn tractor. Replace if worn or damaged. Verify fit with model number.

Sealed ball bearing reduces friction between fixed parts and rotating shafts. Replace if you hear grinding noise or notice wheel wobble. Verify fit.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.
