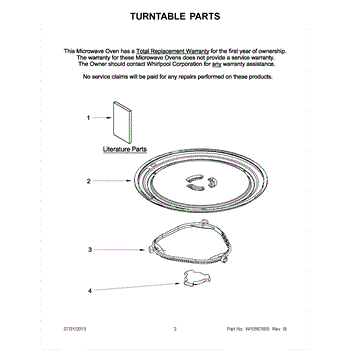

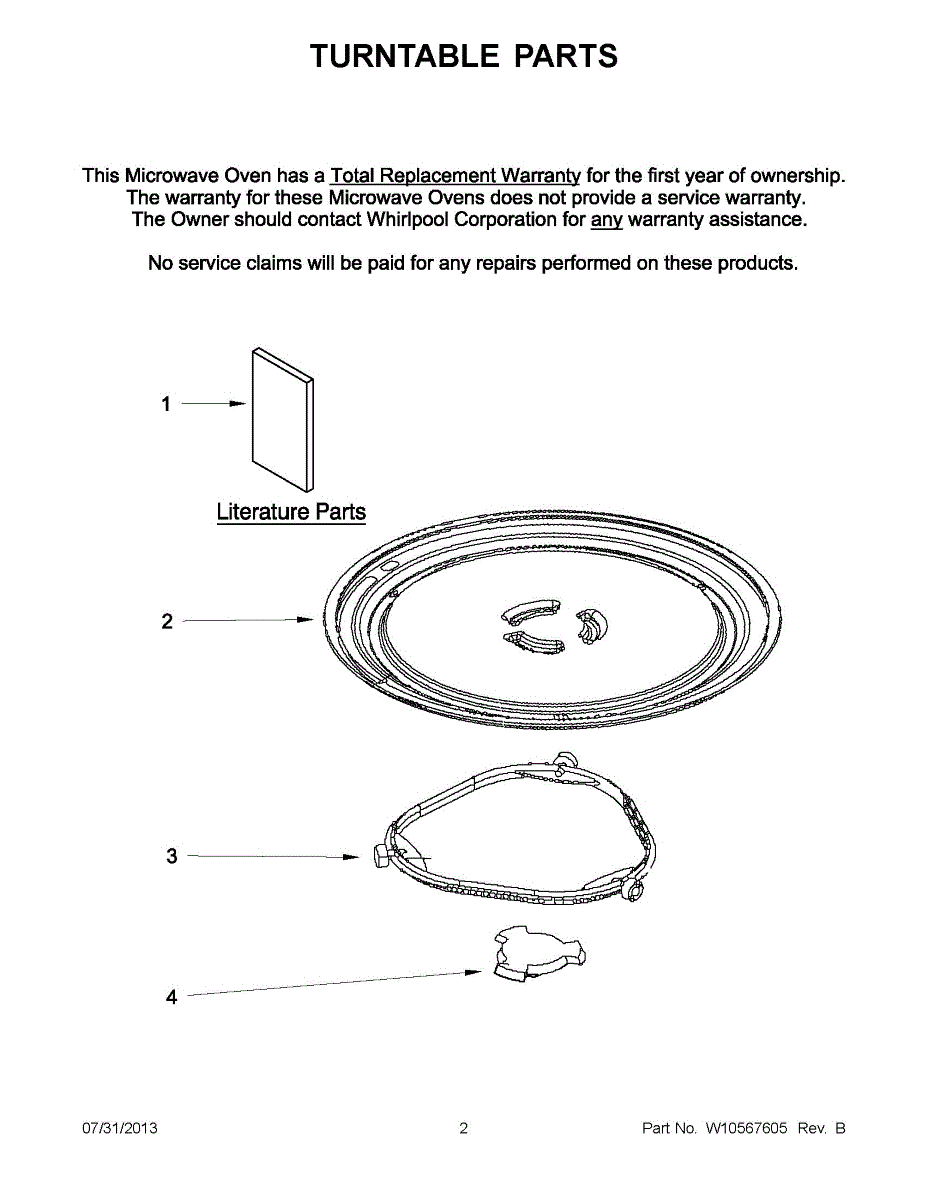

Parts for Kitchenaid KCMS1655BWH0: 01 - Turntable Parts

This round glass tray sits on the microwave's roller ring and engages the drive coupler. It provides a stable surface for dishes and rotates during cooking to help heat food more evenly.

• Supports food while cooking and reheating
• Engages the center hub to rotate with the turntable system
• Helps promote consistent, even heating when properly installed
• Replaces a cracked, chipped, or missing tray; can address wobbling when the original is damaged or not seated

• Unplug or disconnect power before servicing
• Position the roller ring correctly, then seat the new tray onto the center drive coupler so it sits flat
• Operate only with the tray fully seated and roller ring in place per your owner's manual

This turntable support ring, also called a roller ring, sits under the microwave glass tray and lets it rotate smoothly for even heating. Replace when the tray stalls, wobbles, rides rough, or makes scraping noises. What it does:

• Supports and guides the glass turntable as it rotates
• Helps maintain smooth, level movement for consistent cooking
• Wear or damage can cause the tray not to turn, wobble, scrape, or slip off track
• Useful to inspect if turntable rotation is intermittent or noisy

• 1 turntable support ring

• Disconnect power before servicing; unplug or switch off the circuit breaker
• Remove the glass tray, lift out the old ring, and clear any debris from the oven floor
• Position the new ring correctly (rollers downward), reinstall the tray, and test rotation
• Do not operate the microwave without the ring and tray properly seated

This shaft-turn is the replacement turning shaft that links the drive to the rotating assembly, restoring proper rotation and mechanical engagement. It's a direct-fit service part for repair of worn or damaged shafts. What it does:

• Transfers rotational motion from the drive to the rotating assembly so the unit can spin or turn as designed
• Restores smooth rotation when the original shaft is bent, worn, or seized
• Helps eliminate grinding, scraping, or binding during operation
• Supports alignment of connected moving components to reduce wobble or vibration

• One shaft-turn

• Disconnect power before beginning any repair to avoid shock or injury
• Basic hand tools required; access typically requires removal of exterior panels or the relevant assembly
• Inspect mating bearings, bushings, and fasteners; replace any damaged components to ensure proper fit
