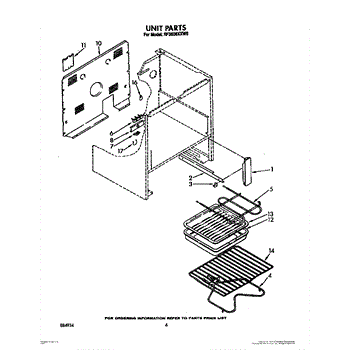

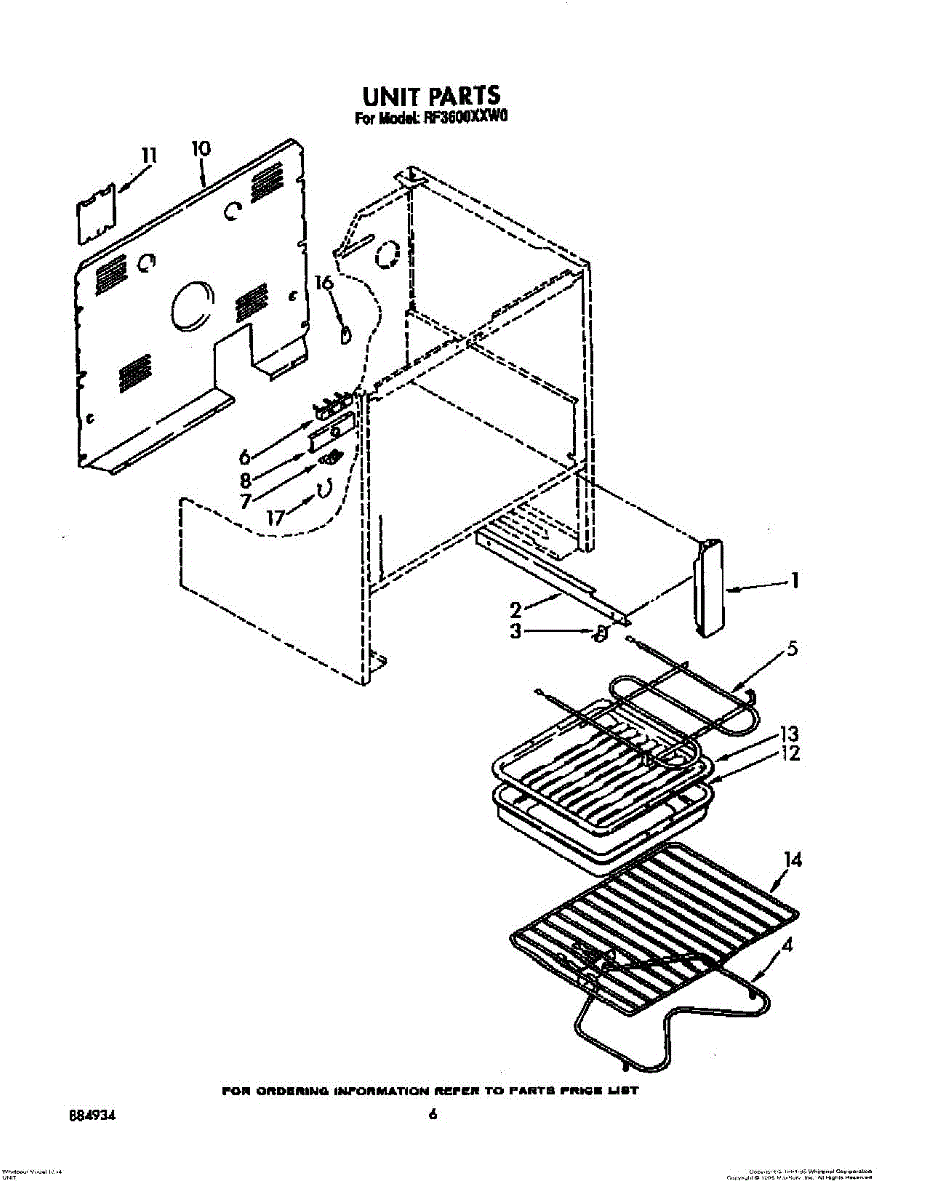

Parts for Whirlpool RF3600XXN0: 05 - Unit, Lit / Optional Parts

Size: 10-32 x 1/2 inch.

Oven not heating or slow to preheat? The bake element is likely burned out. This bottom heating coil replacement is a simple DIY fix in minutes.

Fix an oven that won't broil or brown food properly. This broil element restores top heat for searing. Easy DIY repair, typically done in 30 minutes.

Size: #9-15 x 1 inch long. Hex head.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Ground wire clip for ranges and ovens. Secures grounding wire to chassis. Replace if clip is broken, bent, or missing to ensure proper electrical ground.

Specs: 10-16 x 1/2 inch.

This terminal block access cover protects the appliance's electrical connection area, helping keep wires shielded and reducing the risk of accidental contact. It restores the factory appearance and helps maintain safe operation. What it does:

• Shields the terminal block and wiring from dust, debris, and accidental contact
• Helps prevent shorting or arcing at the power connection area
• Restores a finished look after service or replacement of wiring components
• Supports safe access control by covering live terminals when installed

• Disconnect power at the breaker or unplug the appliance before servicing.
• Remove or loosen the mounting fasteners for the old cover, then position and secure the replacement cover.
• Verify the cover fits flush and does not pinch wiring; ensure all connections are tight before restoring power.

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Touch-up paint. Color: Black. Size: 0.6 fl.oz. can.

Size: 1/3 oz.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Specs: 25ft, 14 Ga. 150 c Black

This facia panel is the exterior trim that covers and protects the appliance control area, restoring a clean finished appearance. It replaces cracked, scratched, or worn control-panel trim to help protect buttons and electronics from dirt and moisture. What it does:

• Covers and protects the control board, buttons and selector areas
• Restores the appliance's original appearance when the control area is damaged or faded
• Helps keep dirt, grease and moisture away from sensitive controls
• Supports proper button alignment and user input when original trim is warped or broken

• Disconnect power to the appliance before beginning any disassembly.
• Removal usually requires detaching the control console trim; keep fasteners and clips for reassembly.
• Handle the new panel carefully to avoid scratches or damage to painted/finished surfaces.

Specs: 25ft,14 Ga., 200 c Brown

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

Non-corrosive silicone adhesive sealant for appliance repairs. Replace cracked or missing seals on door panels, trim strips, and interior edges.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

Color: White. Size: 13 oz. Spray paint primer. can.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

White touch-up paint for covering minor scratches, chips, and blemishes on oven liners. Restores appearance of damaged oven interior surfaces.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
