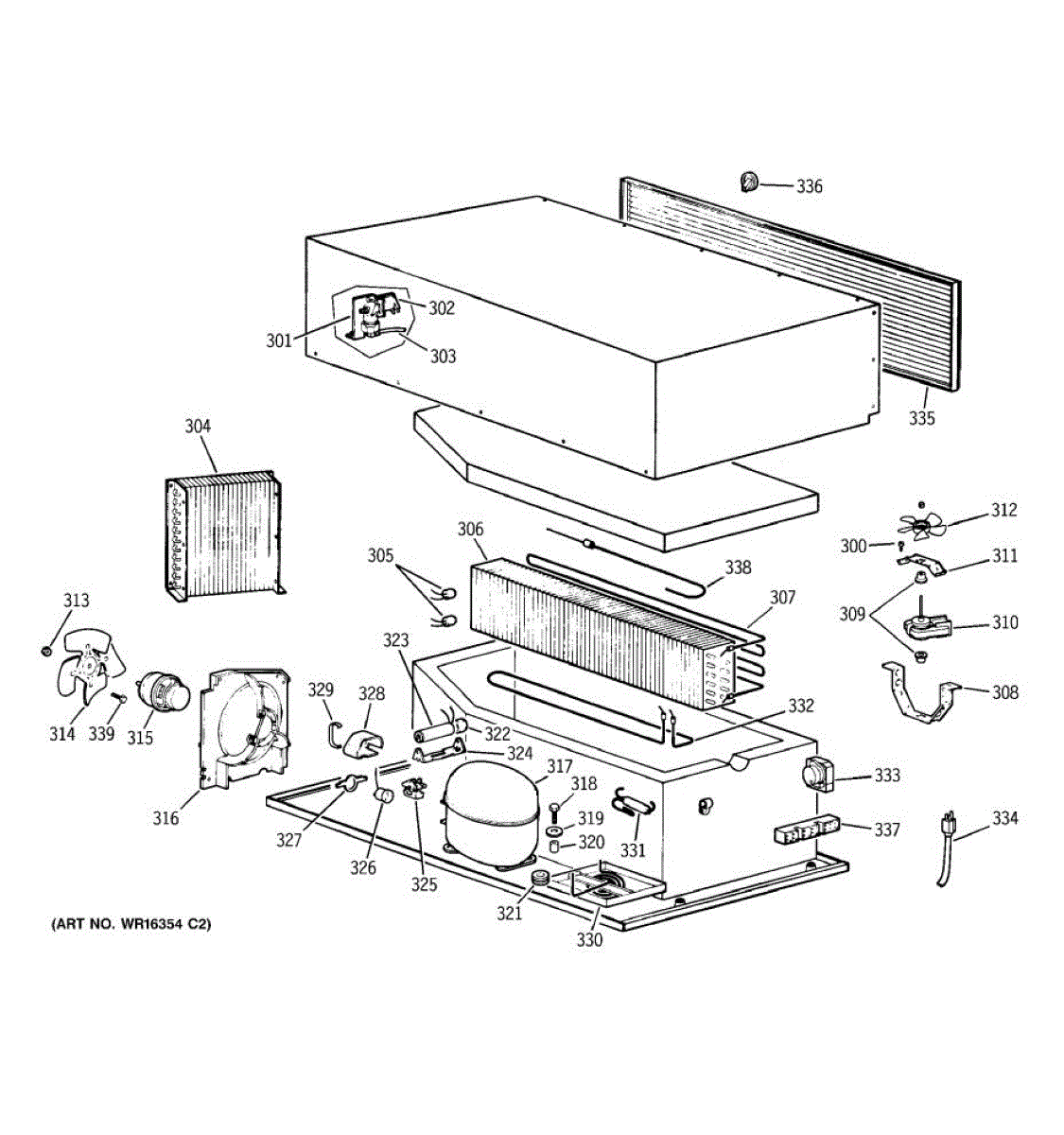

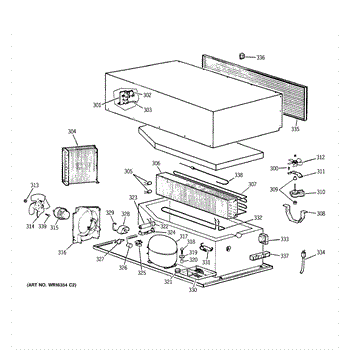

Parts for Ge BIS42AJB: 04 - Unit Parts

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

Open - 45, close - 25

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

The Condenser Fan Motor is an OEM part for GE refrigerators. It is designed to circulate air through the condenser coils, helping to dissipate heat and keep the refrigerator's internal components cool. This ensures efficient operation and prevents the compressor from overheating, which is essential for maintaining the refrigerator's performance and longevity.

You should replace the condenser fan motor if it becomes faulty. Causes of a bad fan motor can include electrical failures, wear and tear from regular use, or blockages that cause the motor to overheat or burn out. A malfunctioning fan motor can lead to inadequate cooling, increased energy consumption, and potential damage to other refrigerator components.

Symptoms of a bad condenser fan motor include:

• The refrigerator not cooling properly
• Unusual noises coming from the back of the refrigerator
• The compressor running hot or cycling on and off frequently
• The condenser coils feeling excessively hot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drain heater is the replaceable sump heater that helps clear standing water and prevent freezing in the dishwasher drain path. Restores heater function so the unit can drain and complete cycles reliably. What it does:

• Heats the drain/sump area to aid in removing and evaporating standing water
• Helps prevent water from pooling at the end of a cycle
• Used when a dishwasher fails to fully drain or leaves water in the tub after a cycle
• Works as the OEM-designed heater element for compatible GE dishwashers

• Disconnect power to the appliance at the breaker before beginning any service
• Access typically requires removing the lower kick panel and possibly the dishwasher toe panel
• Observe wire connector locations and routing; match all connectors when reassembling

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation
