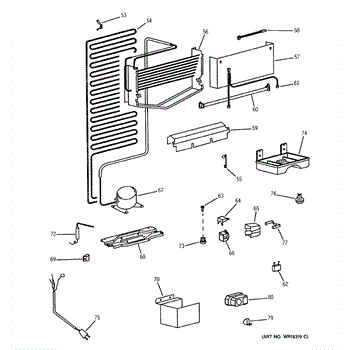

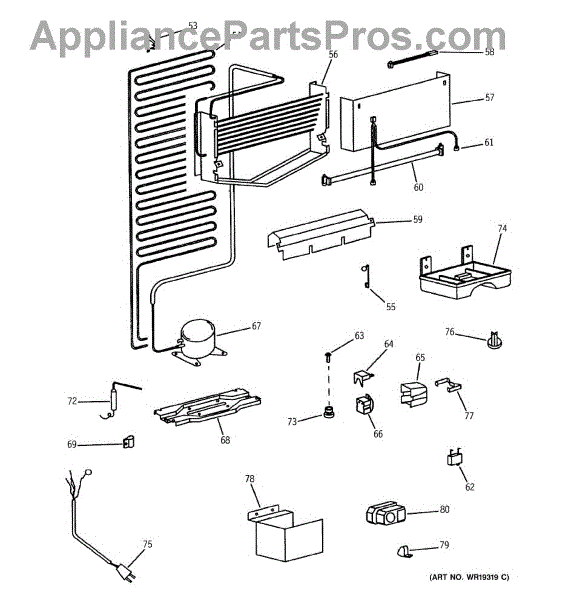

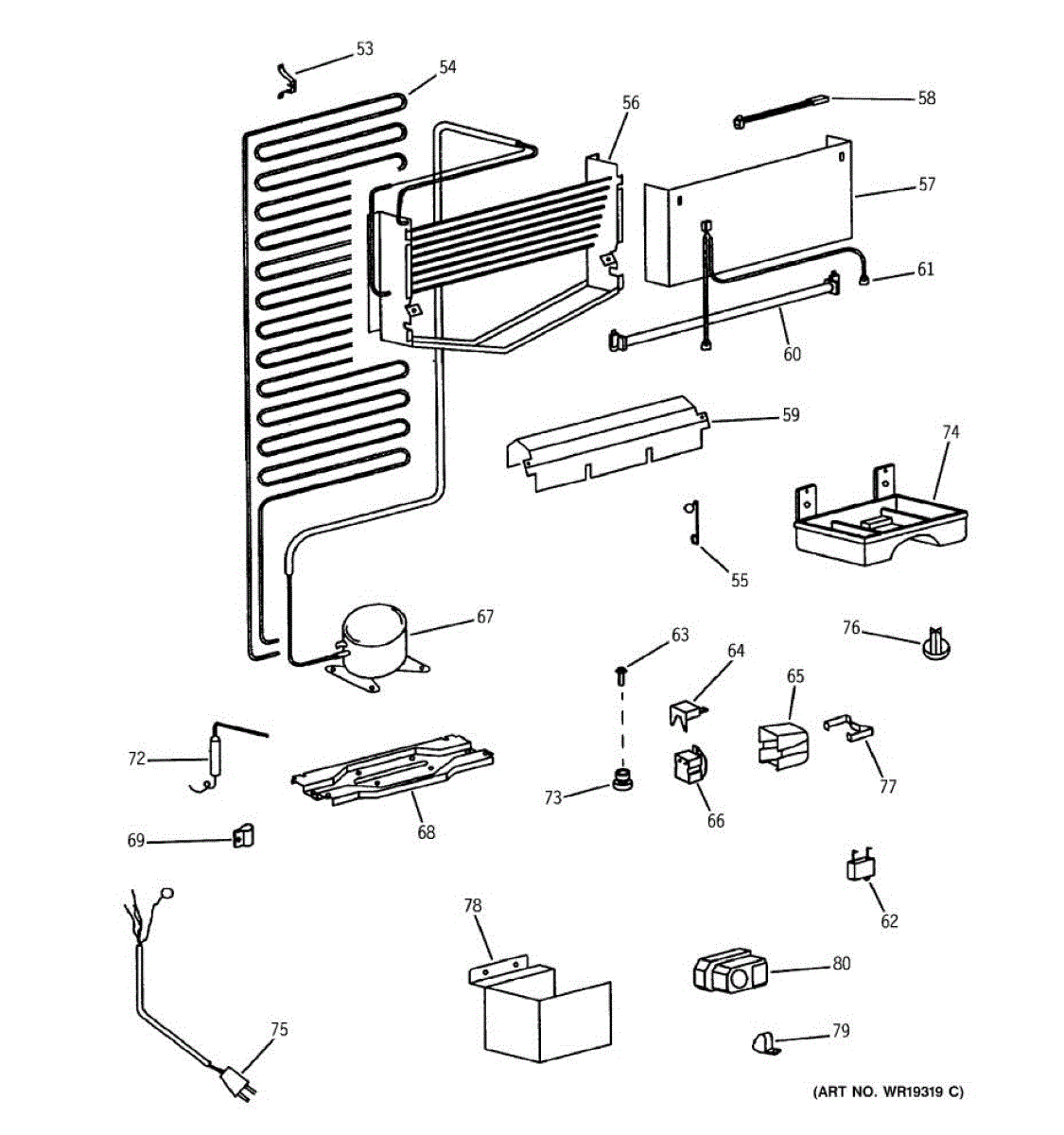

Parts for Ge TBX10SNSBLAD: 03 - Unit Parts

This plate condenser support secures the condenser assembly in place to keep the condenser stable and properly spaced inside the appliance, helping maintain efficient airflow and reduce vibration. What it does:

• Holds the condenser plate/coil in the correct position to prevent contact with other components
• Helps reduce rattling and vibration caused by a loose or damaged condenser mount
• Maintains clearance for proper condenser airflow, supporting cooling performance
• Replaces bent, cracked, or corroded condenser support hardware

• One plate condenser support

• Disconnect power to the appliance before starting any repair
• Handle condenser fins and edges carefully — wear gloves to avoid cuts
• May require basic hand tools; verify fastener types and locations before removal
• Inspect adjacent mounts and brackets while replacing this part

The Defrost Thermostat is an OEM part for GE refrigerators. It regulates the temperature of the defrost cycle by sensing the temperature of the evaporator coils and signaling the defrost heater to turn on or off. This helps prevent ice buildup on the coils, ensuring efficient cooling and proper refrigerator operation.

You should replace this defrost thermostat if it fails to regulate the defrost cycle correctly. Common causes of a bad thermostat include electrical failures, wear and tear from regular use, or damage from temperature fluctuations.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup in the freezer
• Refrigerator not maintaining the correct temperature
• Defrost cycle not activating
• Water leaking inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

The Defrost Timer is an OEM part for GE refrigerators. This part manages the defrost cycle of the fridge and freezer compartments, ensuring that the evaporator coils do not build up excessive frost.

This cycling is crucial for maintaining optimal temperatures for food preservation and energy efficiency. Over time, the defrost timer can malfunction due to wear, electrical issues, or a buildup of dust and debris, leading to poor performance or failure.

Symptoms of a bad Defrost Timer include:

• Frost buildup in the freezer compartment
• The refrigerator or freezer is not maintaining the set temperature
• The fridge or freezer sections are too warm
• The defrost cycle does not activate, leading to reduced cooling efficiency

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
