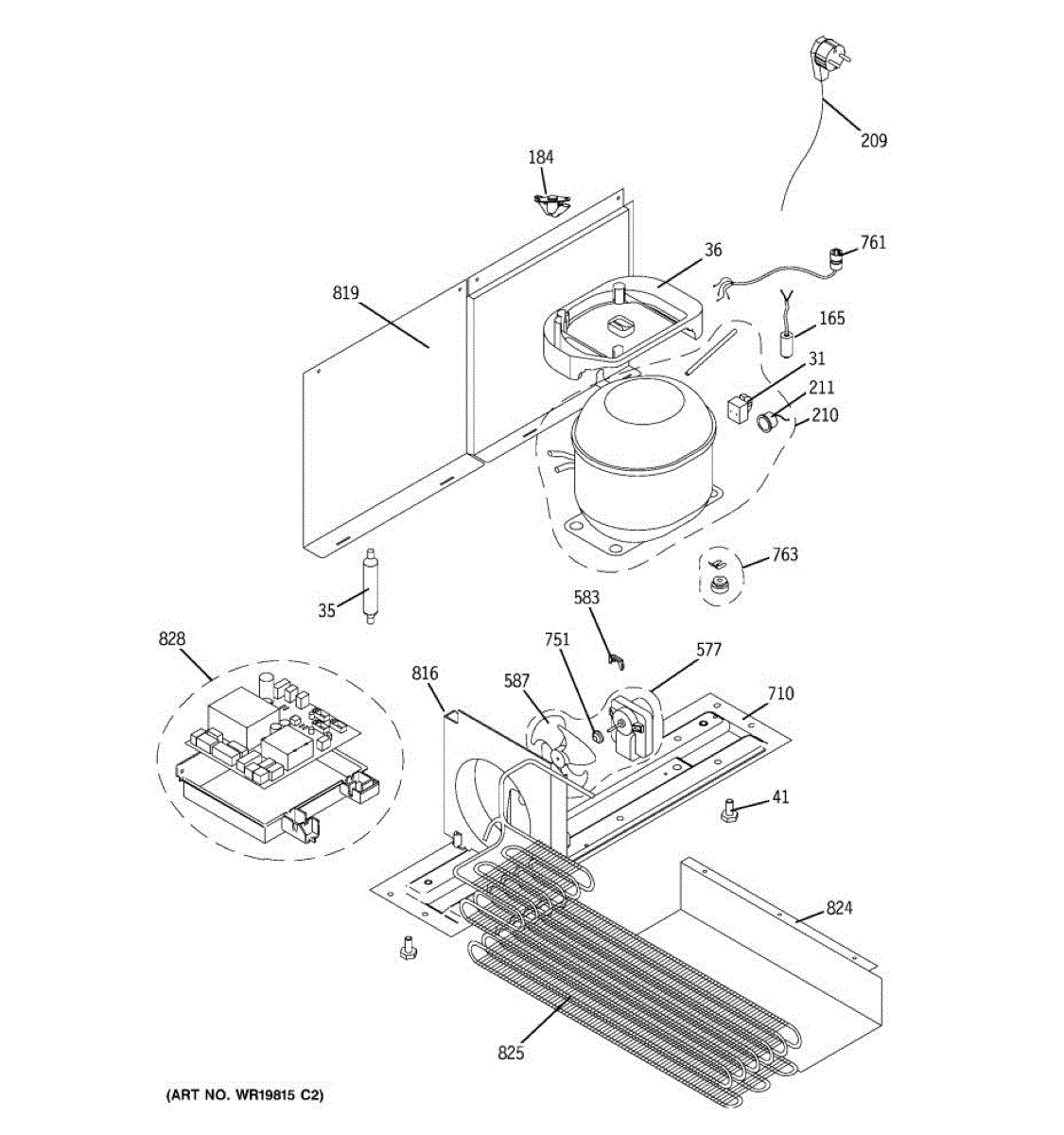

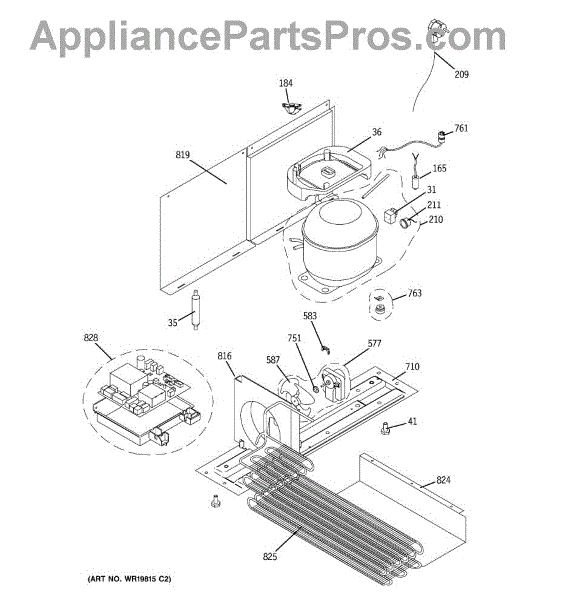

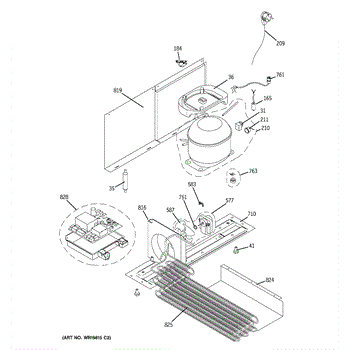

Parts for Ge ZDBT240PBBS: 04 - Unit Parts

This compressor start relay helps the refrigerator compressor start reliably so the appliance can cool properly. Replaces a failed start relay to restore compressor starting function and reduce hard-start symptoms. What it does:

• Provides the initial boost to the compressor motor during startup so the compressor can engage
• Commonly used when a fridge hums but the compressor won't start or cycles on and off
• Works with the compressor's start circuit; not a replacement for an overheat protector or run capacitor unless specified

• One start relay

• Disconnect power to the appliance before beginning any work
• Typically mounts on or near the compressor; remove access panel to reach compressor terminals
• Swap the old relay for the new unit, matching terminal positions; secure any clips or covers

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement drip tray catches and channels condensation or defrost water away from the refrigerator base to help prevent pooling and floor damage. It restores proper drainage and keeps the cabinet area drier. What it does

• Collects defrost and condensation water from the evaporator area and directs it to the drain or evaporator pan
• Helps prevent water pooling under the fridge or inside lower compartments
• Replaces cracked, warped, or missing trays that cause leaks or odors
• Compatible with models that use a fitted rectangular drip tray in the freezer/refrigerator base

• One drip tray

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove lower kickplate or access panel per your model's service instructions to reach the tray
• Replace the tray by sliding it into the molded guides; ensure proper seating for correct drainage
• Check and clear the drain tube before reassembly

This adjustable foot replaces a worn or damaged leveling leg to stabilize and level your appliance for safe, even operation. It restores a steady base and helps prevent rocking, vibration, and uneven cooking or door alignment. What it does

• Replaces the appliance's adjustable leveling leg to raise or lower one corner for a level fit.
• Helps stop rocking and reduce vibration that can cause noise or movement during use.
• Can correct uneven doors, misaligned drawers, or uneven cooking surfaces caused by a tilted appliance.
• Fits where the factory leveling foot has become stripped, cracked, or worn.

• One adjustable foot.

• Follow the appliance manufacturer's service instructions; disconnect power or gas supply and remove cookware or oven racks before working on the unit.
• Support the appliance when lifting or tilting; use a second person or appropriate jack to prevent tipping.
• Hand-thread the foot into the mounting bracket; adjust height gradually until the appliance sits level on a flat floor.

This replacement power cord restores the appliance's connection to household power so it can operate safely and reliably. Designed to replace a worn or damaged cord and stop intermittent or total power loss. What it does:

• Provides the electrical connection between the appliance and the outlet
• Restores power when a frayed, cut, or damaged cord causes outages or intermittent operation
• Ensures a secure connection at the appliance strain-relief point
• Helps eliminate arcing or heat build-up from damaged wiring

• Always unplug the appliance or disconnect power at the breaker before servicing
• Route the cord and secure the strain relief per the appliance wiring harness layout

This overload protector helps safeguard the compressor by shutting it down during electrical overloads or overheating, preventing damage and improving appliance reliability. Fits select GE refrigerators and mounts on the compressor body. What it does:

• Senses excessive current or heat at the compressor and interrupts power to prevent burn-out
• Helps stop hard-starting compressors from running continuously when overloaded
• Works with the start device/relay as part of the compressor starting and protection circuit

• Disconnect power to the appliance before accessing the compressor or electrical components
• Mounted on the compressor; may require removing a rear access panel and repositioning the start device/relay
• Inspect the start relay and wiring harness while replacing the overload for best results

The Condenser Fan Motor is an OEM replacement part for GE refrigerators. It is designed to ensures proper airflow, dissipating heat and preventing the compressor from overheating. It helps to regulate the temperature inside the refrigerator, ensuring efficient operation and preservation of your food.

A bad condenser fan motor can occur due to various factors, including normal wear and tear, motor failure, or damage to the fan blades. If you notice symptoms such as unusual noises, warm temperature inside the refrigerator, or the compressor running excessively, it may indicate a need to replace the condenser fan motor.

Symptoms of a bad condenser fan motor include:

• Unusual noises coming from the condenser unit
• Warm temperature inside the refrigerator
• Excessive running of the compressor

Restore your refrigerator by replacing the faulty condenser fan motor with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This wiring harness assembly connects the refrigerator compressor to the electrical system so the compressor receives power and control signals. Replaces a damaged or worn compressor harness to restore reliable electrical connection. What it does:

• Provides the electrical pathway between the compressor and the appliance wiring/controls
• Transmits power and control signals required for compressor operation
• Prevents loose or corroded connections that can cause intermittent compressor function
• Commonly replaced when the compressor won't start, the fridge cycles abnormally, or there is visible wire damage

• Always disconnect power to the appliance before servicing electrical components
• Inspect connectors and routing; replace if terminals are corroded or insulation is cut
• Match connector orientation and secure harness to prevent chafing or contact with hot surfaces

This is a power supply board used in refrigerators and beverage coolers. This component is used to manage and monitor temperatures and other settings related to the appliance. It is a part made up of many small components and any one of them can go bad and cause problems over time. If there is an issue with the power supply board, it will often cause the refrigerator to stop working. In this situation, the power supply board should be replaced.Basic tools will be needed to replace the refrigerator power supply board. It should also be unplugged before starting the replacement process. The location of this component may vary based on the appliance model. Often, it will be behind an access door on the back of the refrigerator. Unscrew the door to remove the original power supply board. Reinstall the wires and other components on the new part, install, and return power to the appliance.This is an authentic OEM replacement part that is sourced directly from the manufacturer. The power supply board is sold on an individual basis. It is designed to be used with refrigerators and wine and beverage coolers by General Electric.
