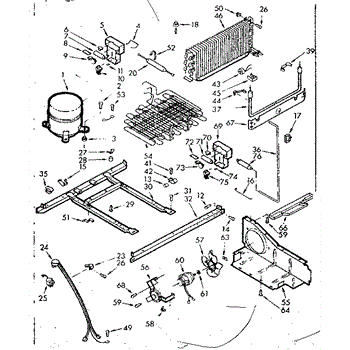

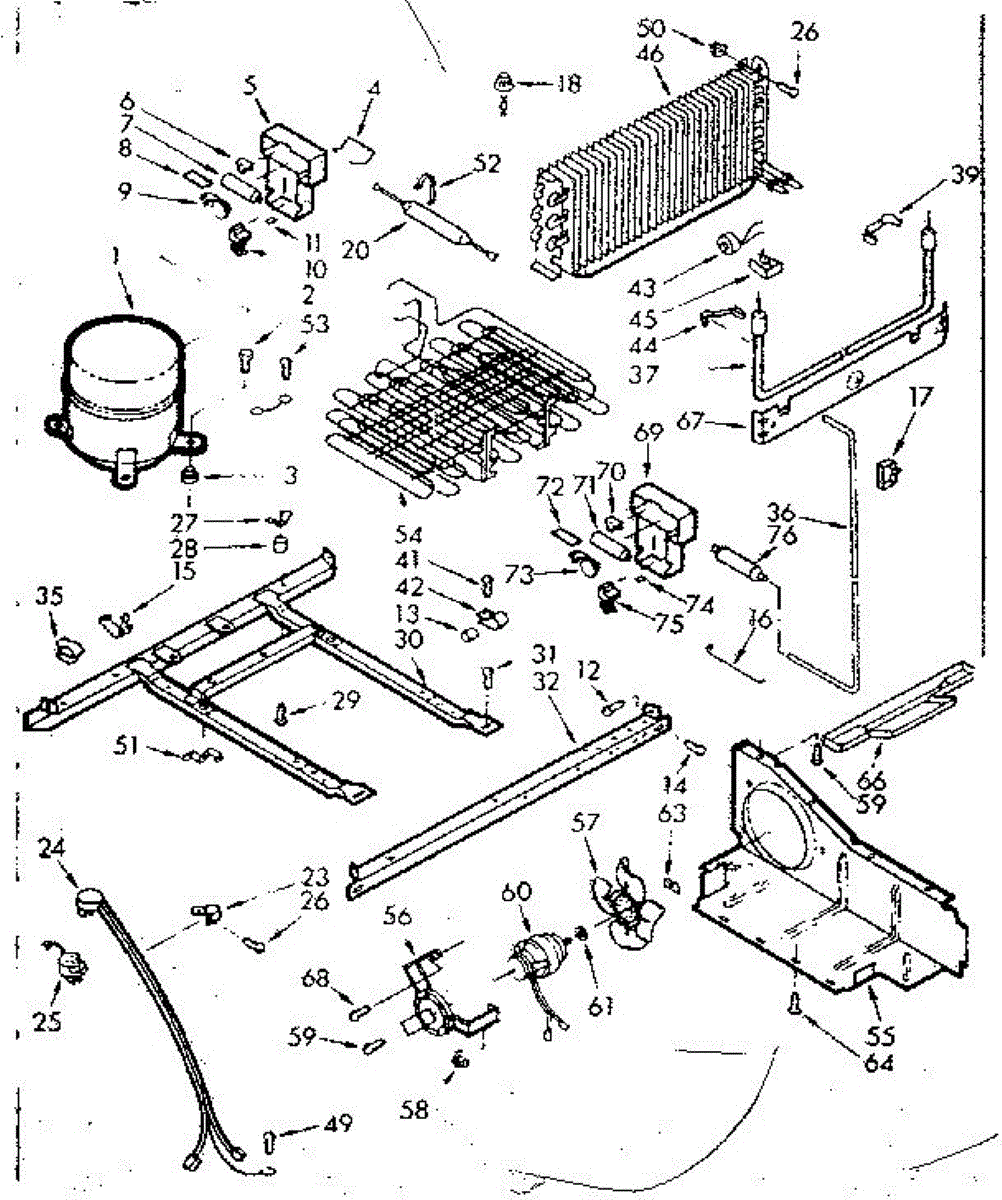

Parts for Kenmore 106.7629224 (1067629224, 106 7629224): Unit Parts

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

Compressor relay & overload combination kit with all related mounting hardware. Replaces old style relay and overload.

Start relay for refrigerator compressors that helps the compressor begin running at power-up. Replacing a failed relay can restore normal starting behavior and resolve common startup symptoms. What it does

• Provides the initial start current path to the compressor during startup.
• Allows the compressor to reach running speed, then drops out once the motor is running.
• Common symptoms a bad relay may cause: compressor clicking, humming without starting, intermittent cooling or frequent cycling.
• Installed as the electrical component used only on compatible compressor assemblies.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access the relay at the compressor; remove and replace the relay only after confirming diagnostics.
• Dispose of the old electrical part per local regulations.

Ref Defrost Thermostat L70 Comes With Bracket

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This OEM Replacement Part is a high-quality, 2-watt condenser fan motor for Whirlpool refrigerators.The motor is designed to optimize your refrigerator's cooling performance. This 115-volt motor operates with a clockwise rotation.

Symptoms of a bad condenser fan motor kit include:

• Gradual rise in interior freezer temperatures
• Inability to maintain consistent cooling performance
• Loud buzzing or grinding noises coming from inside
• Tripped breakers or failure to restart after service

Causes stem from normal wear of ball bearings as the high-efficiency motor operates continuously. Exposure to dust or debris introduced through openings accelerates wear over many years of use.

This OEM part is also compatible with brands including Kenmore, KitchenAid, and Danby.

This part has been discontinued by the manufacturer and is no longer available.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
