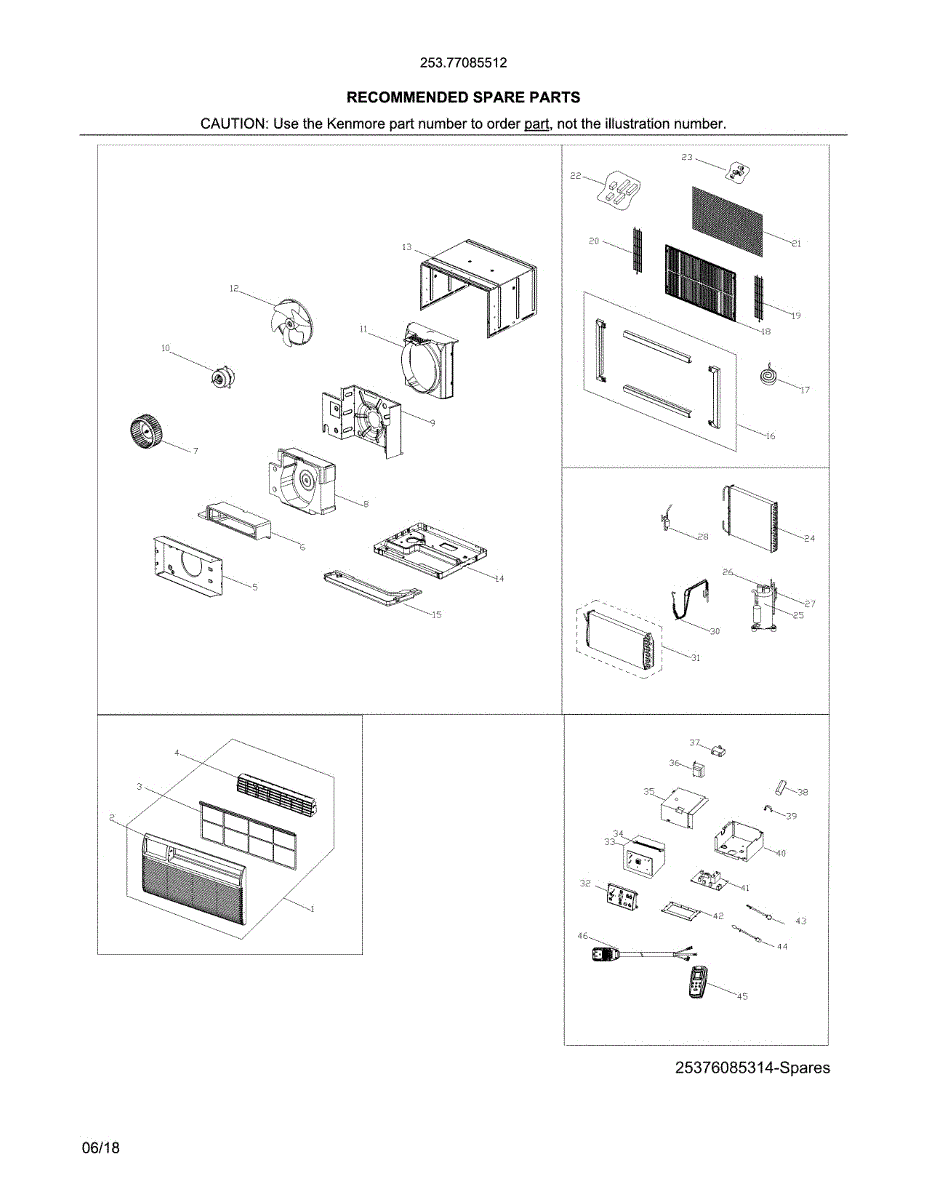

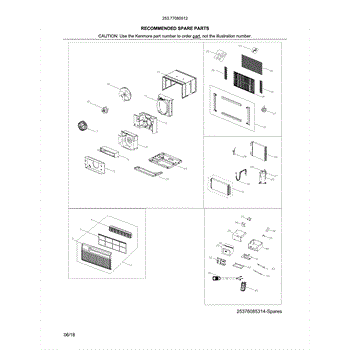

Parts for Kenmore 253.77085512 (25377085512, 253 77085512): Unit Parts

This air filter screens the air moving through your appliance's ventilation system, capturing odors and fine particles. Replacing a clogged or damaged filter helps maintain proper airflow so the unit vents and circulates air as designed. What it does:

• Captures odors and airborne particles as air passes through the unit
• Helps maintain proper airflow/venting performance
• Reduces debris buildup on internal components
• Common signs it's due: persistent odors, reduced airflow/venting, a visibly dirty or damaged filter

• 1 air filter

• Disconnect power and allow hot surfaces to cool before servicing
• Open the filter access panel or grille and note the filter's orientation
• Remove the old filter; seat the new filter fully and close the cover
• Restore power and verify proper airflow

This blower wheel circulates air through the dryer drum and venting system to maintain proper airflow for efficient drying. Replaces a worn or damaged wheel to help restore drying performance and reduce unusual noises. What it does:

• Channels air from the dryer motor through the drum and exhaust system
• Helps maintain consistent drum airflow for faster, more even drying
• Can reduce or stop rattling, scraping, or thumping noises caused by a broken or imbalanced wheel
• Restores proper vent pressure that can prevent extended dry cycles

• Disconnect power to the appliance before beginning any repair.
• Access usually requires removing the dryer front or rear panel; keep fasteners organized.
• Inspect the motor shaft, mounting clip, and housing for wear; replace damaged hardware as needed.

This base is the lower cabinet support that stabilizes and secures the appliance's bottom panels for proper alignment and operation. It restores a level, secure foundation for safe, quiet performance. What it does:

• Supports and evenly distributes the appliance weight across the cabinet bottom
• Secures lower trim and panels to prevent gaps and misalignment
• Helps reduce rocking, vibration, and floor contact noise when damaged or worn
• Maintains correct clearance at the appliance bottom for proper airflow and fit

• Disconnect power and water before starting any repair.
• Use two people or proper lifting tools to tilt or lift the appliance safely.
• Basic hand tools required; follow the appliance service manual for panel removal and reinstallation.

This fastener kit supplies the assorted screws and clips used to secure panels and components on compatible Frigidaire appliances, helping restore proper fit and stop loose or rattling parts. Ideal for repairs where original mounting hardware is missing or damaged. What it does:

• Replaces worn, missing or damaged mounting hardware so panels, brackets and trim stay secure
• Helps eliminate vibration noise and loose-fitting parts that cause rattling
• Restores correct alignment for doors, panels or internal assemblies that use small fasteners
• Provides the specific fasteners needed for the factory-replacement process

• Basic hand tools (screwdrivers, nut drivers) are typically required; refer to your model's service manual for exact fastener locations and torque
• Turn off power and disconnect the appliance before starting any repair to avoid shock or injury
• Handle small parts carefully and keep them away from children and pets

This electronic PC board controls a refrigerator's user interface and operating functions, restoring normal control and display behavior when the original board fails. It replaces the fridge's main control electronics to help resume normal operation. What it does

• Manages user inputs, electronic controls, and display signals so the appliance responds correctly to settings
• Controls compressor, defrost, and fan signals to regulate cooling cycles
• Helps prevent erratic operation caused by failed or damaged control circuitry
• Common symptom linkage: unresponsive control panel, blank or incorrect display, or intermittent cycling

• Disconnect power before servicing to avoid electric shock; confirm power is off with a meter
• Handle the board by its edges and avoid static discharge; use ESD protection if available
• Follow OEM service manual for removal and reinstallation steps; note connector locations and wire routing

A replacement motor start/run capacitor that helps the refrigerator's compressor and fan motors start and run more reliably. Restores proper motor operation when the original capacitor has failed or weakened. What it does:

• Provides the boost of electrical charge motors need to start and maintain proper running speed
• Commonly linked to symptoms such as a humming compressor, motors that won't start, or intermittent cooling
• Helps stabilize motor performance and reduce hard-starting that can strain components
• Used in refrigeration motor circuits that require a start/run capacitor

• One motor start/run capacitor

• Disconnect power to the appliance before beginning any service
• Capacitors can hold a charge—discharge safely
• Inspect mounting and wiring; replace using the same terminal connections and secure mounting

This electronic control is the main console board that manages oven functions and user controls, restoring responsive buttons and cycle logic for accurate cooking. It replaces a failed or unresponsive control assembly to return normal operation. What it does:

• Receives input from the touchpad/knobs and runs the oven's timing, temperature and bake/broil sequences
• Manages display readouts and on/off status for cycles and timers
• Stops or prevents cycles when the control is faulty (symptoms: blank display, unresponsive controls, incorrect cycle behavior)
• Works with safety interlocks and sensors to regulate heating elements and maintain set temperatures

• One electronic control board

• Disconnect power at the breaker or unplug the appliance before starting
• Handle the board carefully and avoid static discharge; use ESD precautions if available
• Remove the console/back panel screws to access and swap the control assembly; keep hardware for reinstallation
• After install, restore power and verify all functions and displays operate normally

This oven temperature sensor detects the internal temperature and sends readings to the range control so the oven can maintain accurate cooking temperatures. Replaces a failed or intermittent sensor to restore reliable temperature control. What it does:

• Senses oven cavity temperature and provides temperature data to the control board
• Helps the control maintain set bake/roast temperatures
• Common symptom: oven temperature is incorrect or fluctuates during cooking
• Common symptom: cook cycles take too long or oven does not reach set temperature
• Common symptom: oven displays a temperature sensor or sensor fault code

• One oven temperature sensor (1 each)

• Disconnect electrical power to the appliance before removing or installing the sensor
• Handle the sensor carefully to avoid damaging the probe or wiring and ensure proper connector seating
• Inspect wiring and connector for damage; replace if frayed or corroded

The Thermistor is an OEM replacement part for Frigidaire room air conditioners. Located within the air conditioner unit, the thermistor accurately monitors and regulates the equipment's internal air temperature. Precisely calibrated at the factory, the thermistor allows the unit to continuously achieve and maintain the preset cooling level preferred by the user.

Symptoms of a bad thermistor include:

• Inconsistent or fluctuating room temperatures
• Difficulty reaching or maintaining desired temperatures
• The control panel shows abnormal temperature readings

Causes can be age-related deterioration of sensing components, moisture exposure damaging circuitry, or loose wiring connections preventing exact temperature measurement over time. This OEM thermistor restores precise temperature control.

Replacing a faulty thermistor prevents improper compressor cycling which wastes energy. Compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This handheld remote control operates the appliance from across the room, letting you change temperature, fan speed, and modes without opening the unit. It restores remote control convenience for compatible Frigidaire units. What it does:

• Sends command signals to the air conditioner to change temperature, fan speed, mode, timer, and power settings
• Helps resolve issues where the unit won't respond to remote commands
• Provides the same button layout and functions as the original factory remote for straightforward operation
• Uses standard replaceable batteries for power

• Insert fresh batteries and point remote directly at the unit's IR receiver; follow any pairing steps in the owner's manual
• Replace only with the exact part number
• Dispose of used batteries properly and keep remote away from moisture or extreme heat
• Check the unit's receiver and control board for issues

This wiring diagram is the factory electrical schematic used to identify wiring paths and component connections, helping you read and trace circuits for accurate diagnosis and repair. What it does:

• Shows wiring routes, connector labels and circuit paths for the appliance's electrical system
• Helps locate which wires feed specific components and where connectors plug in
• Useful when troubleshooting power loss, intermittent operation or component failures
• Clarifies control board and harness relationships for testing and repair

• One wiring diagram sheet

• Always disconnect power before accessing wiring or panels
• Use the diagram as a reference for diagnosis; confirm wiring and colors on the actual unit
• Do not cut or splice the factory wiring diagram itself; replace panels and retain the diagram for reference
