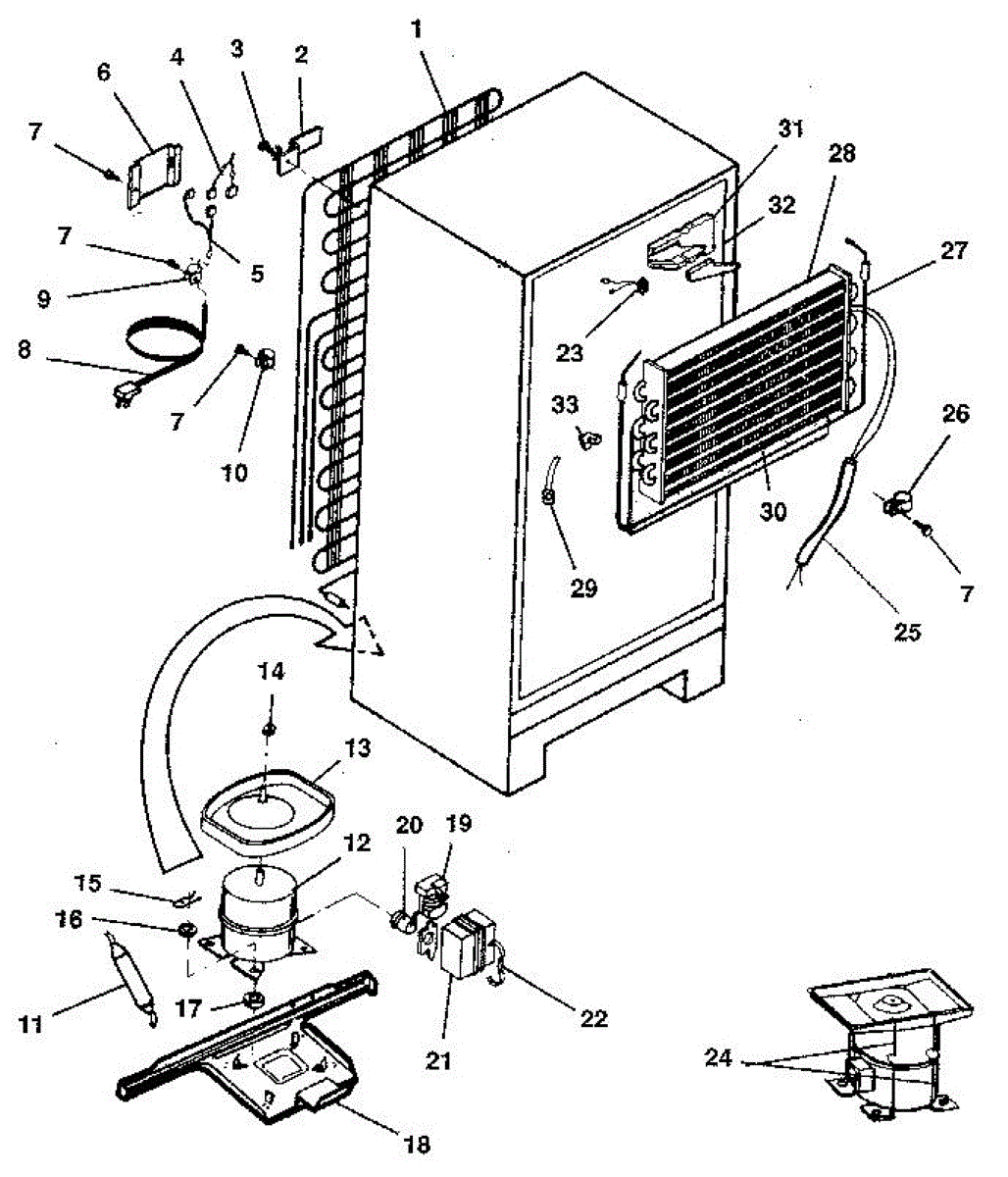

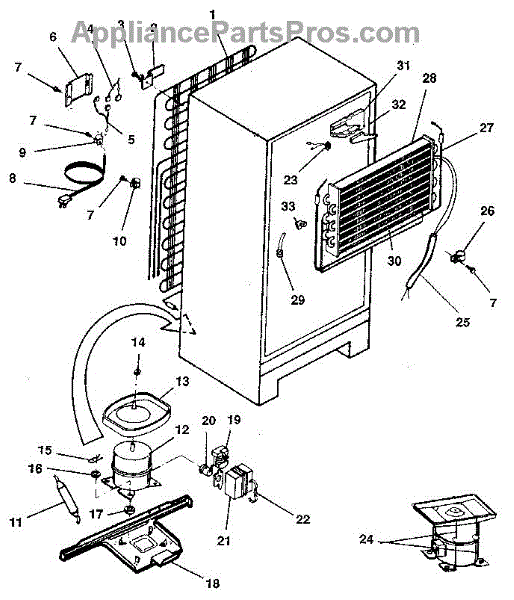

Parts for Kenmore 253.9305064 (2539305064, 253 9305064): Unit Parts

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Includes service line.

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

This wheat-colored electrical plug restores a secure connection in the appliance wiring harness, helping ensure reliable power delivery to components and reducing intermittent operation or loss of function. What it does:

• Provides a secure, color-coded connection point for wiring harness terminals.
• Holds and insulates mating terminals to prevent shorts and corrosion.
• Maintains continuity to the associated component so it runs reliably.
• Common symptom: component or circuit works intermittently or not at all when the plug or its terminals are loose or damaged.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Match plug orientation and fully seat the connector until it clicks; do not force.
• Inspect wiring and terminals for damage; replace any frayed wires or corroded terminals before installing.
• After installation, restore power and verify the affected component operates normally.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

This part has been discontinued by the manufacturer and is no longer available.

White plastic hinge plug cover for freezer doors. Replaces cracked, broken, or missing decorative plugs that cover hinge mounting holes on the cabinet.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

Tapping plate that mounts to the freezer cabinet structure. Replace this metal plate if it's cracked, bent, corroded, or missing to restore proper assembly.
