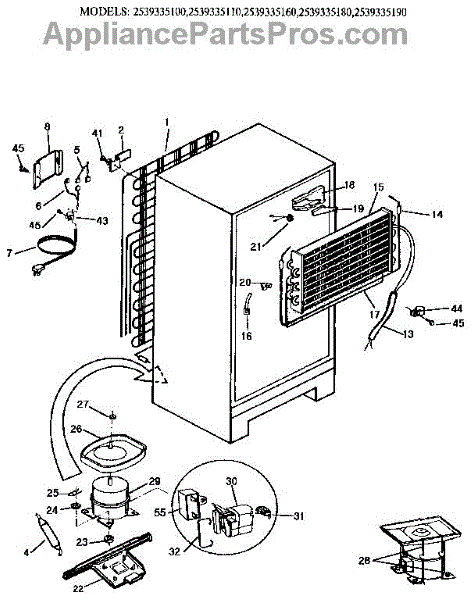

Parts for Kenmore 253.9335100 (2539335100, 253 9335100): Unit Parts

Replace a loose or missing extension lock washer causing rattling noises or unstable component mounting. Simple DIY fix in under 15 minutes.

Includes service line.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

Replacement screw for securing panels, brackets, and covers on appliances. Replaces missing, stripped, or damaged screws to restore alignment.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures compressor to mounting bracket in your refrigerator. Replace if clip is broken, loose, or causing vibration noise. Verify fit with your model number.

Sound dampening foam pad for refrigerators and freezers. Installs on evaporator or compressor area to reduce vibration noise. Replace if worn or missing.

This is a wire-style clamp that secures the overload relay cover on the compressor at the back of the refrigerator. It holds the protective cover tightly in place over the relay and overload components to prevent them from coming loose. Replace this clamp if it is bent, broken, or missing, which can allow the relay cover to detach and leave electrical components exposed.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

This part has been discontinued by the manufacturer and is no longer available.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
