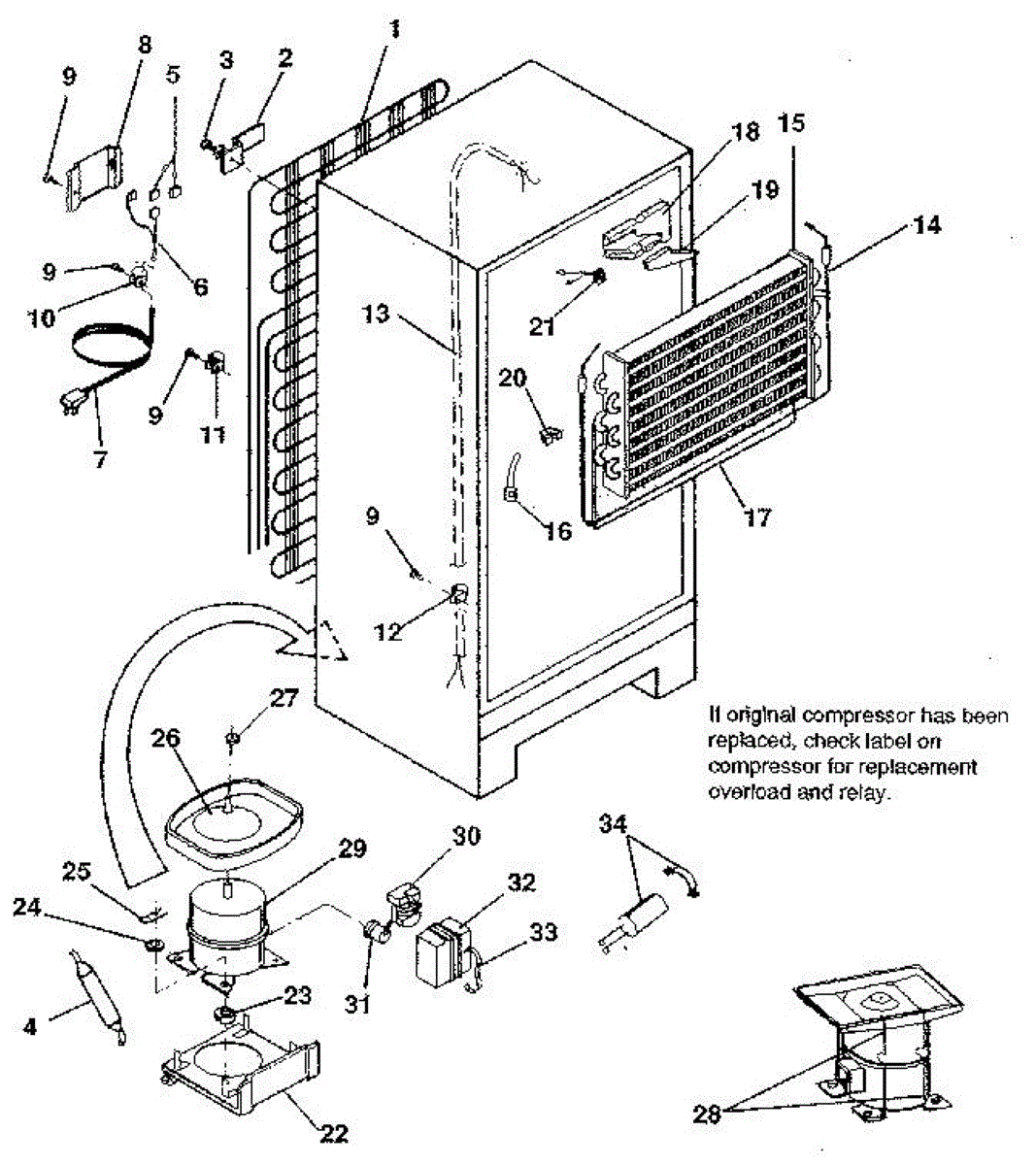

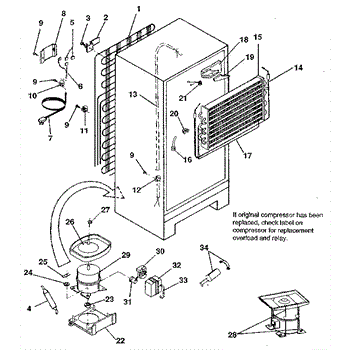

Parts for Kenmore 253.9600191 (2539600191, 253 9600191): Unit Parts

No. 10 grounding

Includes service line.

Galvanized Steel

The defrost heater mounts at the evaporator to melt accumulated frost during the automatic defrost cycle. Replacing a failed heater restores airflow and temperature stability, preventing ice buildup that blocks vents and reduces cooling performance. What it does:

• Heats the evaporator coil to clear frost during the defrost cycle
• Maintains airflow across the coil for consistent cooling
• Common symptoms: heavy frost on the back wall or coils
• Weak/no airflow or fan hitting ice; warmer temperatures; long run times

• One defrost heater

• Disconnect power before servicing
• Access the evaporator and allow heavy ice to thaw—do not force ice off the fins
• Transfer any mounting clips and route wires like the original, away from sharp edges
• Handle the element carefully; reinstall the evaporator cover before restoring power

This aluminum strap secures the defrost heater firmly against the evaporator coil to maintain proper contact during defrost. Correct contact improves heat transfer so frost melts evenly and helps prevent recurring ice buildup on the evaporator.

• Secures the defrost heater to the evaporator for proper contact and heat transfer
• Promotes complete, even defrosting across the evaporator coil
• Helps reduce repeat frost/ice accumulation caused by a shifted or loose heater
• Typical clues include a loose heater, uneven frost pattern, or rattling near the evaporator

• Disconnect power and allow ice to melt before accessing the evaporator
• Use care around sharp fins and fragile refrigerant tubing; do not puncture or deform the coil
• Position the heater per your model's parts diagram and tighten the strap for firm, even contact
• Verify wiring is routed clear of the fan and moving parts before reassembly

The Defrost Thermostat is an OEM part for Frigidaire refrigerators. It monitors the temperature of the evaporator coils and activates the defrost heater when necessary. This process prevents frost buildup on the coils, ensuring the refrigerator maintains optimal cooling efficiency.

You should replace the defrost thermostat if it becomes faulty or damaged. Common causes of a bad defrost thermostat include electrical failures, regular wear and tear, or temperature fluctuations that can degrade the component over time.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup on the evaporator coils
• Refrigerator not cooling properly
• The defrost cycle not activating
• Increased energy consumption

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This compressor mounting plate secures the compressor to the refrigerator chassis, helping maintain proper alignment and reduce vibration for quieter operation. Durable stamped metal designed to fit the factory mounting points. What it does:

• Secures the compressor assembly to the appliance frame to prevent movement
• Dampens and distributes compressor vibration to reduce noise
• Maintains compressor alignment for reliable operation
• Helps keep mounting hardware and rubber isolators in correct position

• Disconnect power to the appliance before service to avoid electrical shock
• Basic hand tools required; support the compressor when removing or installing mounting hardware
• Follow the OEM service manual for torque specs and detailed installation steps

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This is a compressor used in several types of home appliances. The compressor is designed to take cold gas in the appliance and place it under pressure so the gas raises in temperature. It is then moved through the refrigerator system to ensure the unit stays cold throughout the appliance. This part can become damaged or malfunction, which may cause the motor to stop running, make the motor noisier, or cause the motor to never stop running.If this happens, the compressor will need to be replaced. A basic set of tools will be needed. A pair of work gloves can also be useful. First, locate the compressor as it may be in various locations depending on the appliance model. Unplug the appliance before removing the compressor. Install the new compressor using the original bolts and nuts before turning the power back on and resuming normal use.This part is sold on an individual basis. The compressor is made to be used with refrigerators, ranges, stoves, ovens, air conditioners, and freezers created by Gibson, Frigidaire, Kelvinator, Montgomery Wards, Westinghouse, Tappan, JCPenney, Universal, and Kenmore. It is an authentic OEM replacement part directly sourced from the manufacturer.

This hinge plug fits coffee maker hinge assemblies to cover and protect the pivot area, helping keep the hinge moving smoothly and preventing debris buildup. Simple replacement for worn or missing hinge covers. What it does:

• Covers the hinge pivot on the coffee maker to protect against dirt and spills
• Helps maintain proper hinge alignment and smooth door/lid movement
• Reduces wear on the hinge by blocking debris and moisture
• Commonly replaced when the original plug is cracked, broken, or missing

• Designed for a snap-in or press-fit installation; replace when hinge is exposed or damaged
• Disconnect power and ensure the appliance is cool before servicing near the brewing area
• Use care not to force the plug; align with the hinge pivot and press until fully seated
• If other hinge components are damaged, inspect and replace them as needed for proper function

This wheat-colored electrical plug restores a secure connection in the appliance wiring harness, helping ensure reliable power delivery to components and reducing intermittent operation or loss of function. What it does:

• Provides a secure, color-coded connection point for wiring harness terminals.
• Holds and insulates mating terminals to prevent shorts and corrosion.
• Maintains continuity to the associated component so it runs reliably.
• Common symptom: component or circuit works intermittently or not at all when the plug or its terminals are loose or damaged.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Match plug orientation and fully seat the connector until it clicks; do not force.
• Inspect wiring and terminals for damage; replace any frayed wires or corroded terminals before installing.
• After installation, restore power and verify the affected component operates normally.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This rubber grommet cushions and seals appliance components to reduce vibration and prevent wear where wiring, rods or panels pass through mounting openings. It helps keep parts aligned and protects against chafing and noise. What it does:

• Cushions and isolates vibration between moving parts and chassis
• Protects wiring, tubes or rods from rubbing and abrasion at mounting holes
• Helps reduce noise caused by contact or metal-on-metal vibration
• Aids in maintaining proper part alignment and secure fit

• Grommet

• Inspect mating hole and surrounding area for debris or sharp edges before installing
• Fit the grommet into the mounting hole so the flange seats evenly on both sides
• Replace any damaged or excessively worn grommets to restore protection
• Disconnect power and follow appliance safety procedures before attempting service

Optional flexible ice tray for those that dont have an icemaker

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Color: White
